EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 230
Confidential

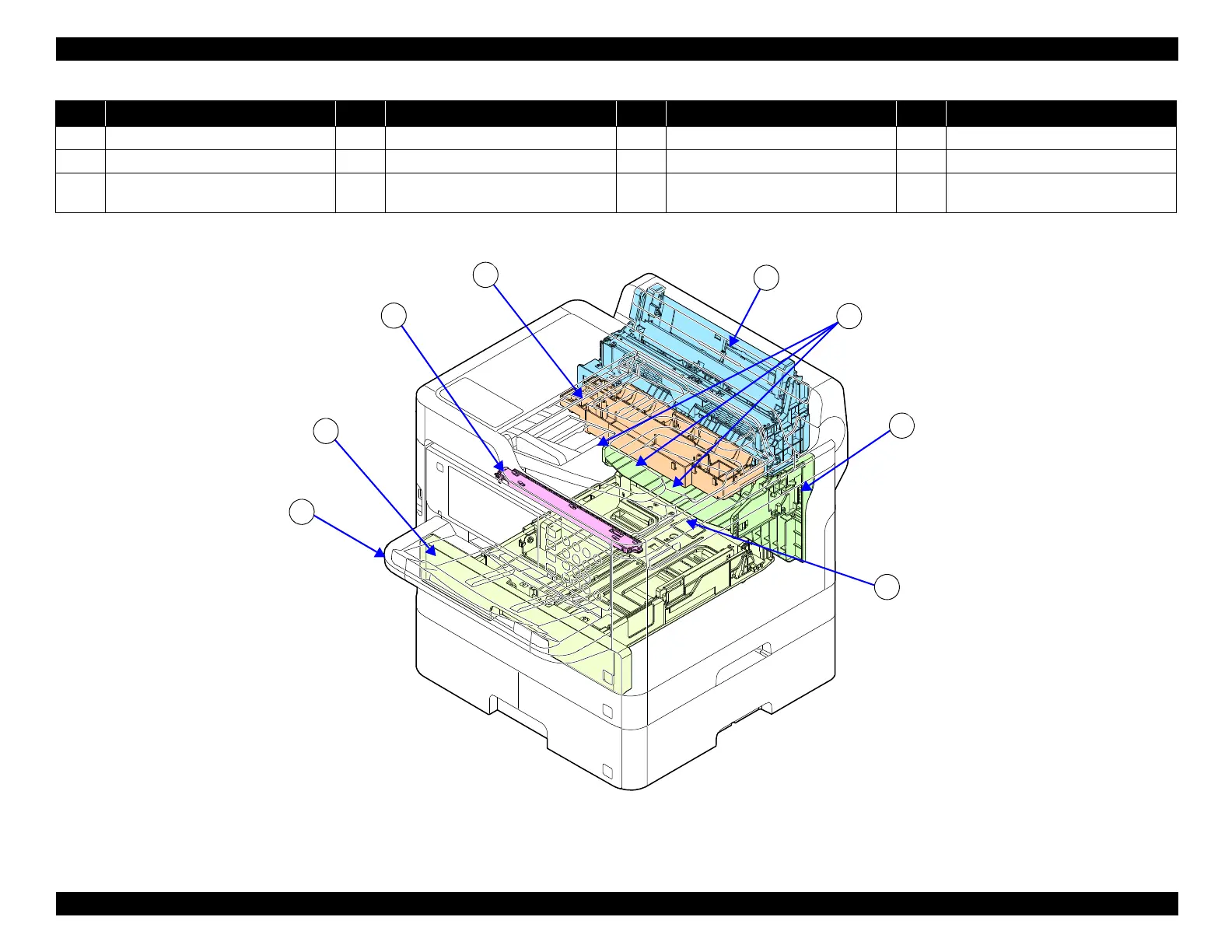

Figure 6-11. Paper Feed Mechanism (1)
No. Part/Component No. Part/Component No. Part/Component No. Part/Component
1 Stacker Assy (p. 439) 4 Paper Feed Sensor Unit (p. 439) 7 Rear Unit (p. 453) 10 ---
2 Paper Cassette 1st Assy (p. 453) 5 Rear ASF Assy (p. 458) 8 Paper Guide Upper Assy (p. 468) 11 ---
3 Star Wheel Unit (p. 439) 6
Paper Guide Upper Assy Spring (p.
468)
9 --- 12 ---
1
4
7
2
3
5
6
8
