EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 229
Confidential

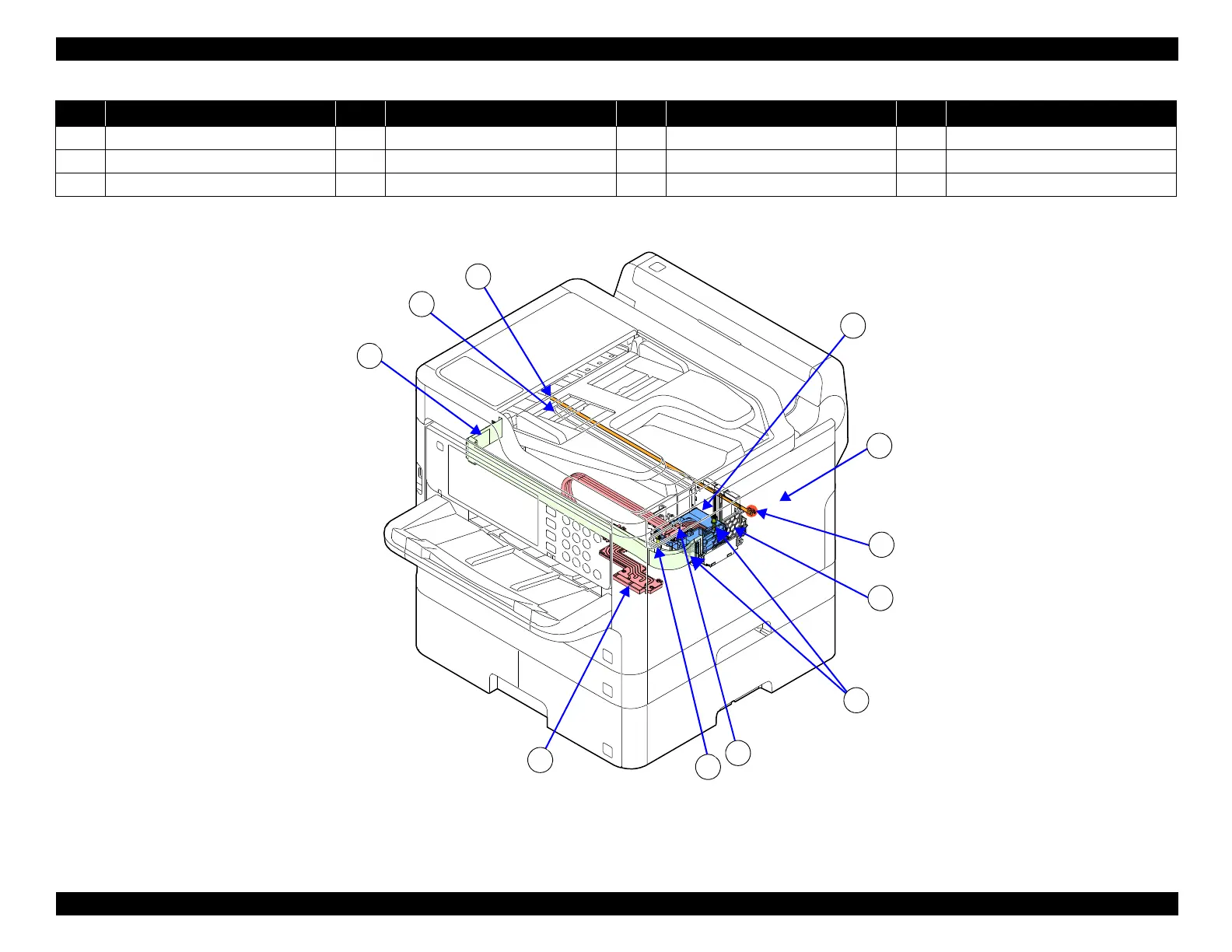

Figure 6-10. Carriage Mechanism
No. Part/Component No. Part/Component No. Part/Component No. Part/Component
1 Head FFC Assy (p. 403) 4 Printhead (p. 403) 7 CR Unit (p. 417) 10 Seal Joint Head (p. 389)
2 CR Driven Pulley Assy (p. 417) 5 CR Motor (p. 417) 8 Head Screw Assy (p. 403) 11 ---
3 CR Scale (p. 389) 6 Extension Spring 11.11 (p. 389) 9 Ink Supply Tube (p. 389) 12 ---
1
3
7
9
8
4
6
10
8
5
2
