EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 233
Confidential

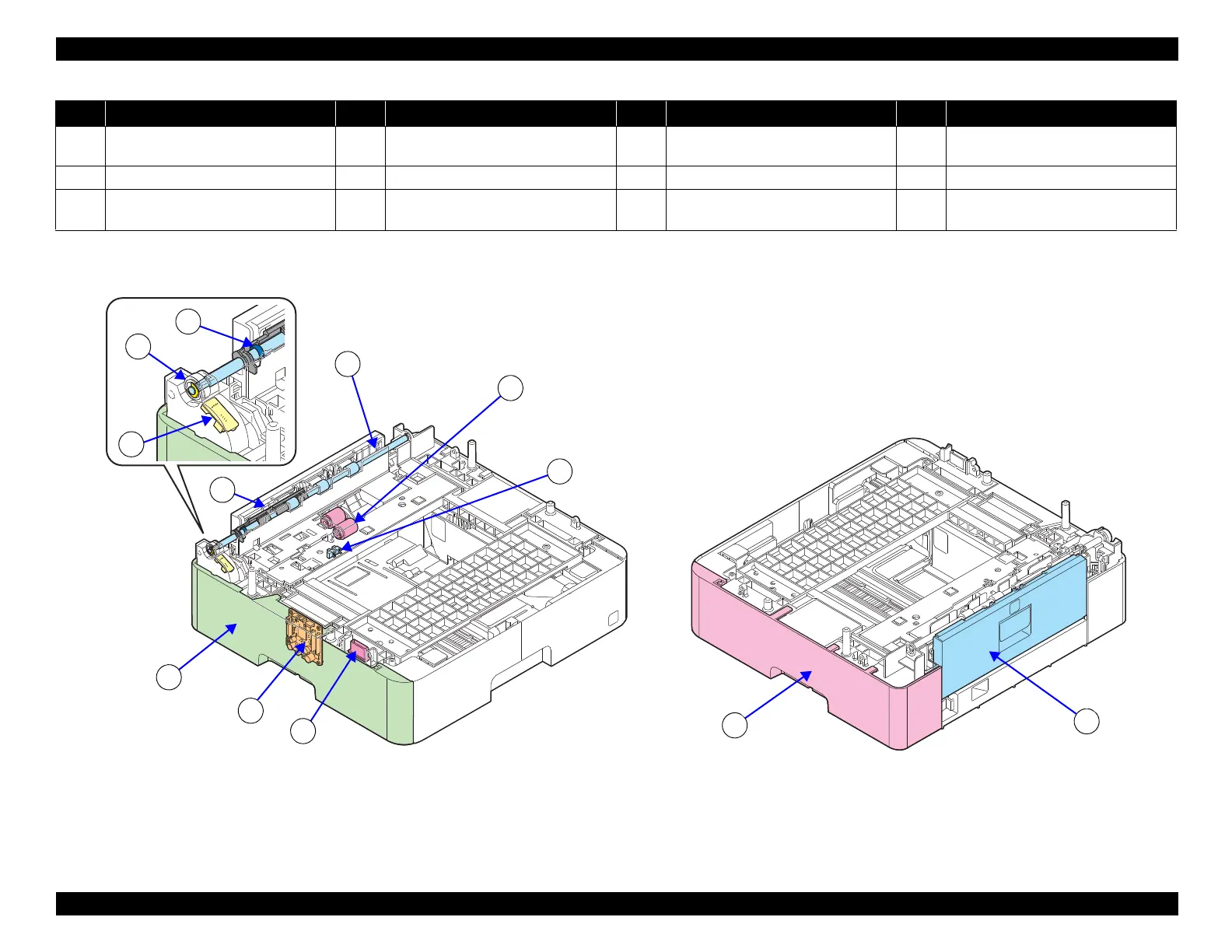

Figure 6-14. Optional Paper Cassette Unit (1)
No. Part/Component No. Part/Component No. Part/Component No. Part/Component
1
Optional Paper Cassette Left Cover (p.
534)
4 E-ring (plastic) (p. 526) 7 Separation Roller (p. 526) 10
Optional Paper Cassette Right Cover
(p. 534)
2 Paper Feed Detector Lever (p. 526) 5 Torsion Spring 0.9 (p. 526) 8 Photo Interrupter (p. 534) 11 Drawer Connector (female) (p. 534)
3 ASF Encoder Assy (p. 534) 6 Vertical Feed Roller (p. 526) 9 Rear Back Cover (p. 526) 12
Optional Paper Cassette Main Board
Assy (p. 534)
9
1
6
7
10
2
4
5
3
12
8
11
