Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 247
Confidential

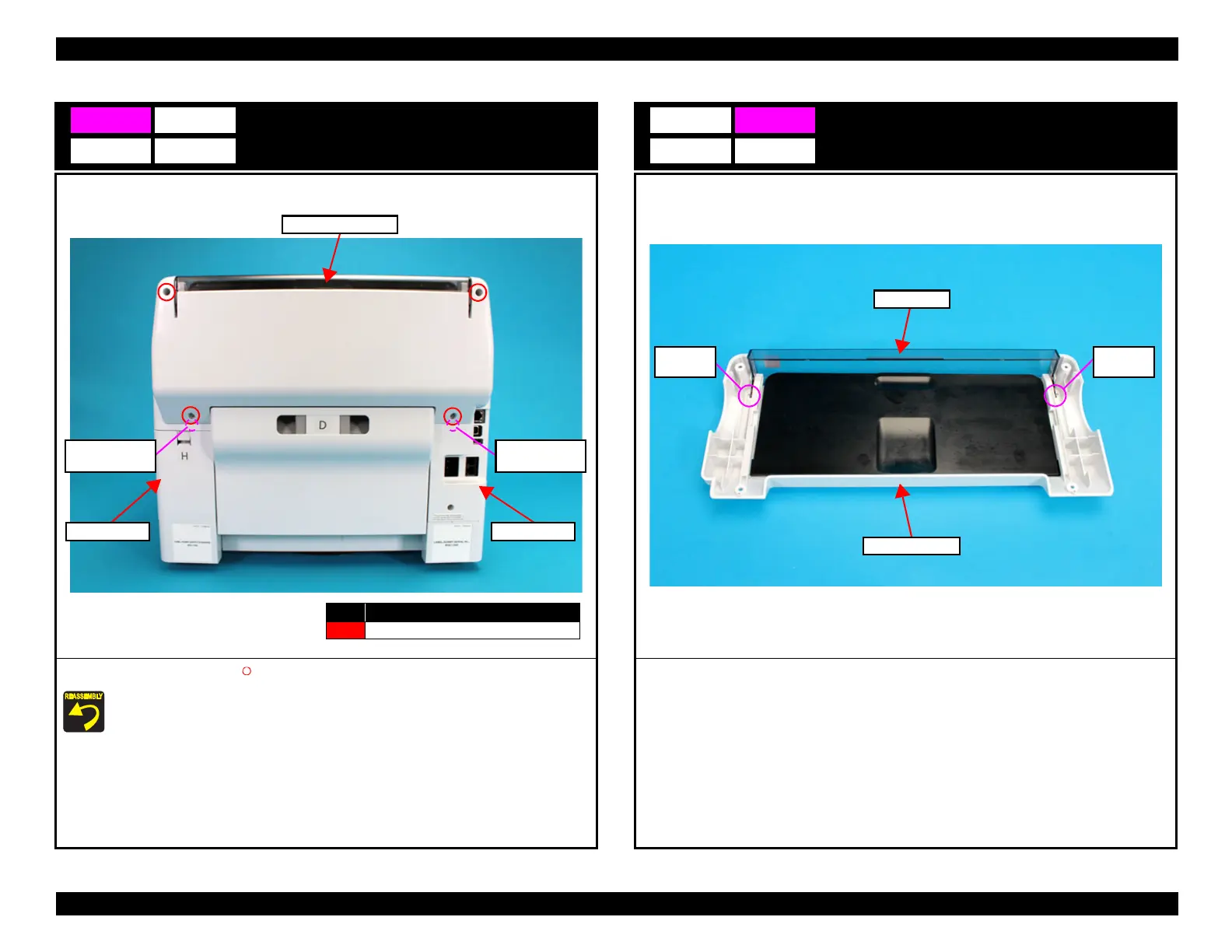

Rear Cover (Back)
1. Remove the four screws (S4: ), then remove the Rear Cover (Back).
Attach the two dowels of the Rear Cover (Back) to the positioning holes on the
Housing Left and Housing Right.
A1 B1
C1 D1
Rear Cover (Back)
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Dowel and
positioning hole
Housing Right Housing Left
Dowel and
positioning hole
ASF Cover
1. Release the two shafts of the ASF Cover from the grooves on the Rear Housing, then
remove the ASF Cover.
B2
D2
ASF Cover
Shaft and
groove
Rear Housing
Shaft and
groove
