EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 248
Confidential
Paper Guide

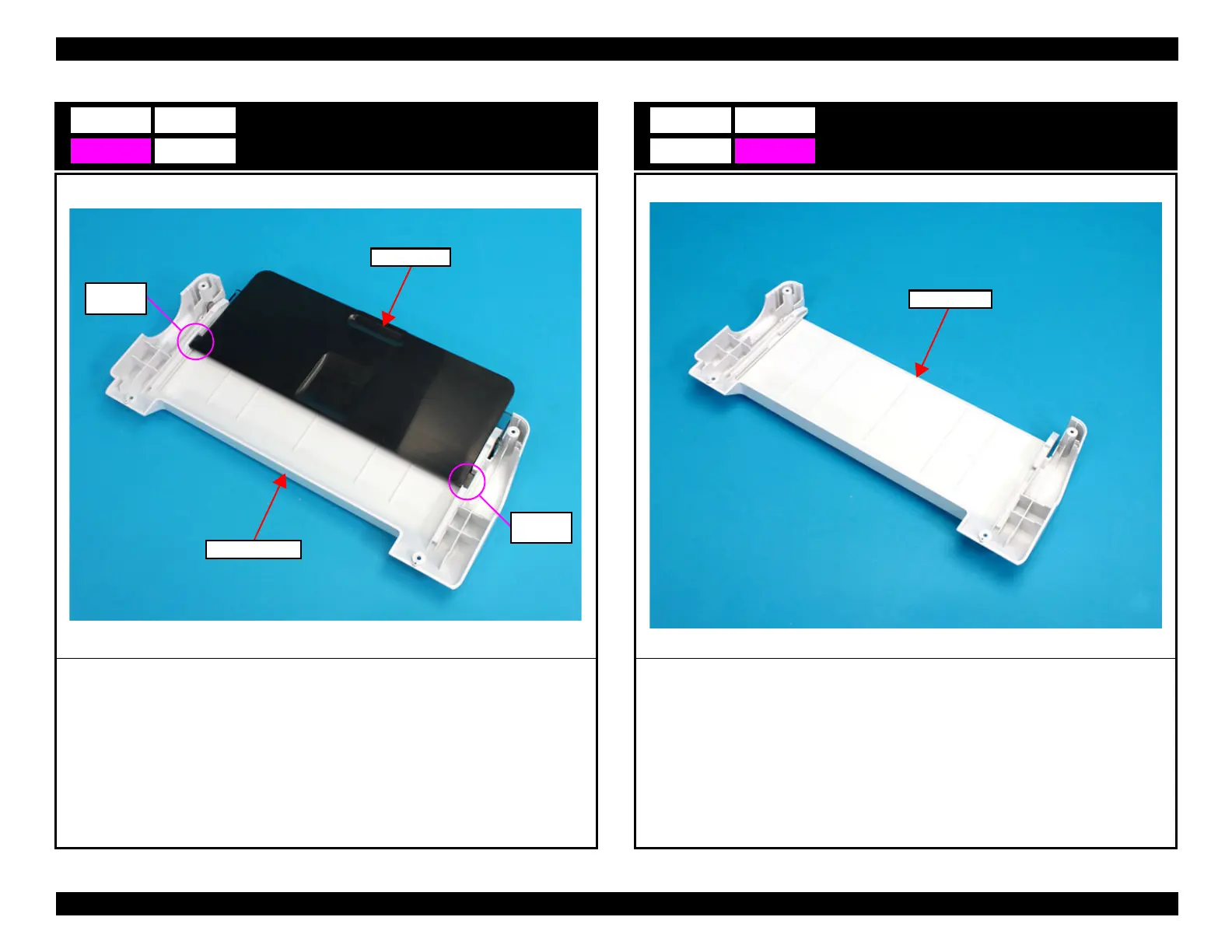

1. Release the two tabs of the Paper Guide from the grooves on the Rear Housing, then remove
the Paper Guide.
C2 D3
Paper Guide
Rear Housing
Tab and
groove
Tab and
groove
Housing Rear
D4
Rear Housing
