EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 257
Confidential

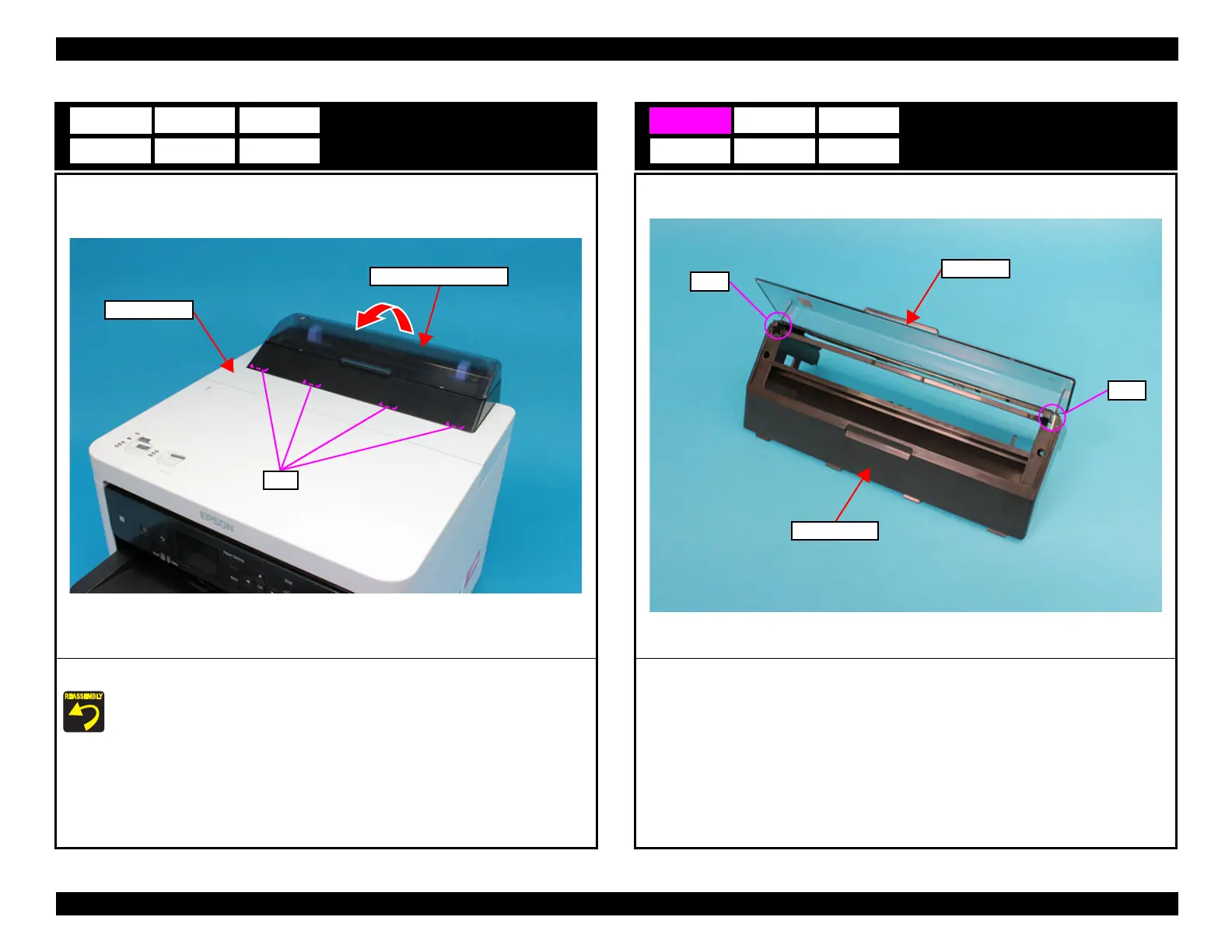

Rear Upper Cover Assy
1. Remove the Rear Upper Cover Assy in the direction of the arrow.
Insert the four tabs of the Rear Upper Cover Assy to the positioning holes of the
Housing ASF.
A2 B2
D2 E2
C2
F2
Rear Upper Cover Assy
Housing ASF
Tabs
ASF Cover
1. Disengage two shafts of the ASF Cover from the holes of the Housing Rear, then remove
the ASF Cover.
A3 C3
ASF Cover
Shaft
Housing Rear
Shaft
