EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 256
Confidential

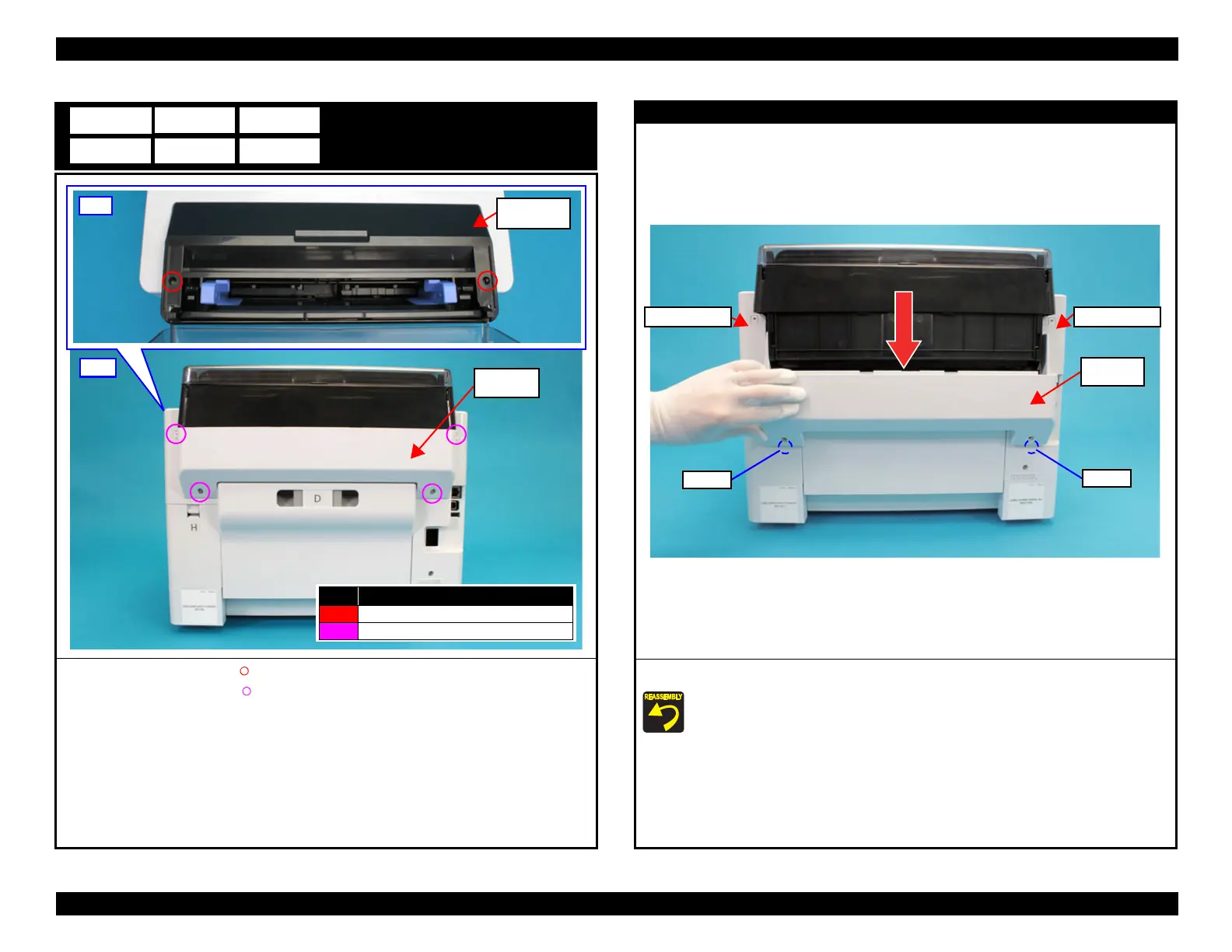

Rear Back Cover
1. Remove the two screws (S4: ) that secure the Rear Upper Cover Assy.
2. Remove the four screws (S4: ) that secure the Rear Back Cover.
A1 B1
D1 E1
C1
F1
Rear Back
Cover
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Rear Upper
Cover Assy
Top
Rear
Rear Back Cover
3. Remove the Rear Back Cover downward.
Attach the two dowels of the Rear Back Cover to the positioning holes on the Housing
Left and the Housing Right.
Dowel
Housing LeftHousing Right
Rear Back
Cover
Dowel
