Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 267
Confidential

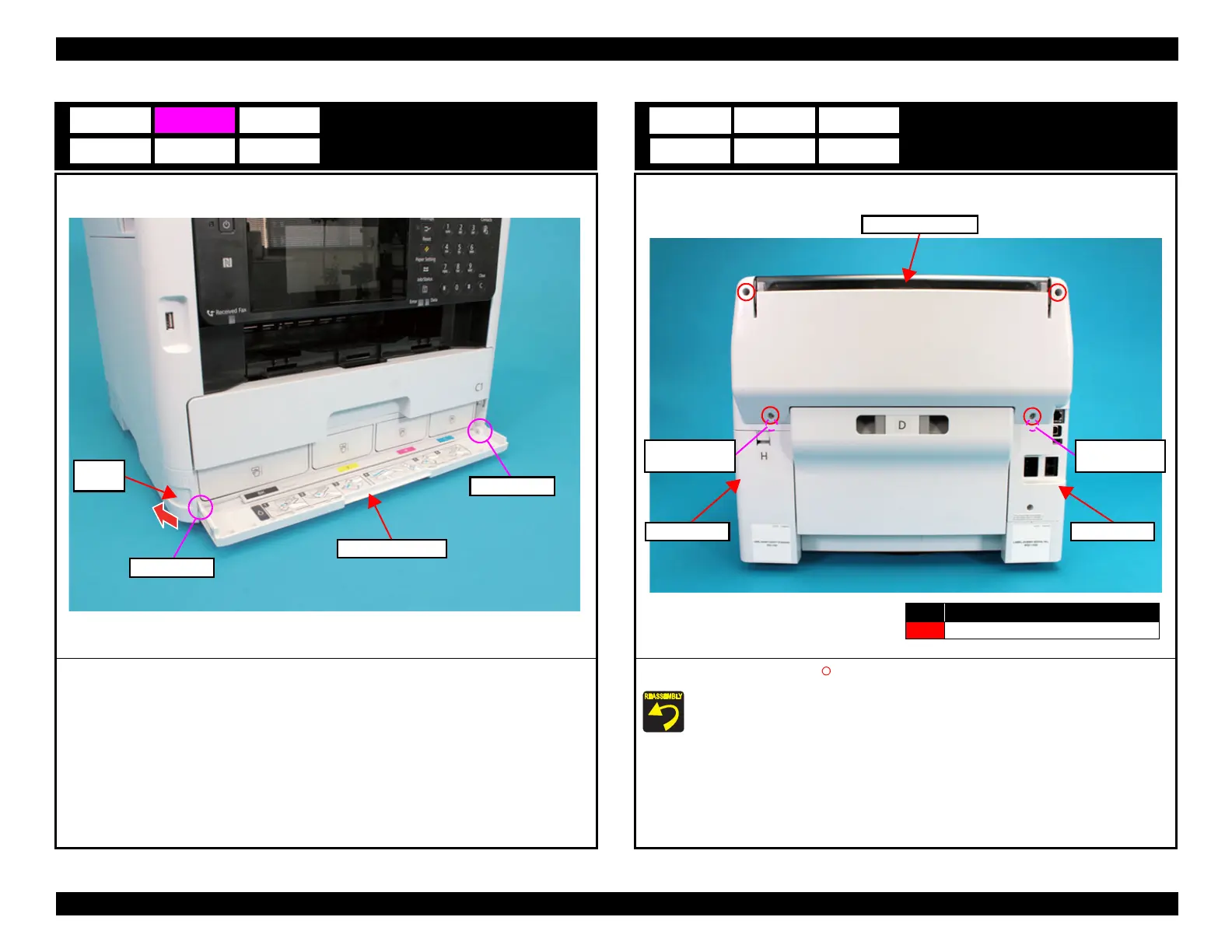

RIPS Front Cover
1. Move the Lock Lever in the direction of the arrow, then open the RIPS Front Cover.
2. Take out the two axes from the housing holes while bending the RIPS Front Cover, and
then remove the RIPS Front Cover.
B1
Lock
Lever
RIPS Front Cover
Shaft and hole
Shaft and hole
Rear Cover (Back)
1. Remove the four screws (S4: ), then remove the Rear Cover (Back).
Attach the two dowels of the Rear Cover (Back) to the positioning holes on the
Housing Left and Housing Right.
D1 E1
C1
F1
Rear Cover (Back)
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Dowel and
positioning hole
Housing Right Housing Left
Dowel and
positioning hole

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
