Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 289
Confidential
Ink Supply Unit

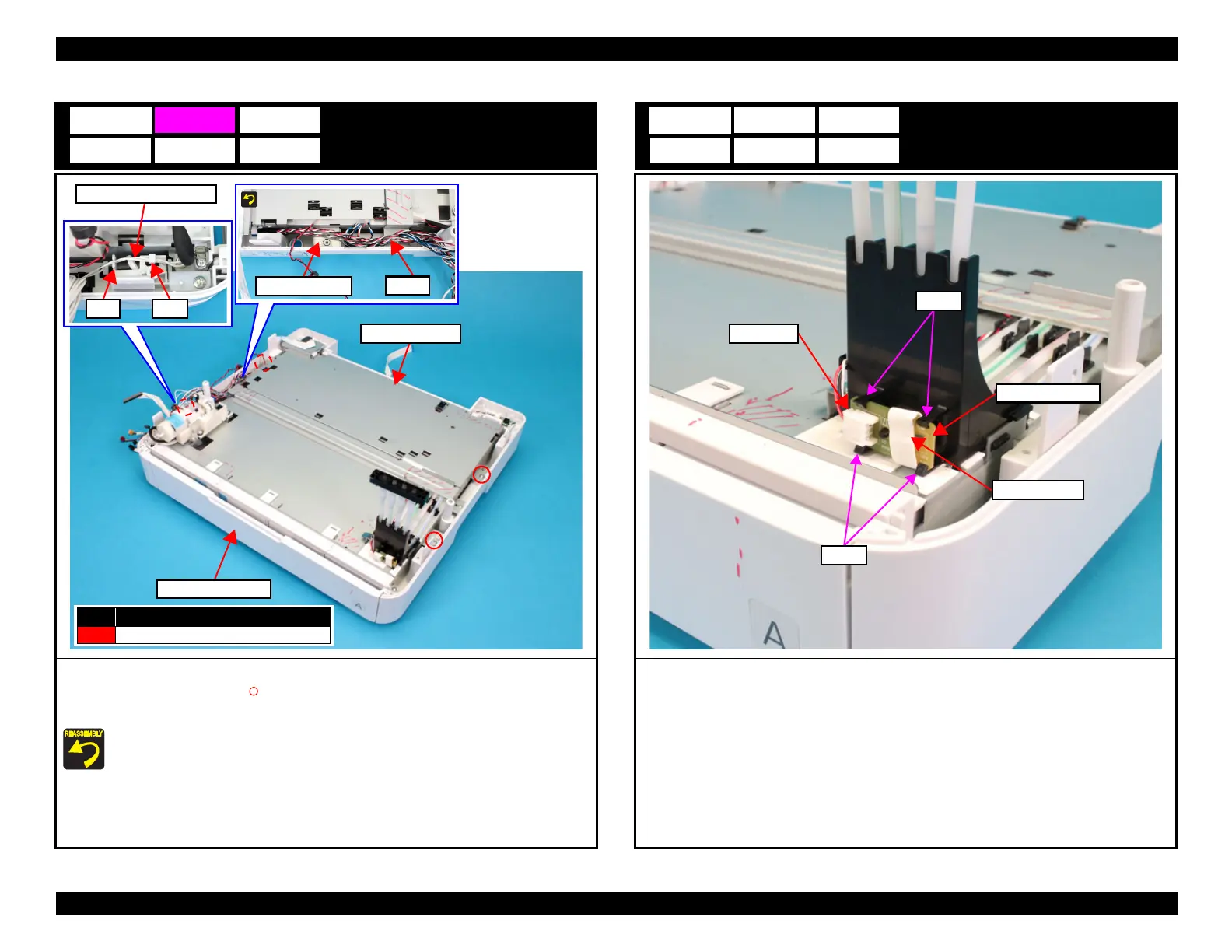

1. Release the cover open sensor cable from the slit and hook on the Ink Supply Housing.
2. Remove the four screws (S11: ), then remove the Ink Supply Unit from the Ink Supply
Housing.
Route the cables of the Ink Supply Unit on the frame of the Ink Supply Unit.
B13
E13
C13
No. Screw Type
S11
C.C.P-TITE-SCREW-3x8-F.ZN-3C
Hook
Slit
Cable
Ink Supply Unit
Cover open sensor cable
Ink Supply Unit
Ink Supply Housing
Ink Leak Sensor
1. Disconnect the cable from the connector.
2. Remove the Ink Porous Pad from the Ink Leak Sensor.
3. Disengage four hooks, then remove the Ink Leak Sensor.
D13
F13
Ink Porous Pad
Connector
Ink Leak Sensor
Hooks
Hooks
