Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 290
Confidential
RIPS Unit Lower

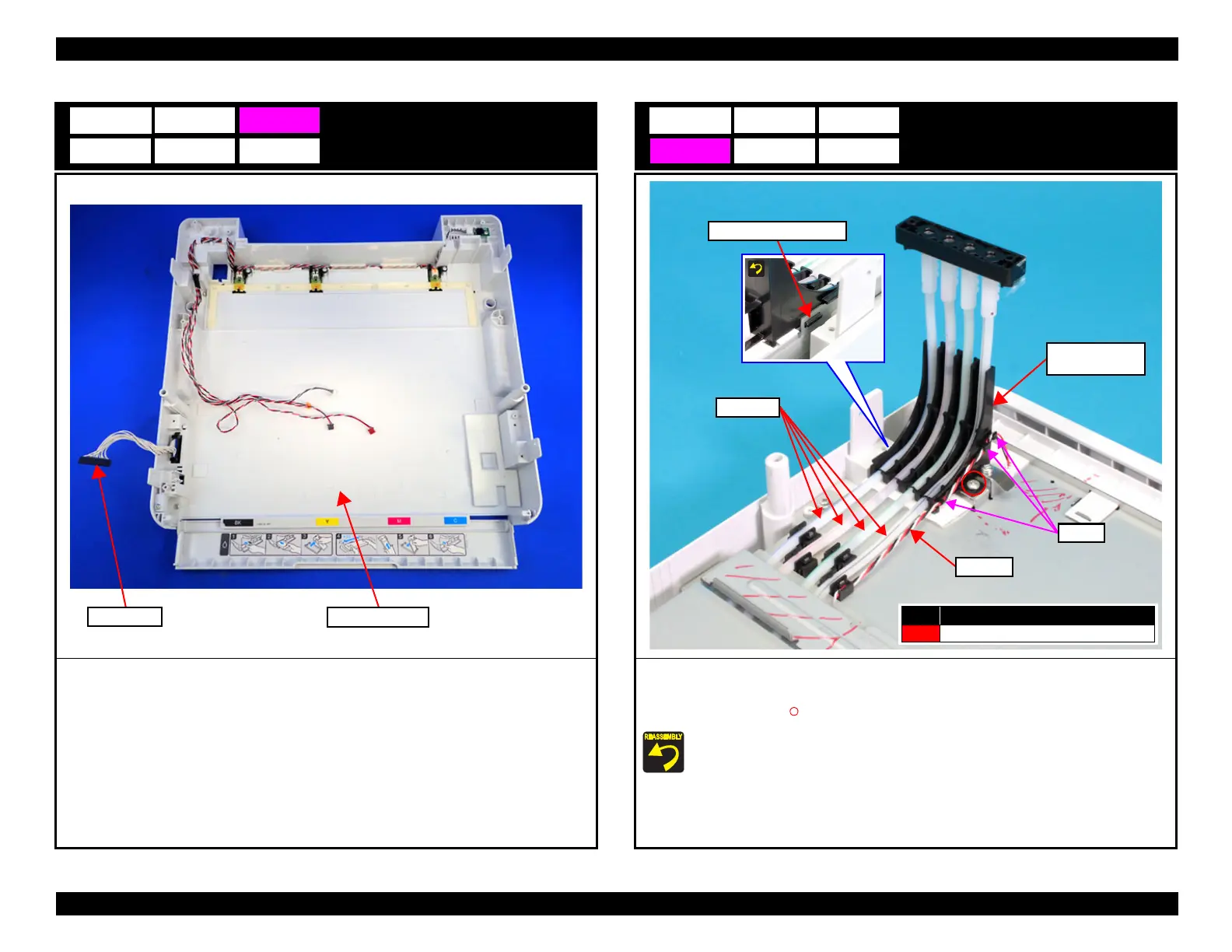

1. Remove the Relay Cable from the RIPS Unit Lower.
E14
C14
Relay Cable
RIPS Unit Lower
Ink Tube Guide Holder
1. Release the cable from the three hooks on the Ink Tube Guide Holder.
2. Release the four Ink Tube from the Ink Tube Guide Holder.
3. Remove the screw (S5: ), then remove the Ink Tube Guide Holder.
Attach the tab of the Ink Tube Guide Holder to the positioning hole of the frame.
D14
F14
No. Screw Type
S5
C.B.S-TITE-SCREW-3x6-F.ZN-3C
Ink Tube Guide
Holder
Cable
Hooks
Ink Tube
Tab and positioning hole

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
