Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 291
Confidential

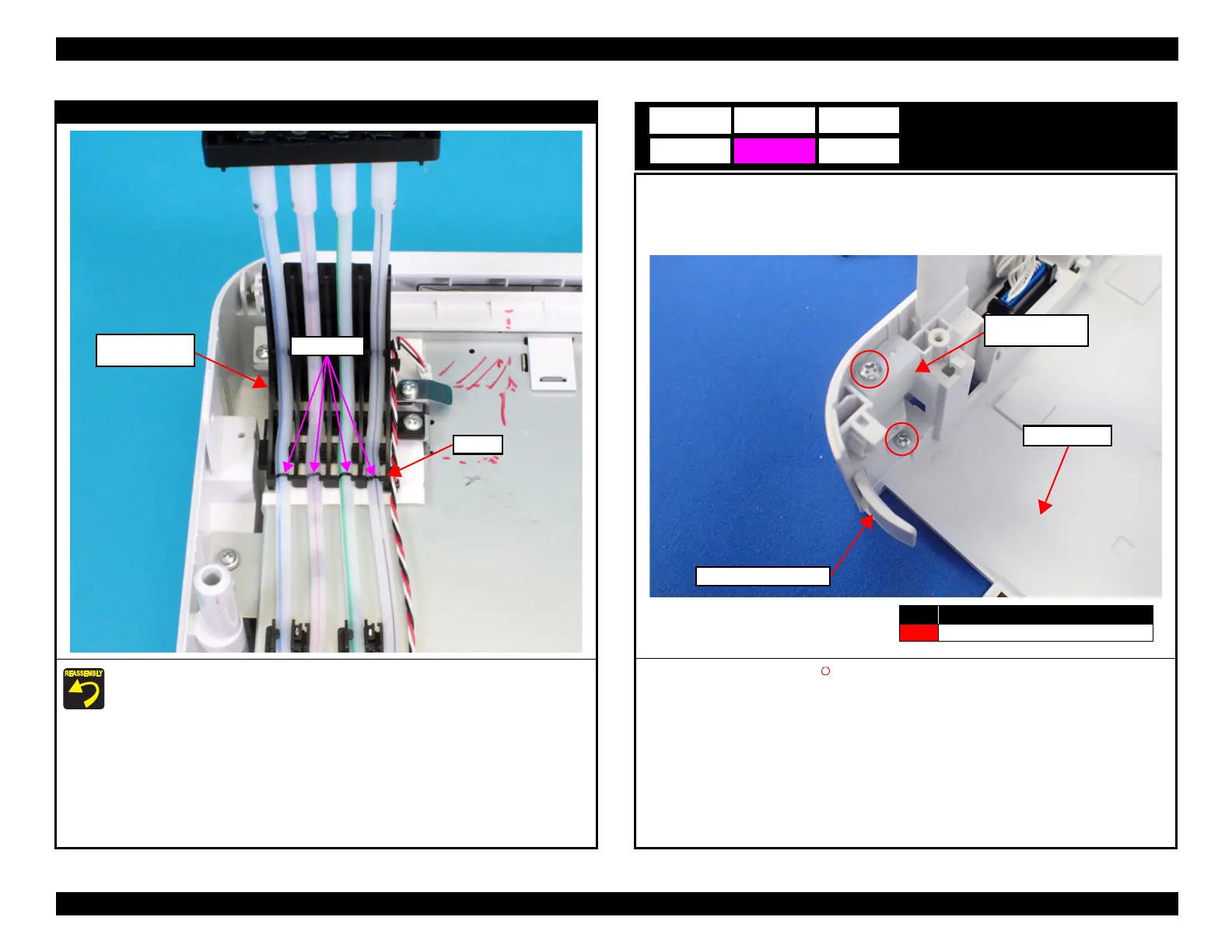

Ink Tube Guide Holder
Align the marking on the ink tubes with the guide of the Ink Tube Guide Holder
shown in the figure above.
Guide
Marking
Ink Tube Guide
Holder
RIPS Cover Lock Lever
1. Remove the two screws (S4: ), then remove the RIPS Cover Lock Lever Holder and RIPS
Cover Lock Lever.
E15
RIPS Cover Lock Lever
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
RIPS Cover Lock
Lever Holder
RIPS Housing
