Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 304
Confidential

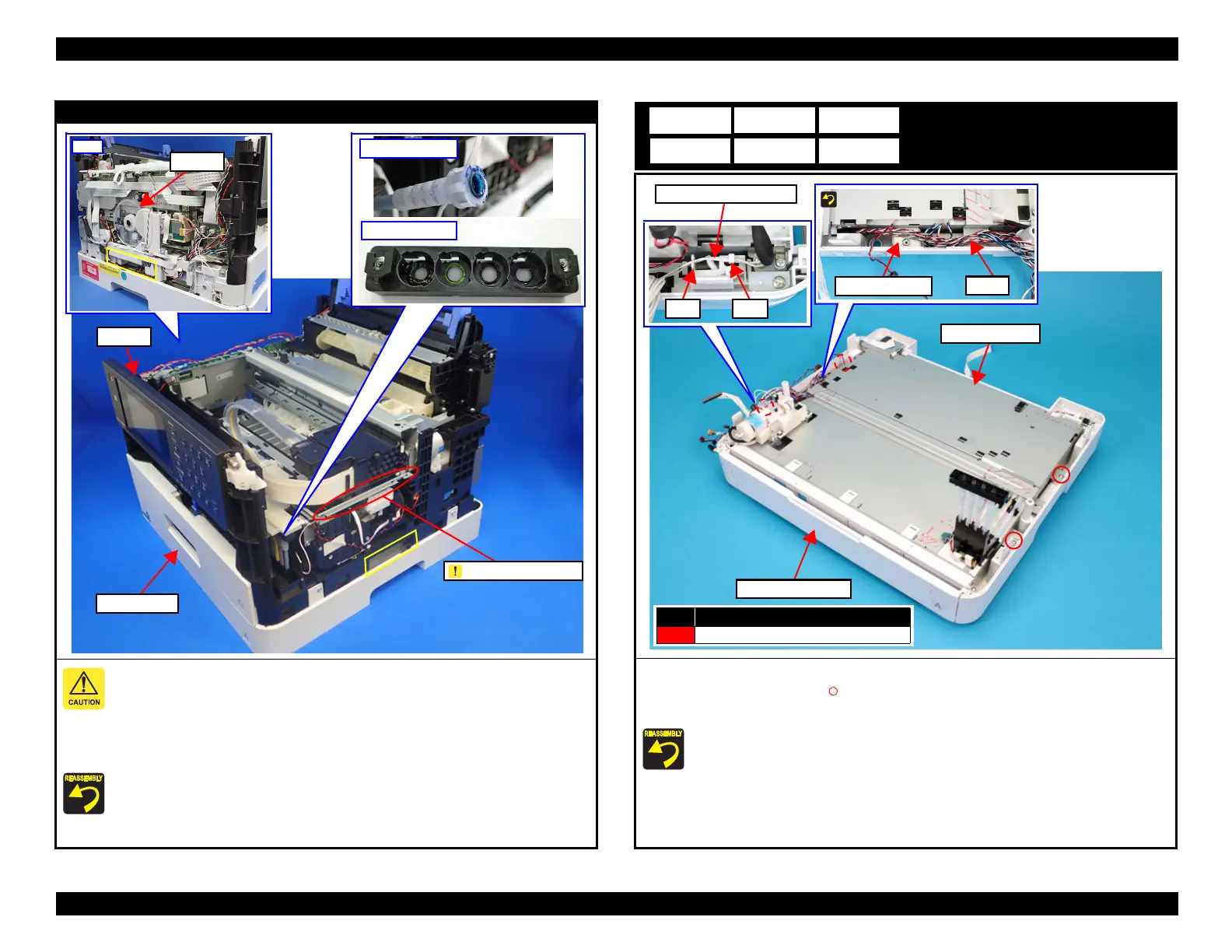

RIPS Unit
 When lifting the main body, you wear gloves. Because there is a danger of cutting hands with
the sharp metal enclosed by red circles,
 Lift carefully so as not to touch the PF scale on the left side of the main body. If you touch the
PF scale, clean it with a clean cloth.
6. Grasp the handle of the yellow square part on the left and right sides of the main body and
lift it vertically.
Make sure all the ink tubes are properly secured at the joints. If not, insert the rib on
the tube into the joint in place and secure the tube properly by turning it
counterclockwise.
RIPS Unit
Printer
Beware of sharp edges
Joint of ink tube
Bottom of joint
PF scale
Left
Ink Supply Unit
1. Release the cover open sensor cable from the slit and hook on the Ink Supply Housing.
2. Remove the four screws (S11: ), then remove the Ink Supply Unit from the Ink Supply
Housing.
Route the cables of the Ink Supply Unit on the frame of the Ink Supply Unit.
A13 B13
D13
C13
No. Screw Type
S11
C.C.P-TITE-SCREW-3x8-F.ZN-3C
Hook
Slit
Cable
Ink Supply Unit
Cover open sensor cable
Ink Supply Unit
Ink Supply Housing

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
