Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 305
Confidential

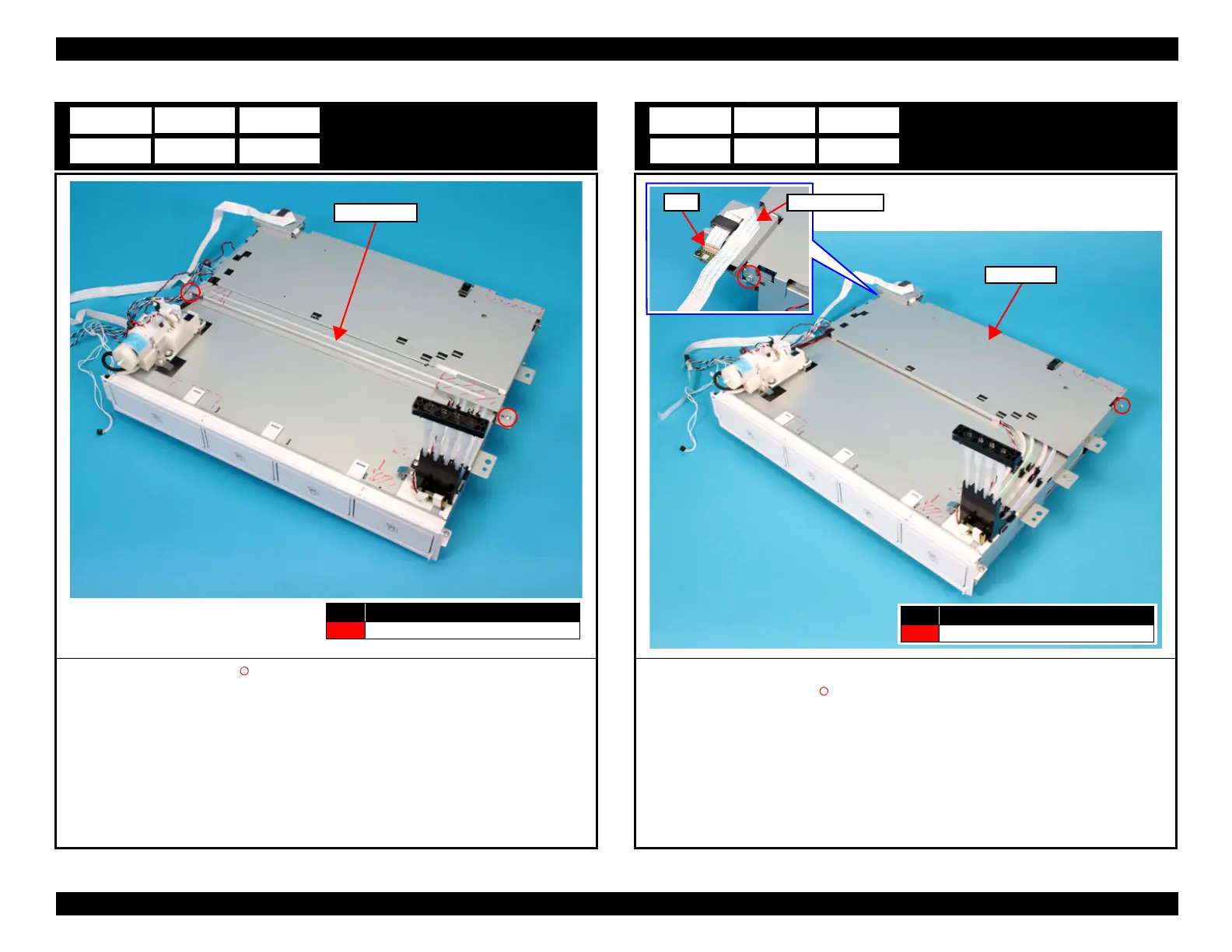

Pressing Plate
1. Remove the two screws (S5: ), and remove the Pressing Plate.
A14 B14
D14
C14
Pressing Plate
No. Screw Type
S5
C.B.S-TITE-SCREW-3x6-F.ZN-3C
Upper Plate
1. Disconnect the Ink Sensor FFC from the connector (CN1) on the Ink Sensor YMCBk.
2. Remove the two screws (S5: ), and remove the Upper Plate.
A15 B15
D15
C15
No. Screw Type
S5
C.B.S-TITE-SCREW-3x6-F.ZN-3C
Upper Plate
CN1
Ink Sensor FFC
