EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 307
Confidential

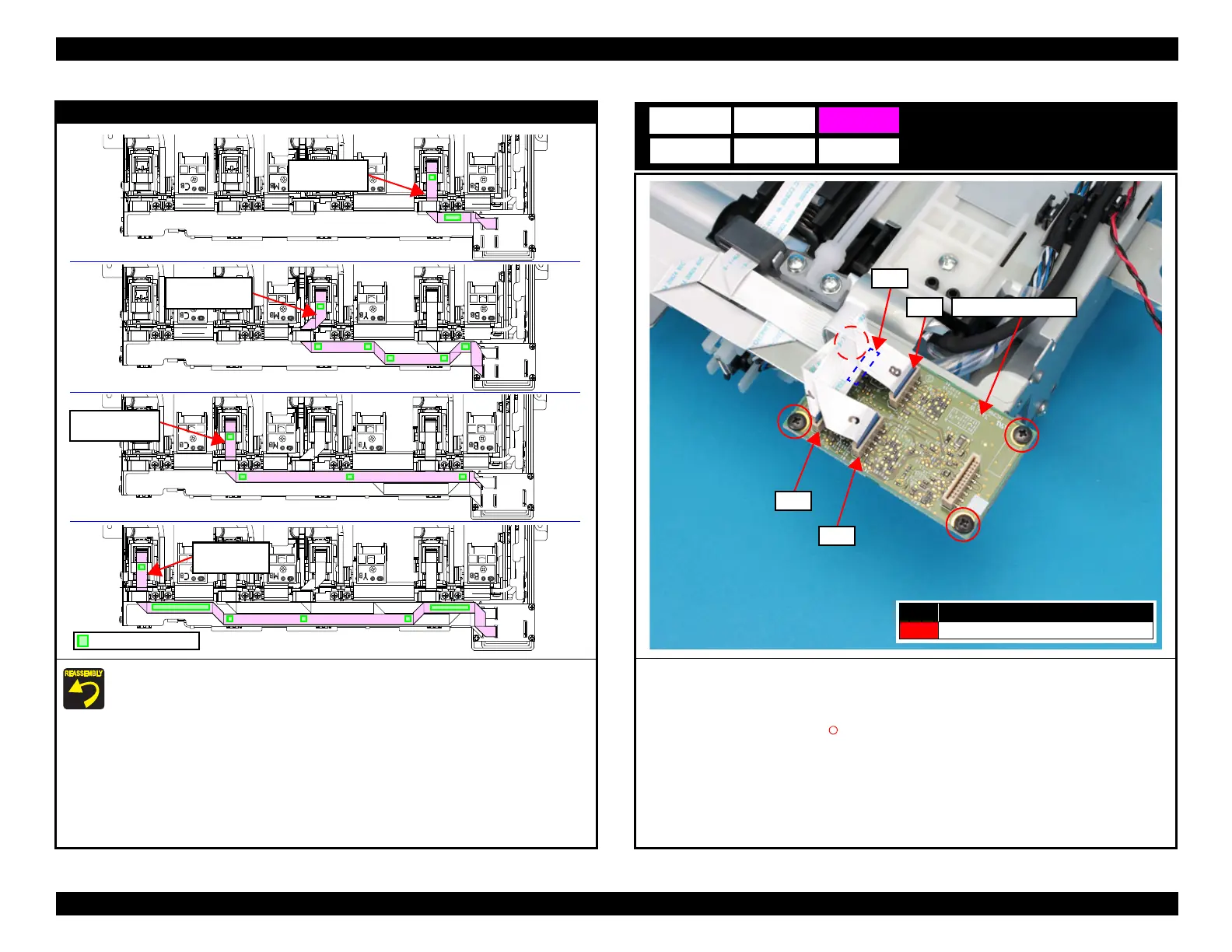

CSIC Board FFC
Secure the CSIC Board FFC on the position shown above with double-sided tape.
CSIC Board
FFC (Black)
CSIC Board
FFC (Yellow)
CSIC Board
FFC (Magenta)
CSIC Board
FFC (Cyan)
Double-sided tape
Ink Sensor YMCBk
1. Disconnect the Cartridge Detection FFC from the connector on the Ink Sensor YMCBk.
2. Remove the four screws (S12: ), then remove the Ink Sensor YMCBk.
C16
No. Screw Type
S12
C.B.S-TITE SCREW, 2.5X4,F/ZB-3C
Ink Sensor YMCBk
CN5
CN4
CN2
CN3
Black: CN2 Magenta: CN3 Yellow: CN4 Cyan: CN5

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
