Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 324
Confidential

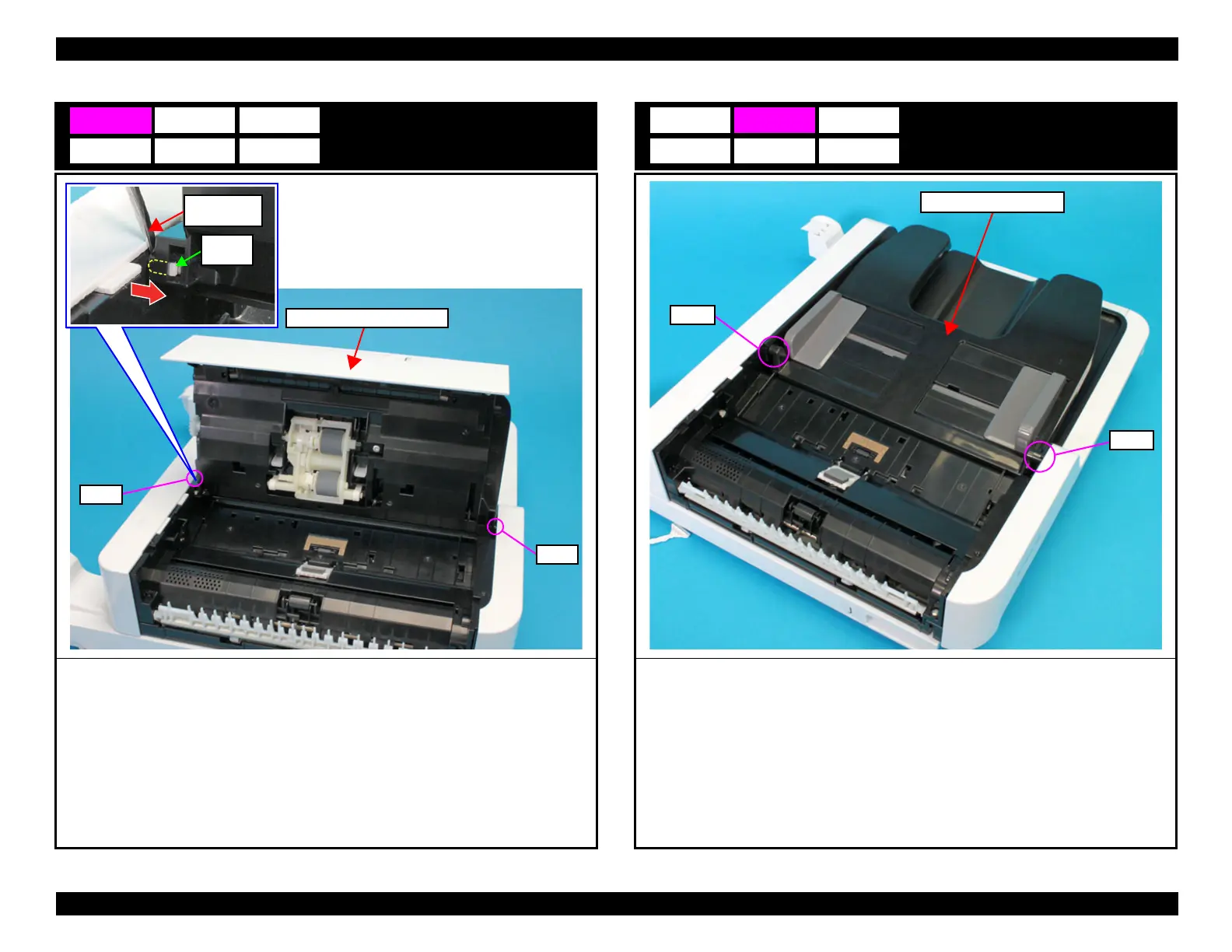

ADF Paper Feed Roller Unit
1. Open the ADF Paper Feed Roller Unit.
2. Disengage the two dowels, one each on the left and right sides, while pressing the dowel
(white) with a flathead screwdriver, and then remove the ADF Paper Feed Roller Unit.
A8 B7
D7 E7
C7
F7
ADF Paper Feed Roller Unit
Dowel
Dowel
(White)
Flathead
screwdriver
Dowel
ADF Document Support
1. Disengage the two dowels of the ADF Document Support while bending it, then remove the
ADF Document Support.
B9
ADF Document Support
Dowel
Dowel

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
