Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 325
Confidential

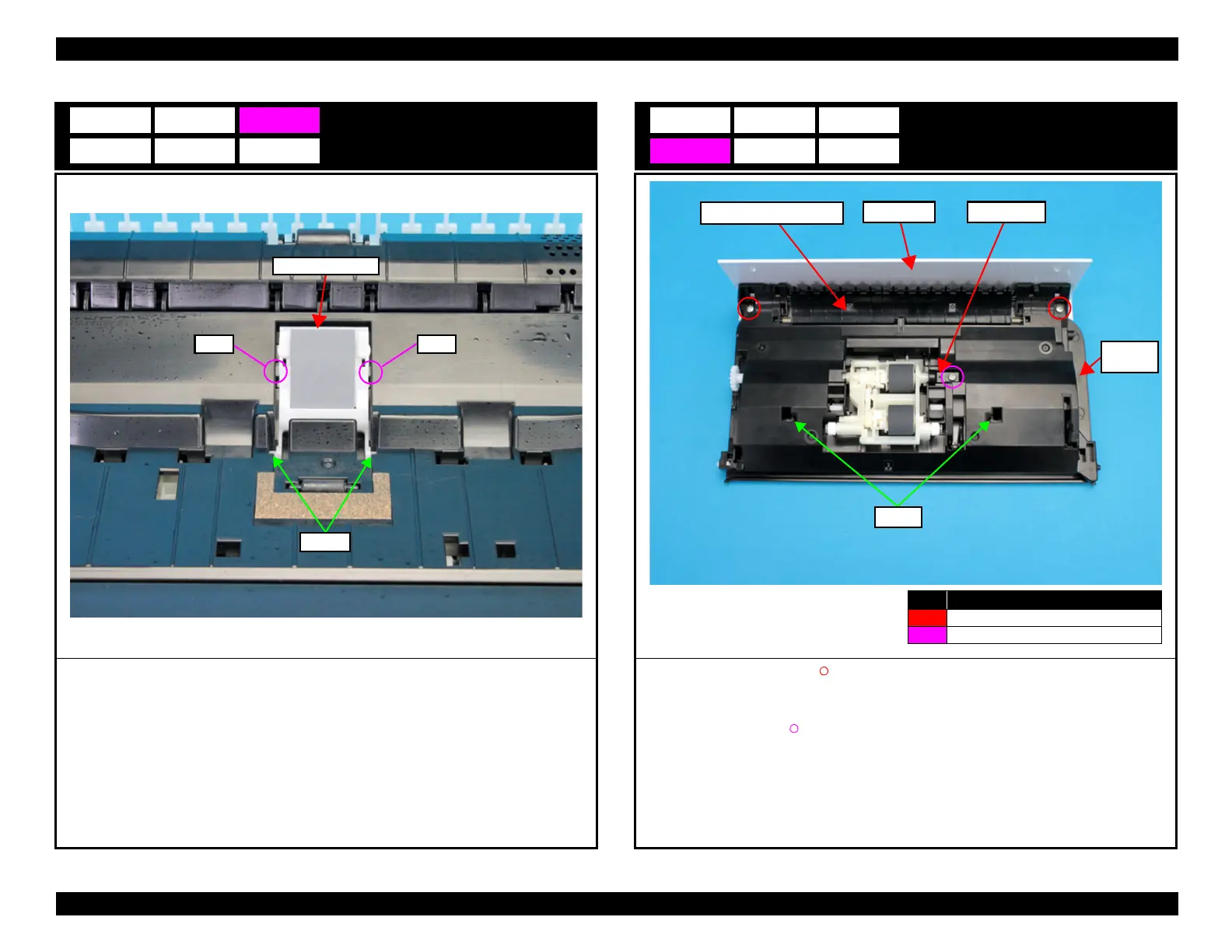

ADF Pad Assy
1. Disengage two hooks of the ADF Separate Pad.
2. Disengage two dowels of the ADF Separate Pad, then remove the ADF Separate Pad.
E9
C9
ADF Separate Pad
Hook
Hook
Dowels
ADF Roller Spring
1. Remove the two screws (S4: ) that secure the ADF Upper Paper Guide.
2. Disengage two hooks, and remove the ADF Upper Paper Guide from the ADF Cover and
ADF Sub Cover.
3. Remove the screw (S4: ), then remove the Fixing Plate.
D9
F9
ADF Upper Paper Guide
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
ADF Cover
ADF Sub
Cover
Hooks
Fixing Plate

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
