EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 331
Confidential

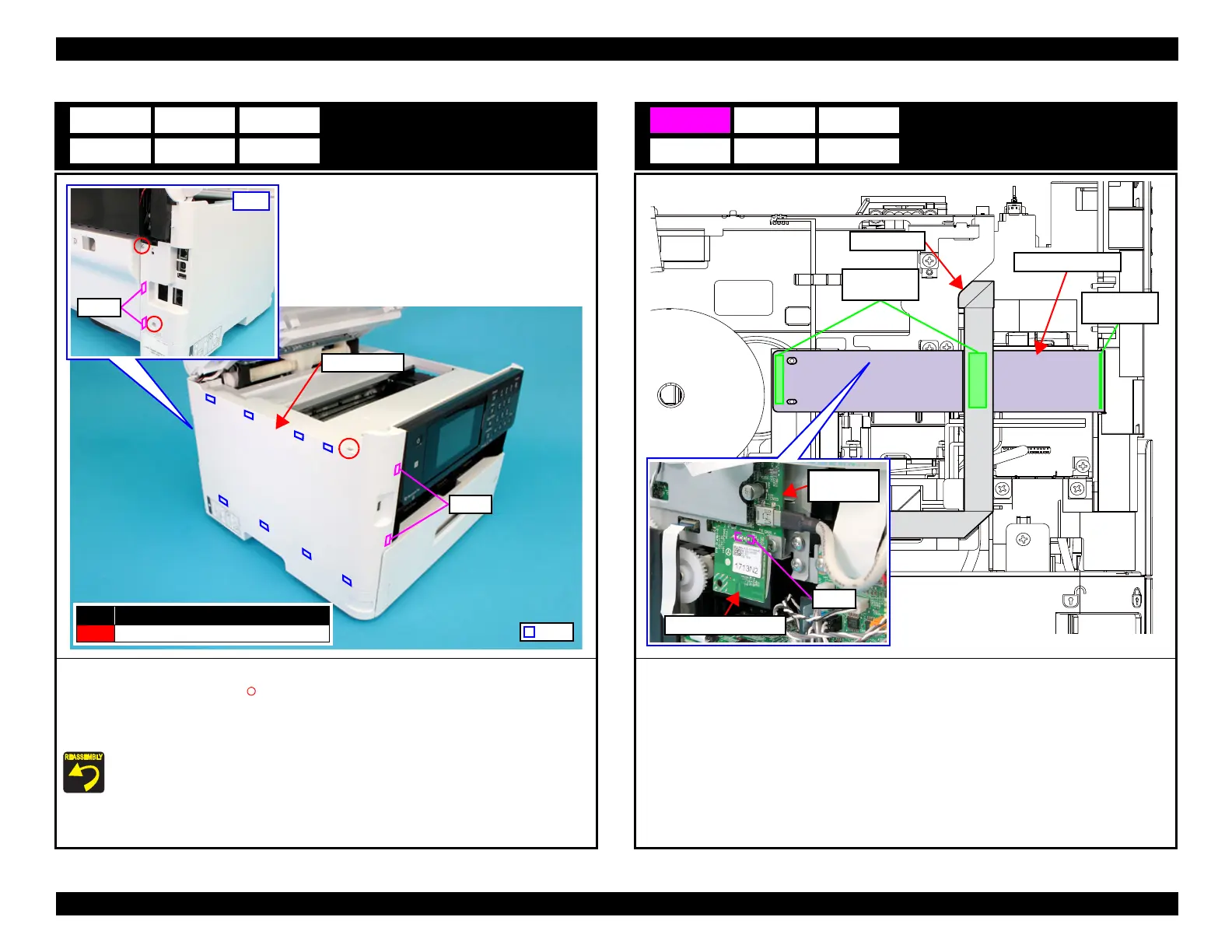

Housing Left
1. Open the ADF/SCN Unit.
2. Remove the three screws (S4: ) that secure the Housing Left.
3. Lift the Housing Left to release the two hooks on the front side of the Housing Left.
4. Disengage two hooks on the rear side of the Housing Left, and remove the Housing Left.
Insert the eight tabs on the Housing Left to the positioning hokes of the Housing
Upper and the Ink Supply Unit.
A3 B3
D3 E3
C3
F3
Housing Left
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Hooks
Rear
Hooks
Tab
Wireless Lan Module
1. Peel off the CRCM FFC from the CRCM FFC Sheet.
2. Peel off the CRCM FFC Sheet.
3. Disconnect the Wireless Lan Module from the connector (CN31) on the Main Board Assy.
A4
Wireless Lan Module
Main Board
Assy
CN31
CRCM FFC
CRCM FFC Sheet
Double-sided
tape
Double-sided
tape
