EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 332
Confidential

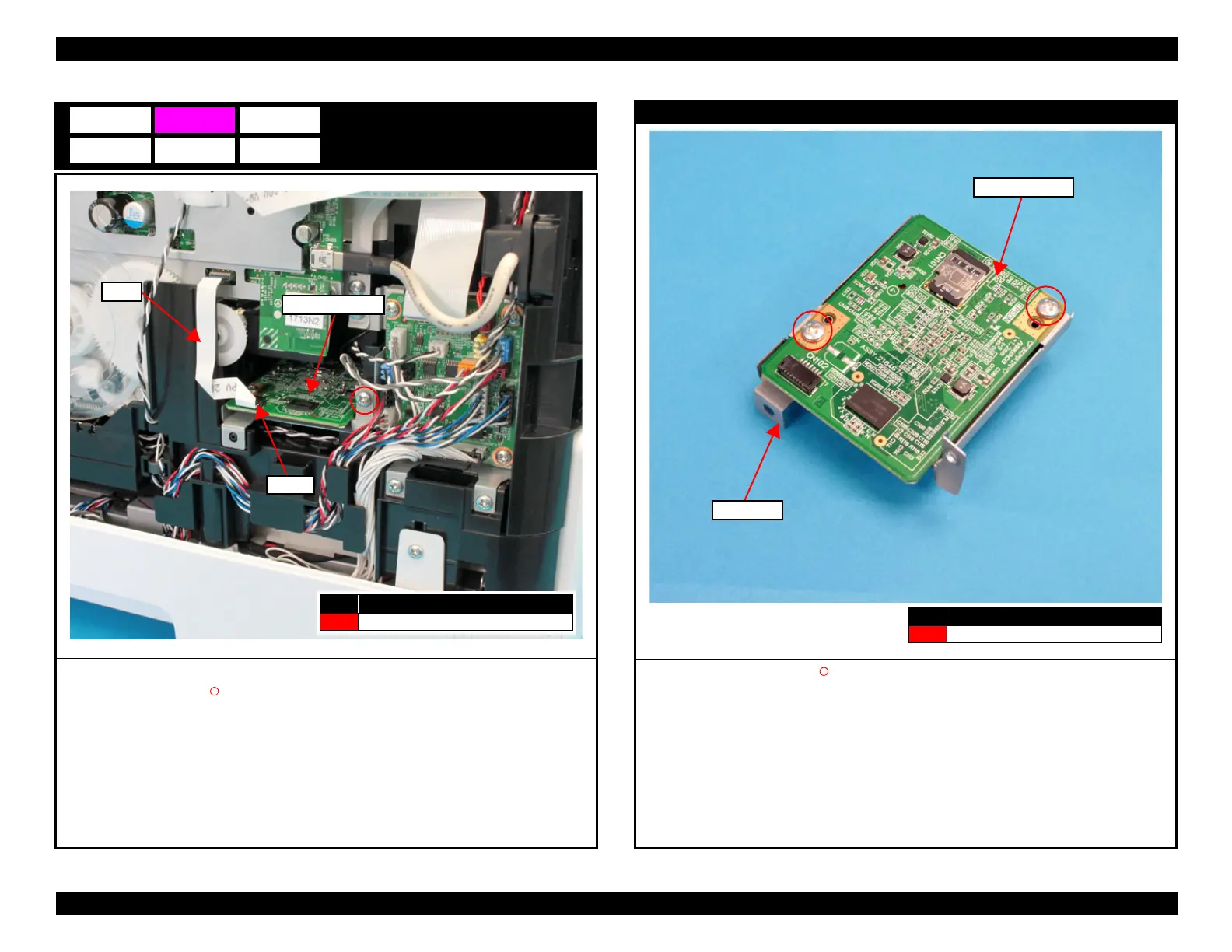

PDL Board Assy
1. Disconnect the FFC from the connector (CN102) on the PDL Board Assy.
2. Remove the screw (S5: ), then remove the PDL Board Assy.
B4
E4
No. Screw Type
S5
C.B.S-TITE-SCREW-3x6-F.ZN-3C
FFC
PDL Board Assy
CN102
PDL Board Assy
3. Remove the two screws (S5: ), then remove the PDL Board Assy from the Shield Plate.
No. Screw Type
S5
C.B.S-TITE-SCREW-3x6-F.ZN-3C
PDL Board Assy
Shield Plate
