EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 333
Confidential

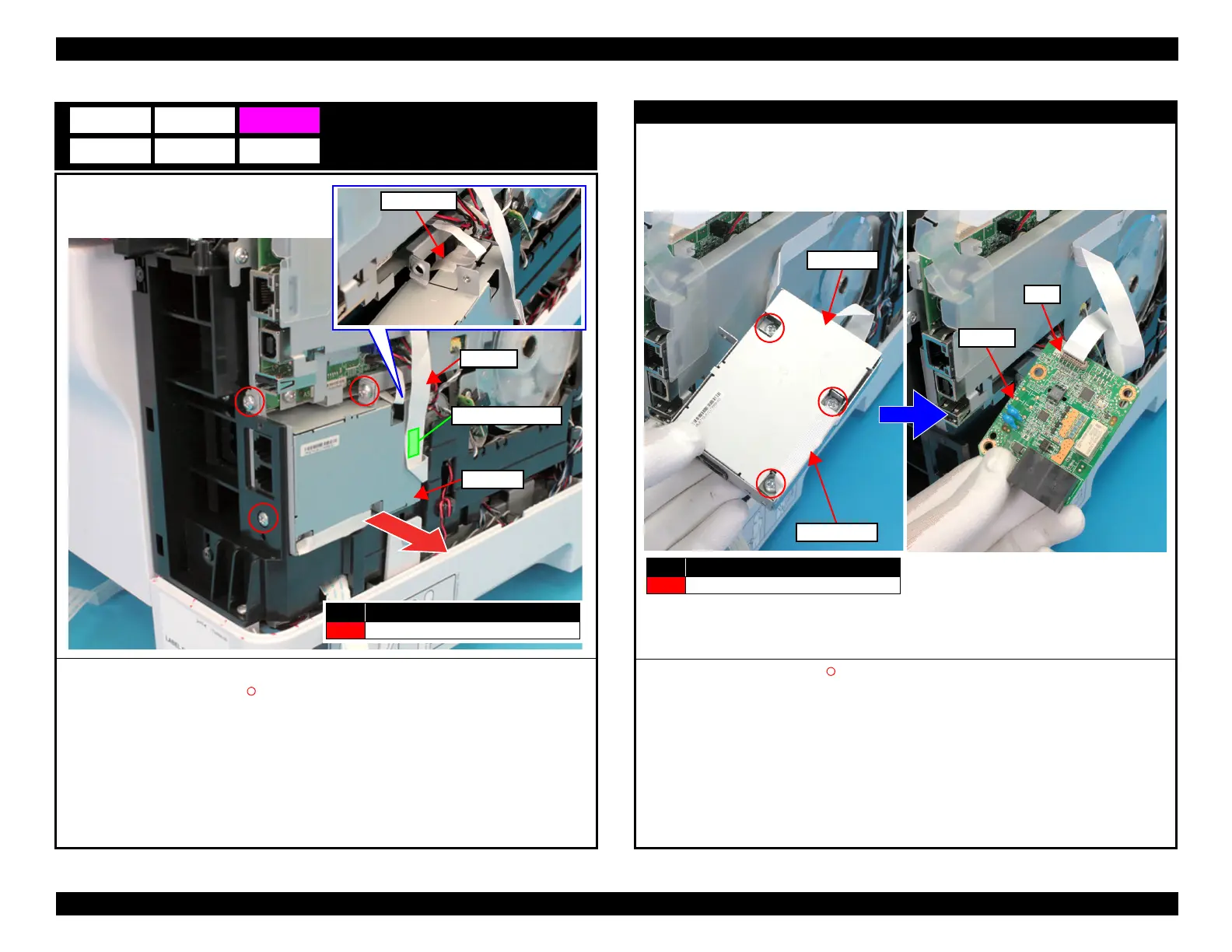

Fax Assy
1. Peel off the Fax FFC from the Fax Assy.
2. Remove the three screws (S5: ), and slide the Fax Assy in the direction of the arrow.
3. Peel off a piece of acetate tape, then remove the Fax Assy.
C4
Fax Assy
No. Screw Type
S5
C.B.S-TITE-SCREW-3x6-F.ZN-3C
Acetate tape
Fax FFC
Double-sided tape
Fax Assy
4. Remove the three screws (S5: ) that secure the Shield Plate.
5. Peel off a piece of acetate tape, and remove the Shield Plate.
6. Disconnect the FFC from the connector (CN1) on the Fax Assy.
No. Screw Type
S5
C.B.S-TITE-SCREW-3x6-F.ZN-3C
Acetate tape
Shield Plate
Fax Assy
CN1

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
