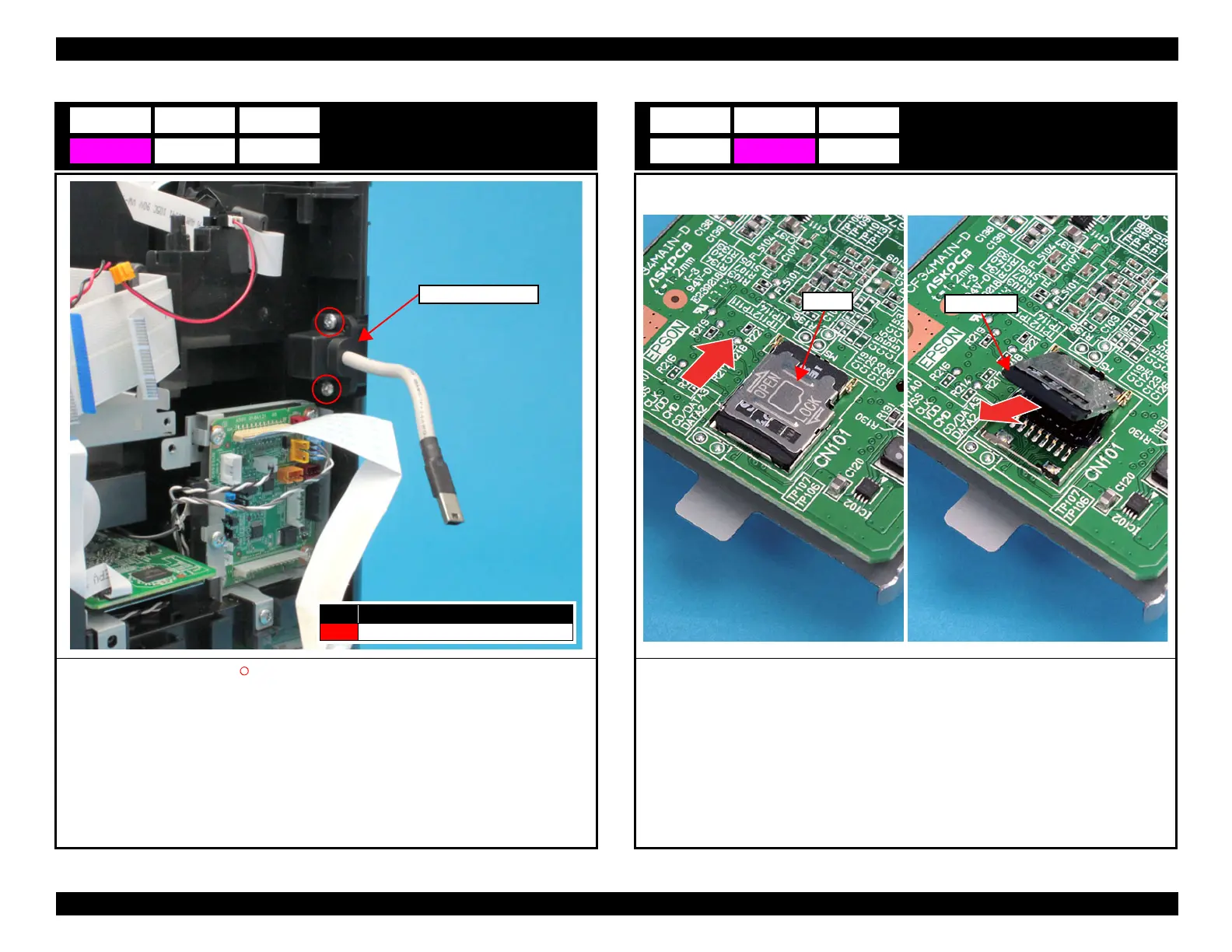

USB Interface Board
1. Remove the two screws (S4: ), then remove the USB Interface Board.
D4
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
USB Interface Board
SD Memory
1. Slide the Holder in the direction of the arrow.
2. Raise the holder, then remove the SD Memory.
E5
Holder
SD Memory
