EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 343
Confidential

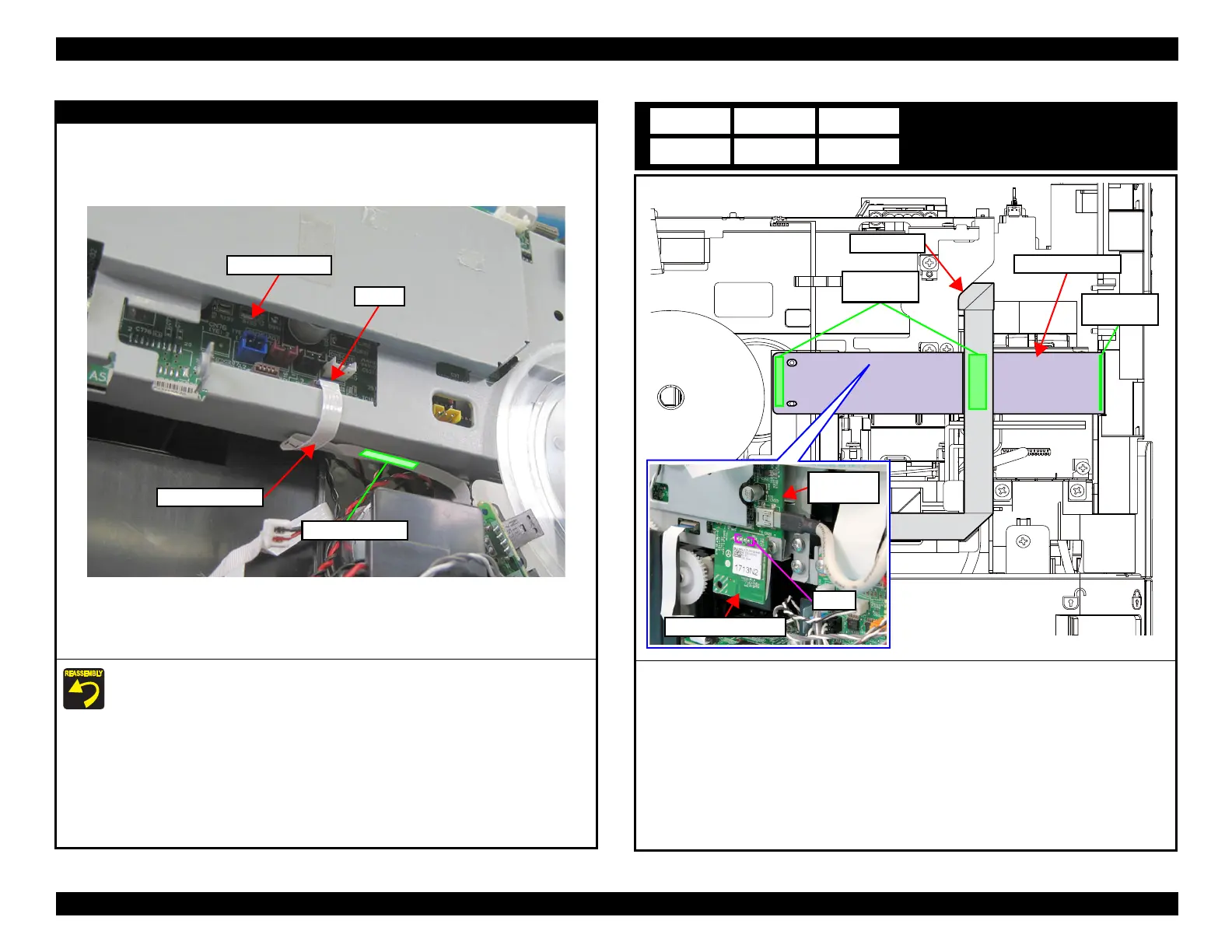

Main Board Assy
Secure the PF Encoder FFC with double-sided tape as shown above.
PF Encoder FFC
Main Board Assy
CN52
Double-sided tape
Wireless Lan Module
1. Peel off the CRCM FFC from the CRCM FFC Sheet.
2. Peel off the CRCM FFC Sheet.
3. Disconnect the Wireless Lan Module from the connector (CN31) on the Main Board Assy.
F15
Wireless Lan Module
Main Board
Assy
CN31
CRCM FFC
CRCM FFC Sheet
Double-sided
tape
Double-sided
tape

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
