EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 344
Confidential

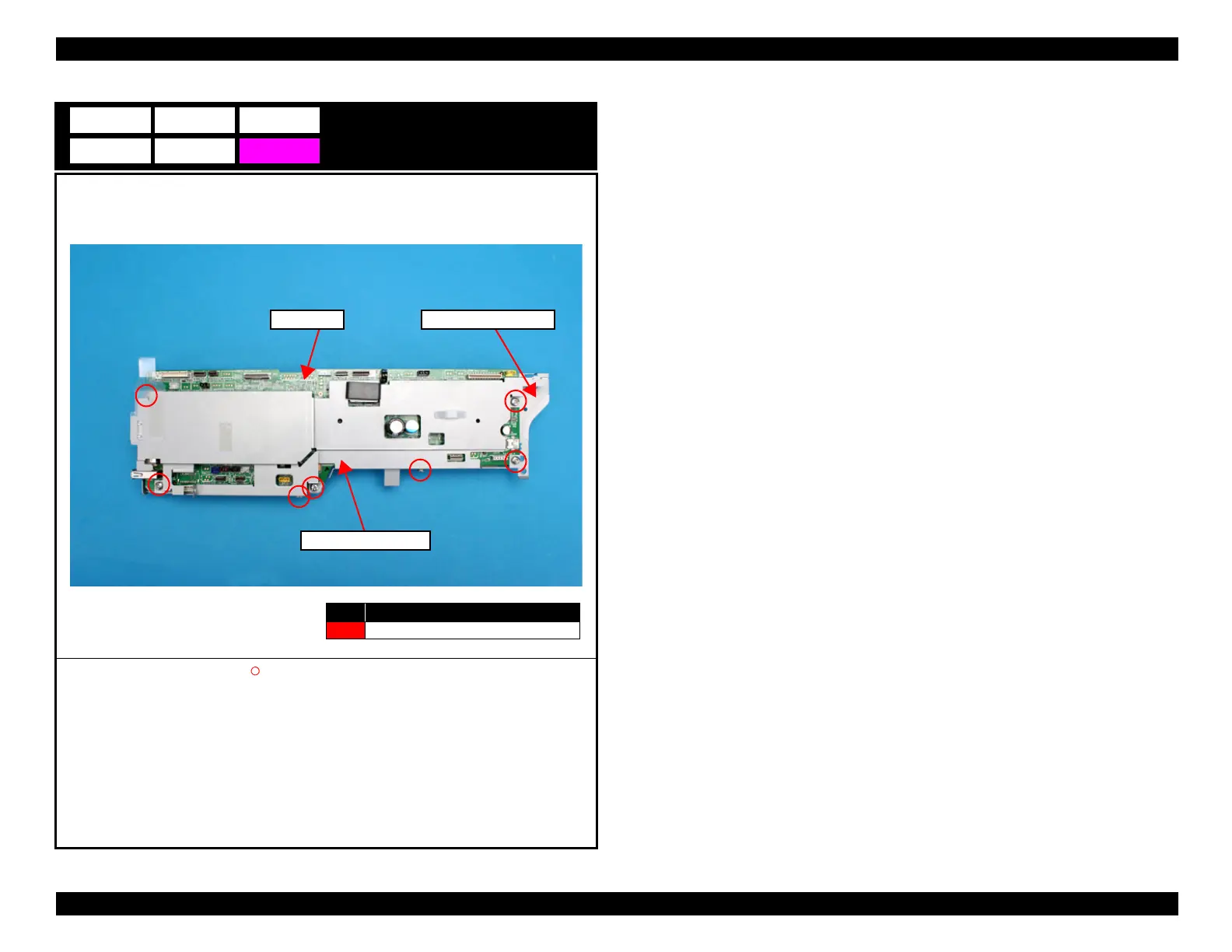

Main Board
1. Remove the seven screws (S5: ), then remove the MB Shield Plate Upper.
2. Remove the Main Board from the MB Shield Plate Lower.
F16
No. Screw Type
S5
C.B.S-TITE-SCREW-3x6-F.ZN-3C
Main Board
MB Shield Plate Upper
MB Shield Plate Lower
