EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 364
Confidential

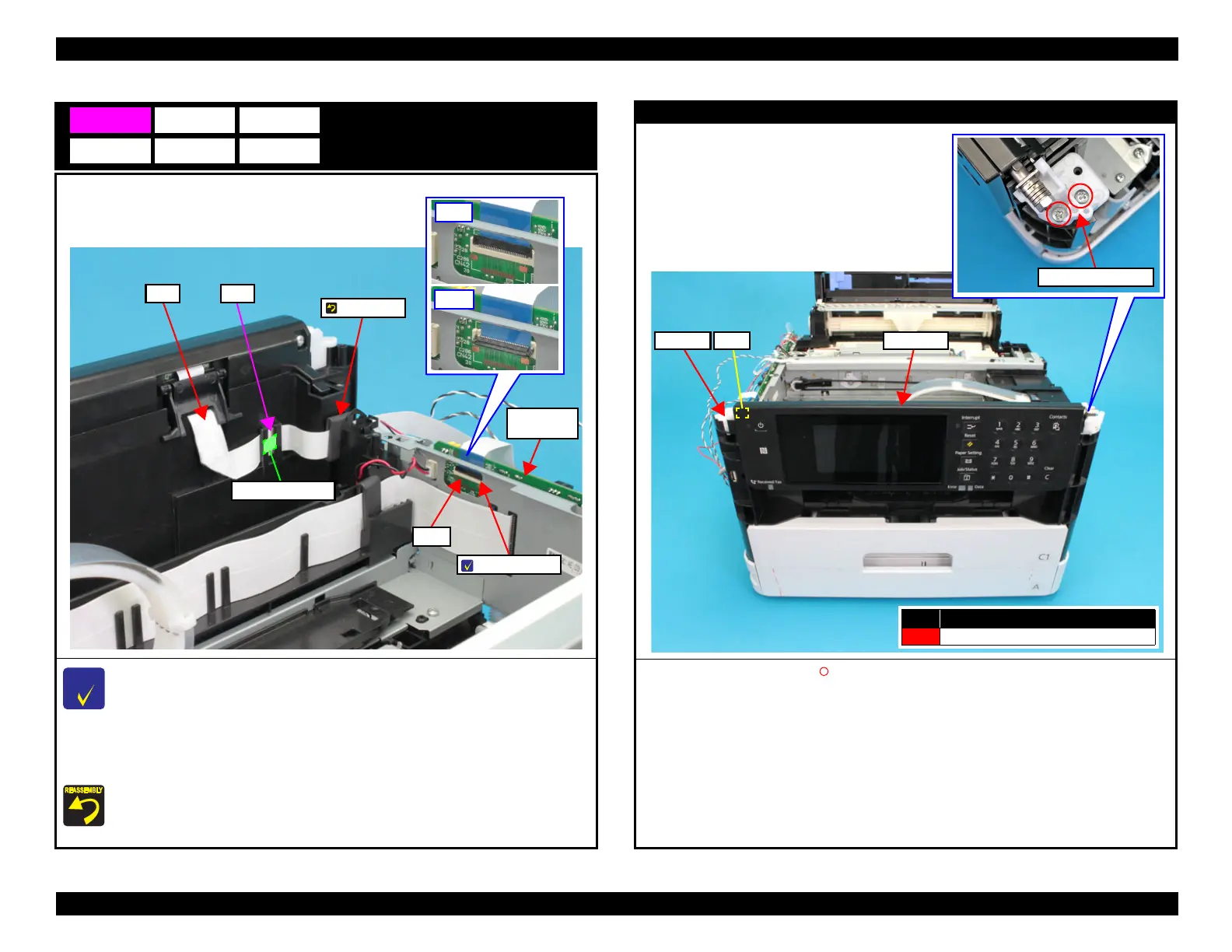

Panel Assy
C H E C K
P O I N T
When disconnecting the FFC, make sure to unlock the connector lock beforehand.
1. Disconnect the FFC from the connector (CN42) on the Main Board Assy.
2. Peel off the FFC from the Frame Base.
3. Release the FFC from two tabs on the Frame Base.
Set the ferrite core of the FFC in the point shown above.
A8 B8
D8 E8
C8
Close
Open
Ferrite core
FFC
CN42
Main Board
Assy
Double-sided tape
Tab
Connector lock
Panel Assy
4. Remove the two screws (S4: ), then remove the Right Panel Holder.
5. Release the shaft of the Panel Assy from bearing, then remove the Panel Assy.
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Panel Assy
Right Panel Holder
Bearing
Shaft

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
