Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 365
Confidential

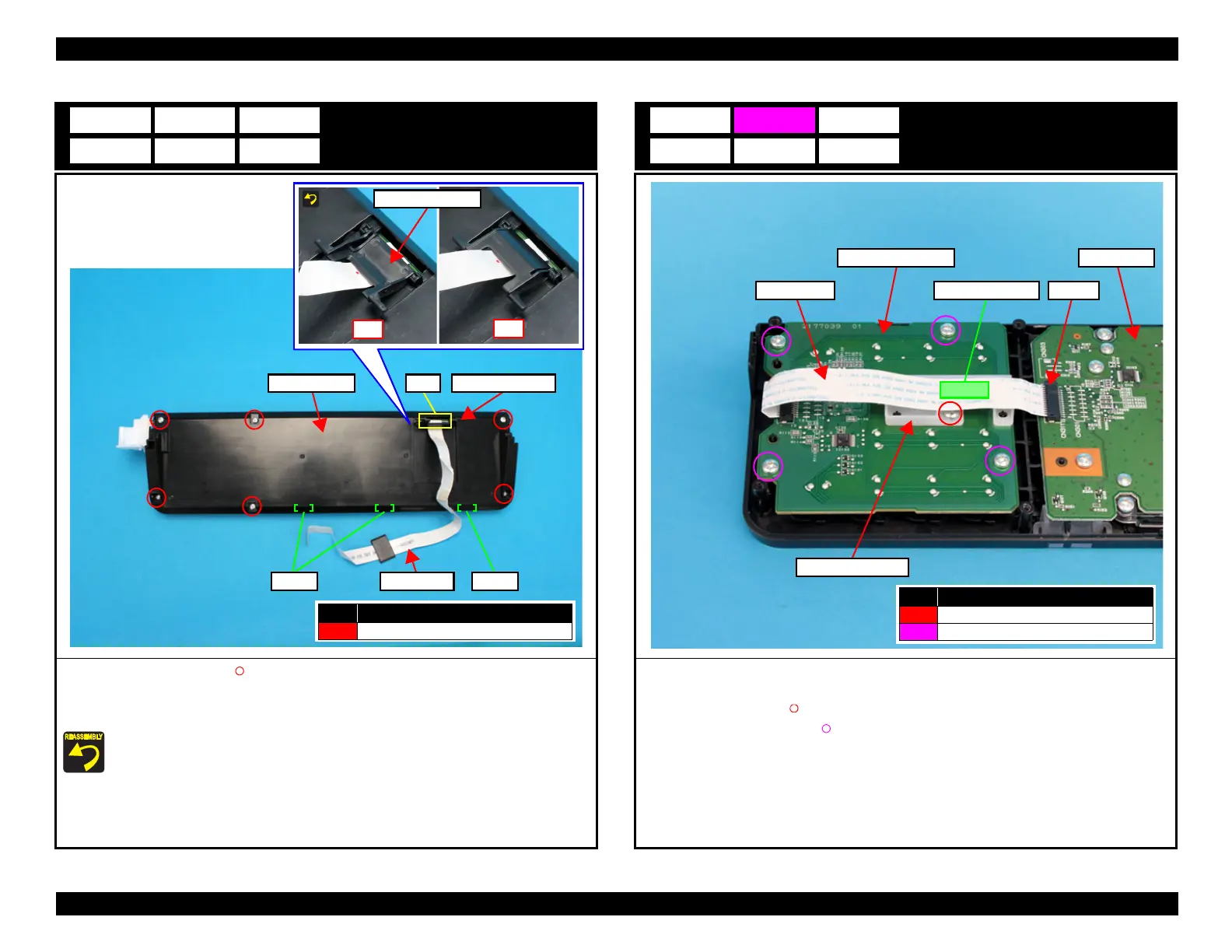

Panel Housing
1. Remove the six screws (S4: ) that secure the Panel Housing.
2. Disengage three hooks on the Panel Housing, and remove the Panel Housing.
3. Remove the Panel FFC Cover.
Install the Panel FFC Cover as shown above.
4. Pull the Relay Cable out from the hole of the Panel Housing.
B9
D9 E9
C9
Panel Housing
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Panel FFC Cover
Relay Cable
Hole
HookHooks
NG
Cover
OK
Panel FFC Cover
Numpad Board Assy
1. Peel off the Relay Cable Cover, and disconnect the FFC from the connector (CN311) on the
Panel Board.
2. Remove the screw (S4: ), and remove the Relay Cable Cover.
3. Remove the four screws (S4: ), and remove the Numpad Board Assy.
B10
Numpad Board Assy
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
CN311Double-sided tapeRelay Cable
Relay Cable Cover
Panel Board

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
