Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 366
Confidential

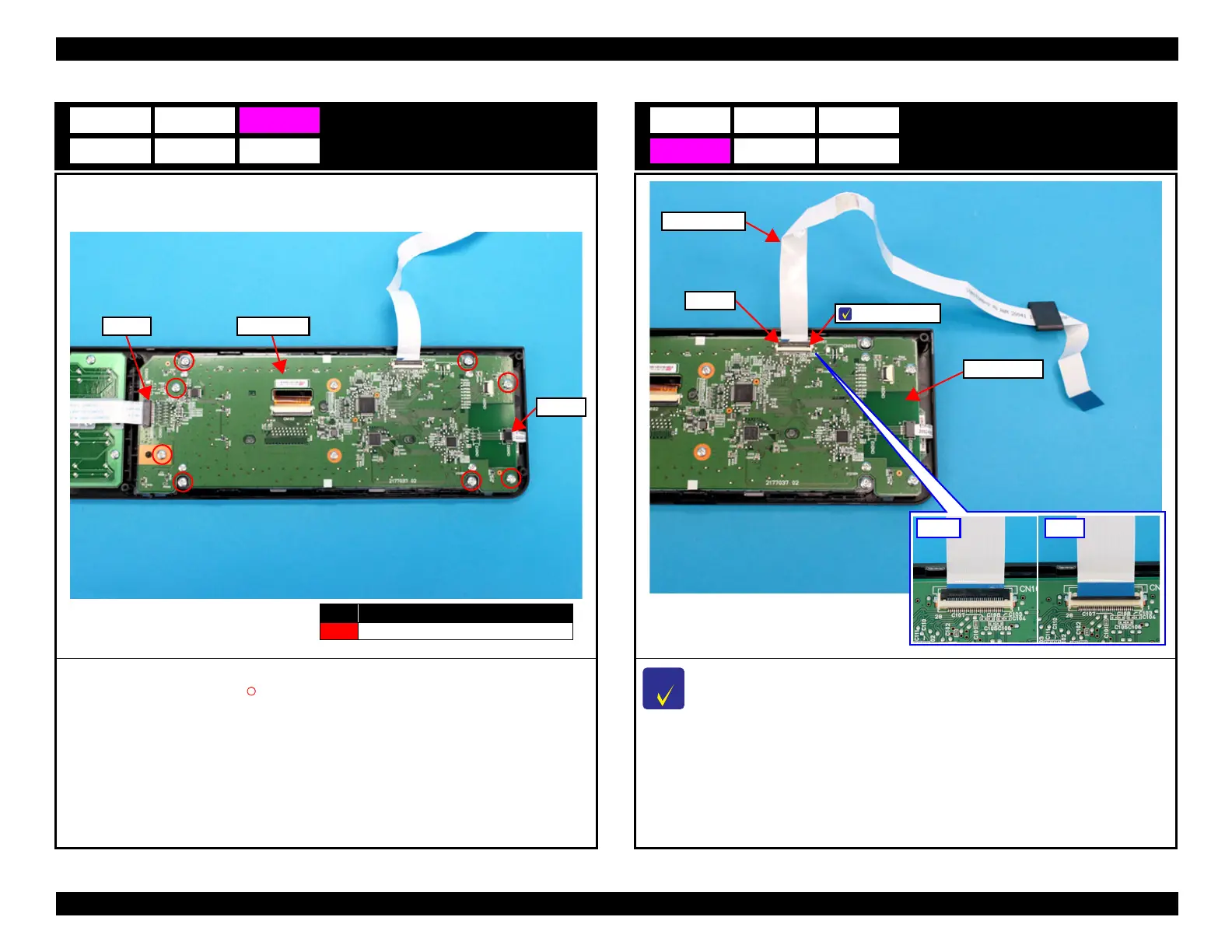

Panel Board
1. Disconnect the FFC from the connectors (CN302, CN311) on the Panel Board.
2. Remove the eight screws (S4: ), then remove the Panel Board.
C10
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Panel Board
CN302
CN311
Relay Cable (Panel to Main)
C H E C K
P O I N T
When disconnecting the FFC, make sure to unlock the connector lock beforehand.
1. Disconnect the Relay Cable from the connector (CN101) on the Panel Board.
D10
Relay Cable
CN101
Panel Board
Close
Open
Connector lock

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
