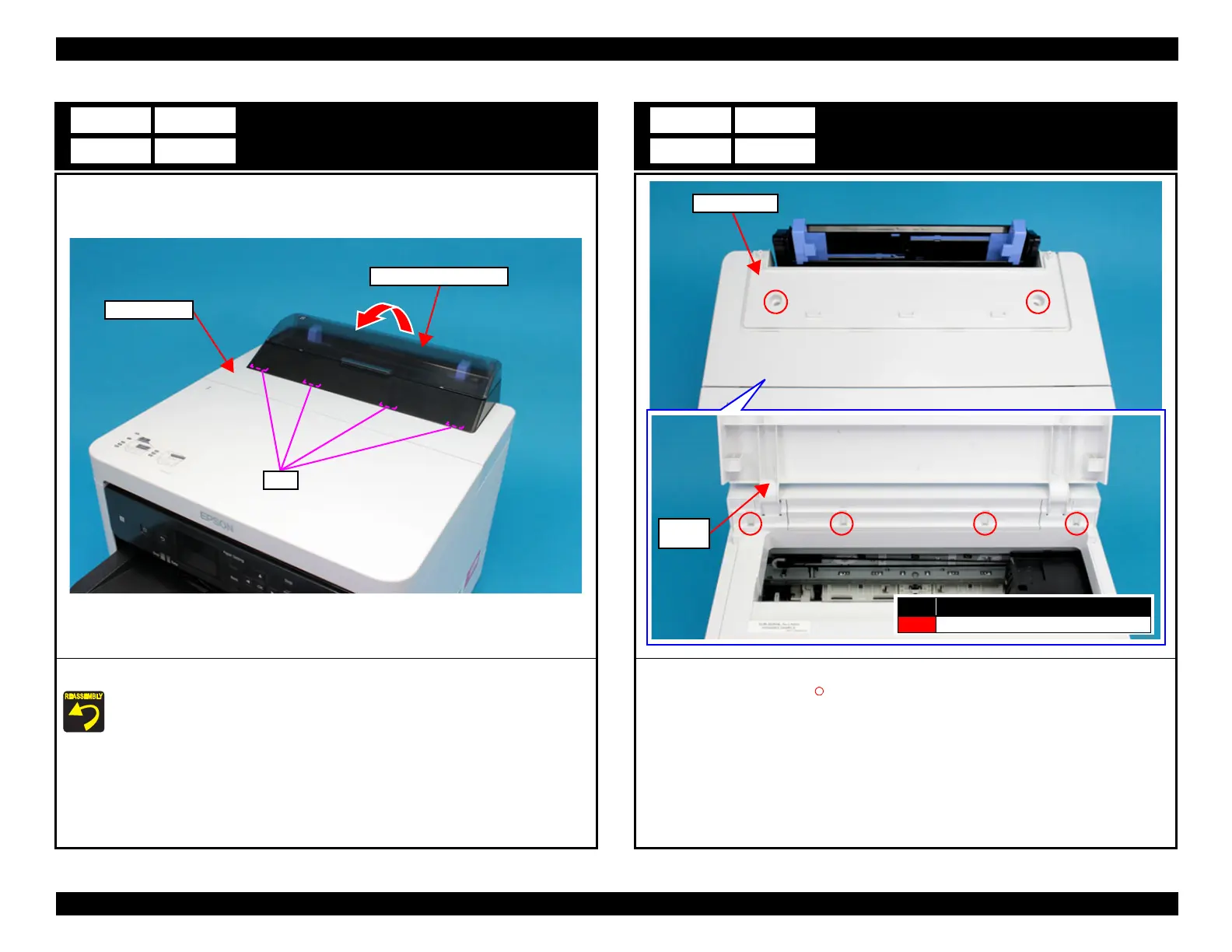

Rear Upper Cover Assy
1. Remove the Rear Upper Cover Assy in the direction of the arrow.
Insert the four tabs of the Rear Upper Cover Assy to the positioning holes of the
Housing ASF.
A2 B2
C2
Rear Upper Cover Assy
Housing ASF
Tabs
Housing ASF
1. Open the Printer Cover.
2. Remove the six screws (S4: ), then remove the Housing ASF.
A3 B3
C3
Housing ASF
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Printer
Cover
