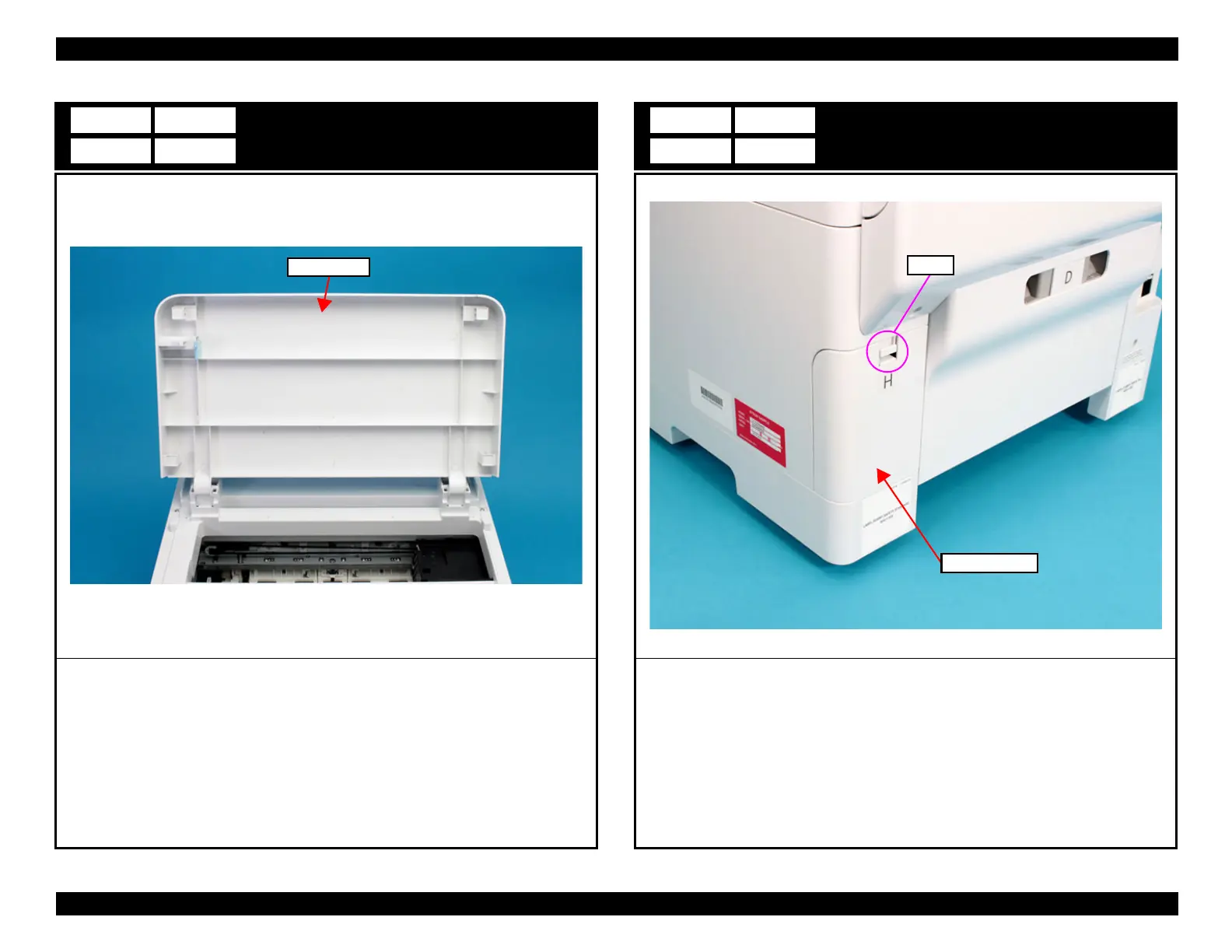

Printer Cover
1. Remove the Printer Cover upward.
A4 B4
C4
Printer Cover
Ink Eject Cover
1. Disengage the hook, and remove the Ink Eject Cover.
A5 B5
C5
Ink Eject Cover
Hook
