Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 373
Confidential
Housing Right

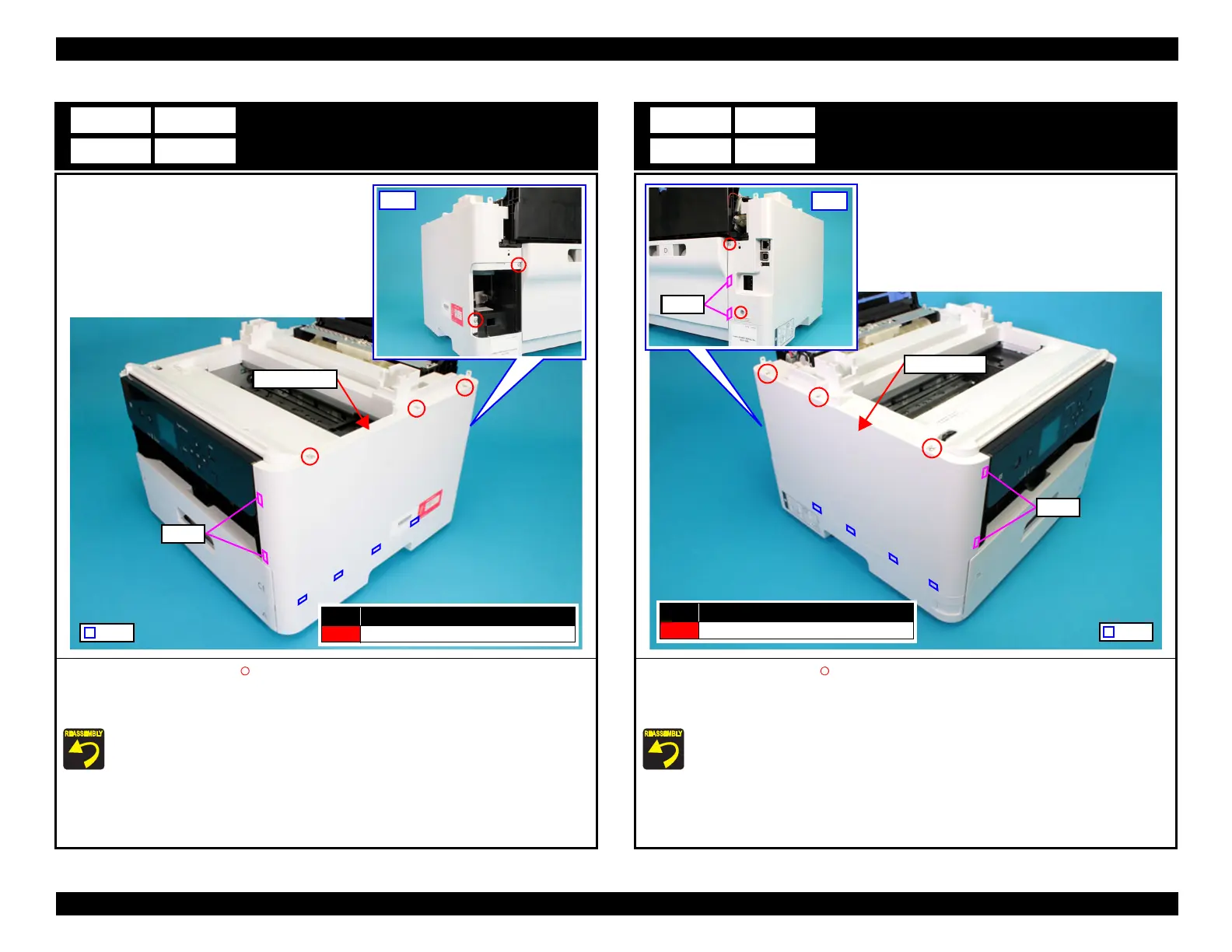

1. Remove the five screws (S4: ) that secure the Housing Right.
2. Lift the Housing Right upward to release the two hooks on the front side of the Housing
Right, and then remove the Housing Right.
Insert the four tabs of the Housing Right to the positioning holes of the Ink Supply
Unit.
A6 B6
C6
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Housing Right
Rear
Hooks
Tab
Housing Left
1. Remove the five screws (S4: ) that secure the Housing Left.
2. Lift the Housing Left upward to release the two hooks each on the front side and rear side of
the Housing Left, and then remove the Housing Left.
Insert the four tabs of the Housing Left to the positioning holes of the Ink Supply Unit.
A7 B7
C7
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Hooks
Rear
Housing Left
Hooks
Tab
