EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 374
Confidential

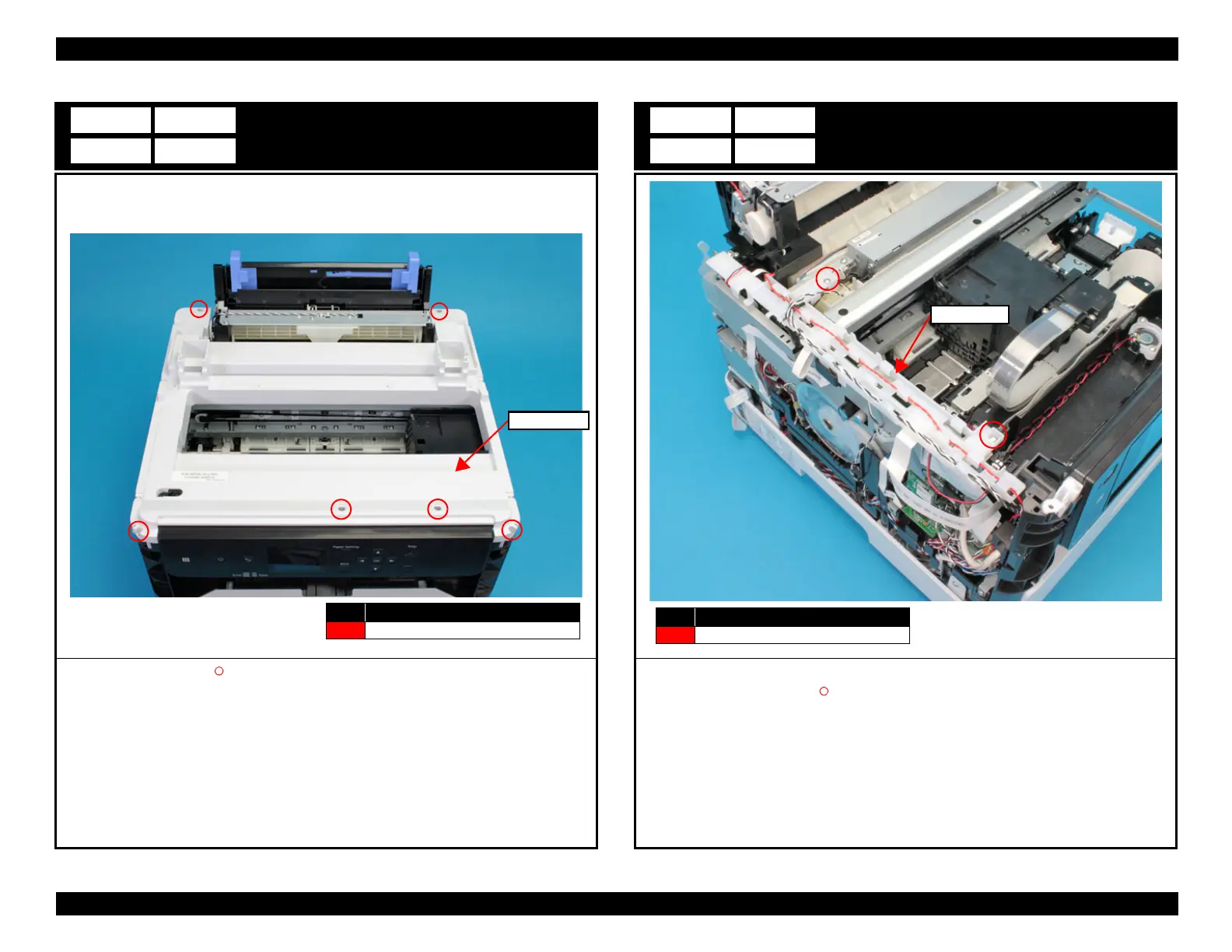

Housing Top
1. Remove six screws (S4: ), then remove the Housing Top.
A8 B8
C8
Housing Top
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Cable Guide
1. Release the all cable from the Cable Guide.
2. Remove the two screws (S4: ), and remove the Cable Guide.
A9 B9
C9
Cable Guide
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
