Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 375
Confidential

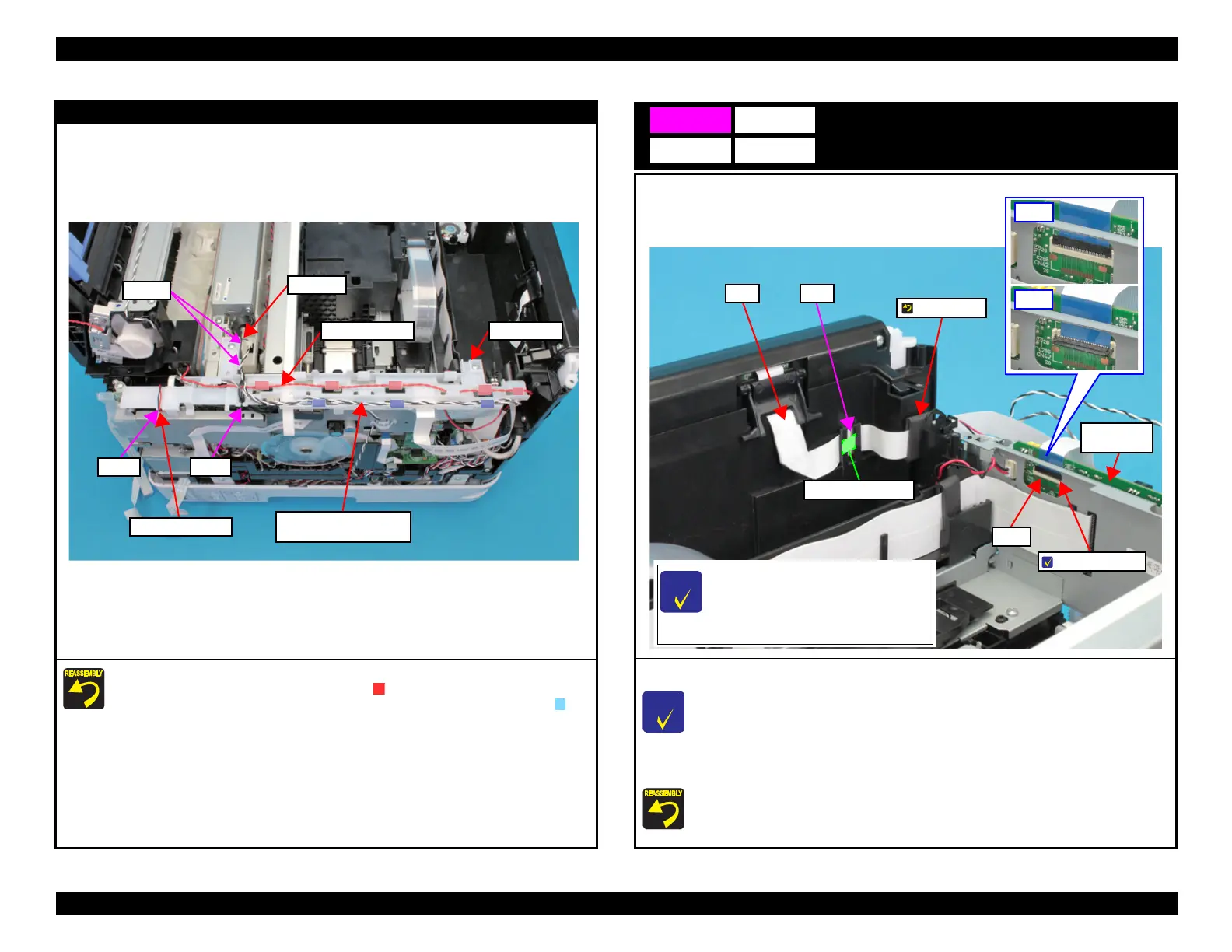

Cable Guide
 Route the PS cable through the two guides and hook on the Cable Guide.
 Route the solenoid cable through the five hooks ( ) on the Cable Guide.
 Route the rear ASF sensor cable and photo interrupter cable through the three hooks ( ) on
the Cable Guide.
 Route the ASF motor cable through the guide on the Cable Guide.
PS Cable
Rear ASF sensor cable/
Photo interrupter cable
ASF motor cable
Guides
HookGuide
Solenoid cable
Cable Guide
Panel Assy
1. Disconnect the FFC from the connector (CN42) on the Main Board Assy.
C H E C K
P O I N T
When disconnecting the FFC, make sure to unlock the connector lock beforehand.
2. Peel off the FFC from the Frame Base.
3. Release the FFC from two tabs on the Frame Base.
Set the ferrite core of the FFC in the point shown above.
A10 B10
C10
Close
Open
Ferrite Core
FFC
CN42
Main Board
Assy
Double-sided tape
C H E C K
P O I N T
The disassembling procedure for the Panel
Assy of the WF-C5700 Series/ET-8700 is
explained here.
The appearance of the Panel Assy differs
between WF-C5200 Series and WF-C5700
Series/ET-8700, however, the disassembly and
assembly procedure itself is the same.
Tab
Connector lock

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
