Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 376
Confidential

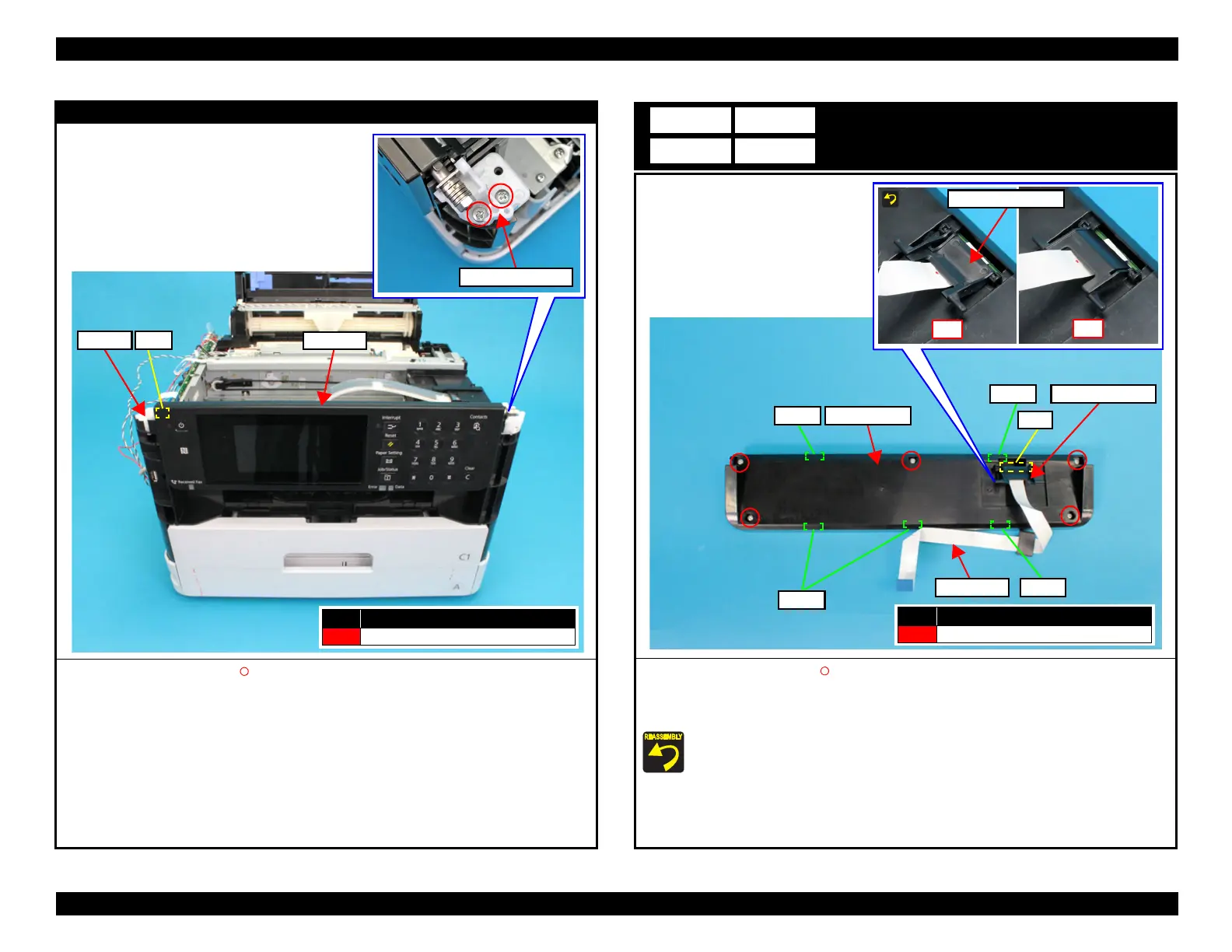

Panel Assy
4. Remove the two screws (S4: ), then remove the Right Panel Holder.
5. Release the shaft of the Panel Assy from the bearing, then remove the Panel Assy.
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Panel Assy
Right Panel Holder
Bearing
Shaft
Panel Housing
1. Remove the five screws (S4: ) that secure the Panel Housing.
2. Disengage five hooks on the Panel Housing, then remove the Panel Housing.
3. Remove the Panel FFC Cover.
Attach the panel FFC Cover as shown above.
4. Pull the Relay Cable out from the hole of the Panel Housing.
B11
C11
Panel Housing
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Relay Cable
Hole
Hooks
Hooks
NG
OK
Panel FFC Cover
Hook Panel FFC Cover
Hook

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
