EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 401
Confidential

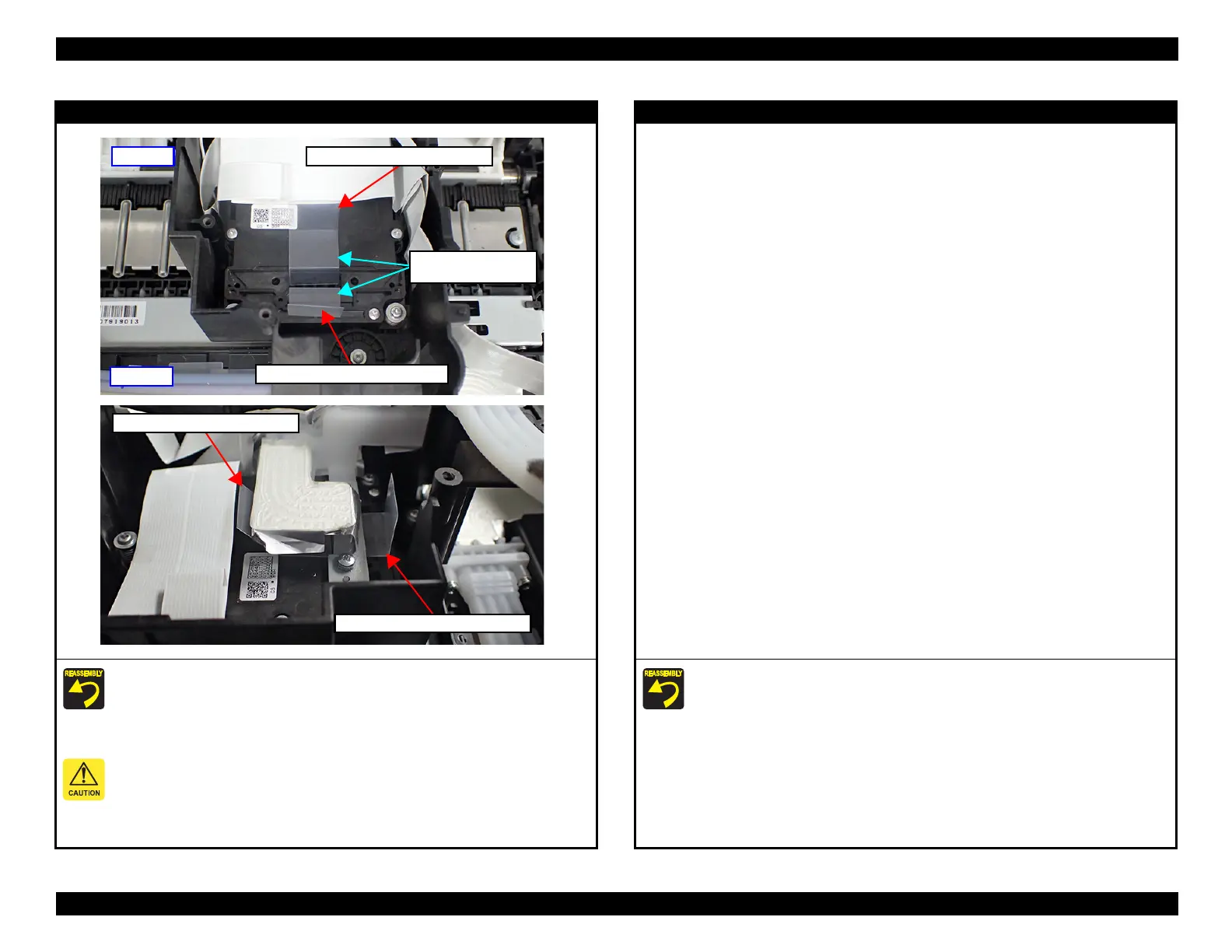

Ink Supply Tube
1. Set the ink leak measurement jig to the ink tube connector of the Print Head.
2. Set the Ink Supply Tube to the Printhead.
3. After ink charging, follow the instructions on the Ink leak check (p.563) to remove
the LEAK TESTER SHEET FRONT/REAR, then perform Leak Check
Judgement.
 The smoked face of ink leak measurement jig is put toward the upside.
 When installing the Ink Supply Tube, make sure to tighten the screws using a torque driver
with the specified torque.

Screw tightening torque: 0.33±0.02Nm
Front side
LEAK TESTER SHEET FRONT
The smoked face is
put toward the upside.
LEAK TESTER SHEET REAR
Rear side
LEAK TESTER SHEET REAR
LEAK TESTER SHEET FRONT
Ink Supply Tube
After ink charging, follow the instructions on the Ink leak check (p.563) to remove the
LEAK TESTER SHEET FRONT/REAR, then perform Leak Check Judgement.

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
