EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Adjustment Adjustment and Inspection Details 563
Confidential
INK LEAK CHECK
An ink leak check is required when disconnecting the Ink Supply Tube from the
Printhead.
The judgment method of the ink leak check is described below.
 Leak check procedure
1. Pull out the jigs for the leak check.

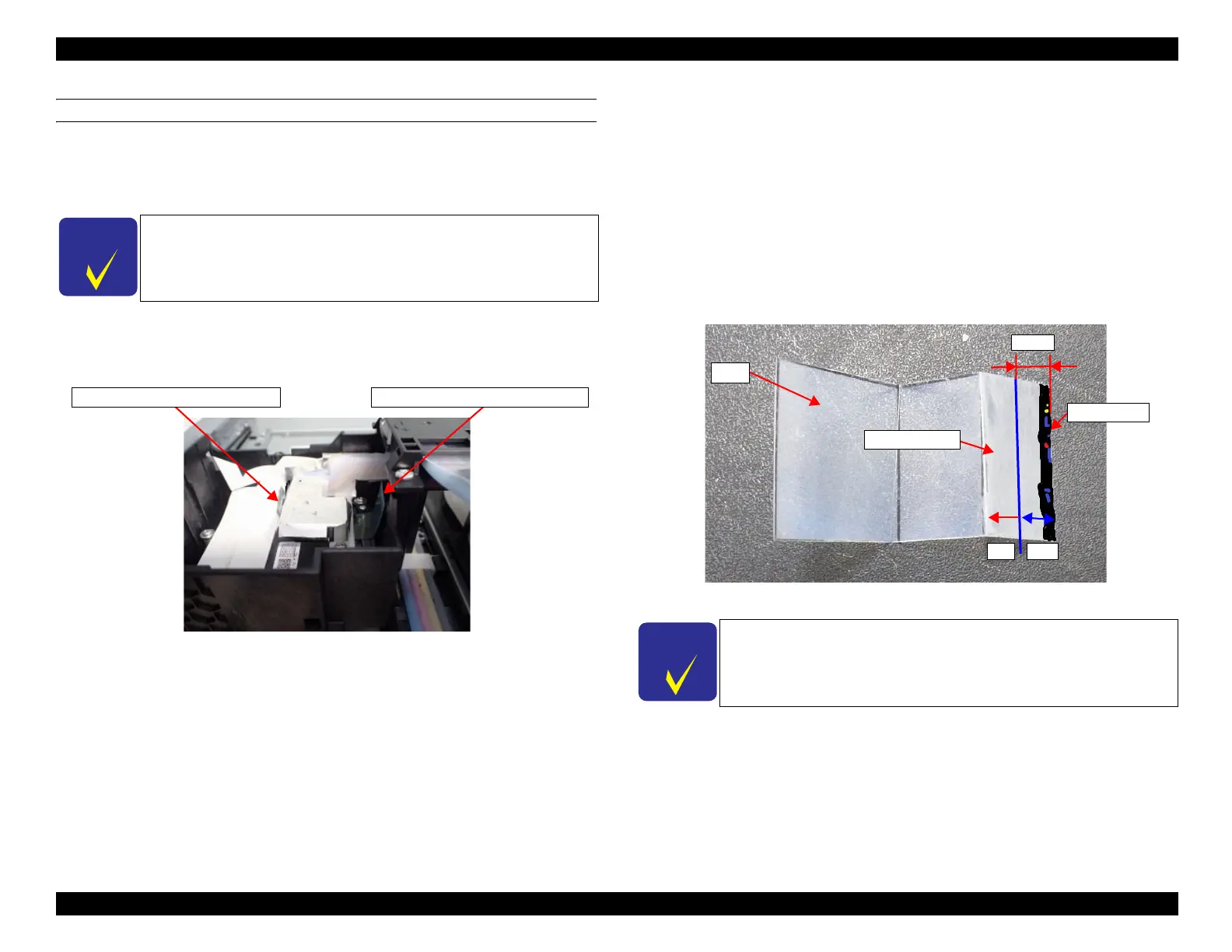

Figure 7-5. Leak Check Procedure (1)
2. Check the ink adherence state on the cloudy surface of the jigs to determine
whether or not there is an ink leak.
 Judgment criterion of leak check
Check whether or not ink is adhered at a position of 2 mm or more from the
leading edge of the cloudy surface of the jigs. (Consider the result to be a fail
if any of the jigs for the leak check does not pass the check.)
• Pass (no ink leak)
When ink adherence is less than 2 mm from the leading edge of the jig
• Fail (ink leak)
When ink adherence is 2 mm or more from the leading edge of the jig
Figure 7-6. Judgment Criterion of Leak Check
C H E C K
P O I N T
The jigs for the leak check (leak tester sheet front/rear) need to be
attached during the part replacement work. For the procedure to
attach the jigs, refer to " Printhead (p. 403)" and " Ink Supply
Tube (p. 398)".
Jig (Leak tester sheet front)Jig (Leak tester sheet rear)
C H E C K
P O I N T
If the result is determined to be a fail (ink leak), refer to
“Printhead”
(p. 403) and perform the ink leak check again.
2mm
Leading edge
OK
NG
Cloudy surface
Jig

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
