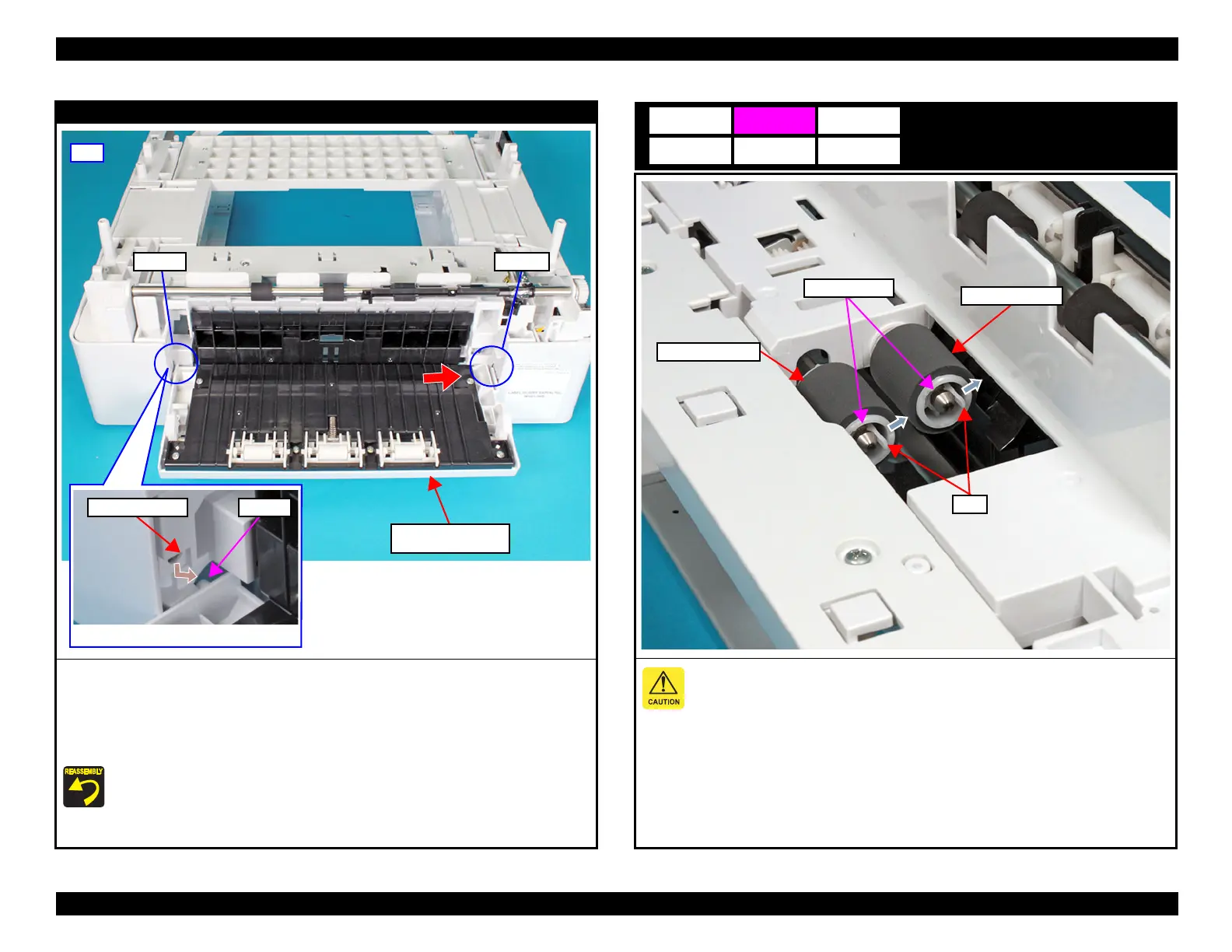

Optional Paper Cassette Rear Cover
2. Push the Optional Paper Cassette Rear Cover in the direction of the arrow, and remove
dowel A of the Optional Paper Cassette Rear Cover from the hole in the frame.
3. Remove dowel A of the Rear Lower Cover along the groove of the frame.
4. Remove dowel B of the Rear Lower Cover from the hole in the frame, and then remove the
Optional Paper Cassette Rear Cover.
When attaching the Rear Lower Cover, first of all, attach dowel B in the hole of the
frame.
Optional Paper
Cassette Rear Cover
Dowel A Dowel B
Rear
Remove dowel A along the groove.
Groove of frame
Dowel A
Separation Roller
When performing work, hold the tabs to avoid touching the roller surface.
1. Extend the tabs in the direction of the arrows and release them from the groove of the
shafts, and then pull out and remove each Separation Roller (x2).
B3
Separation Roller
Tabs
Separation Roller
Groove of shaft
