EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 531
Confidential

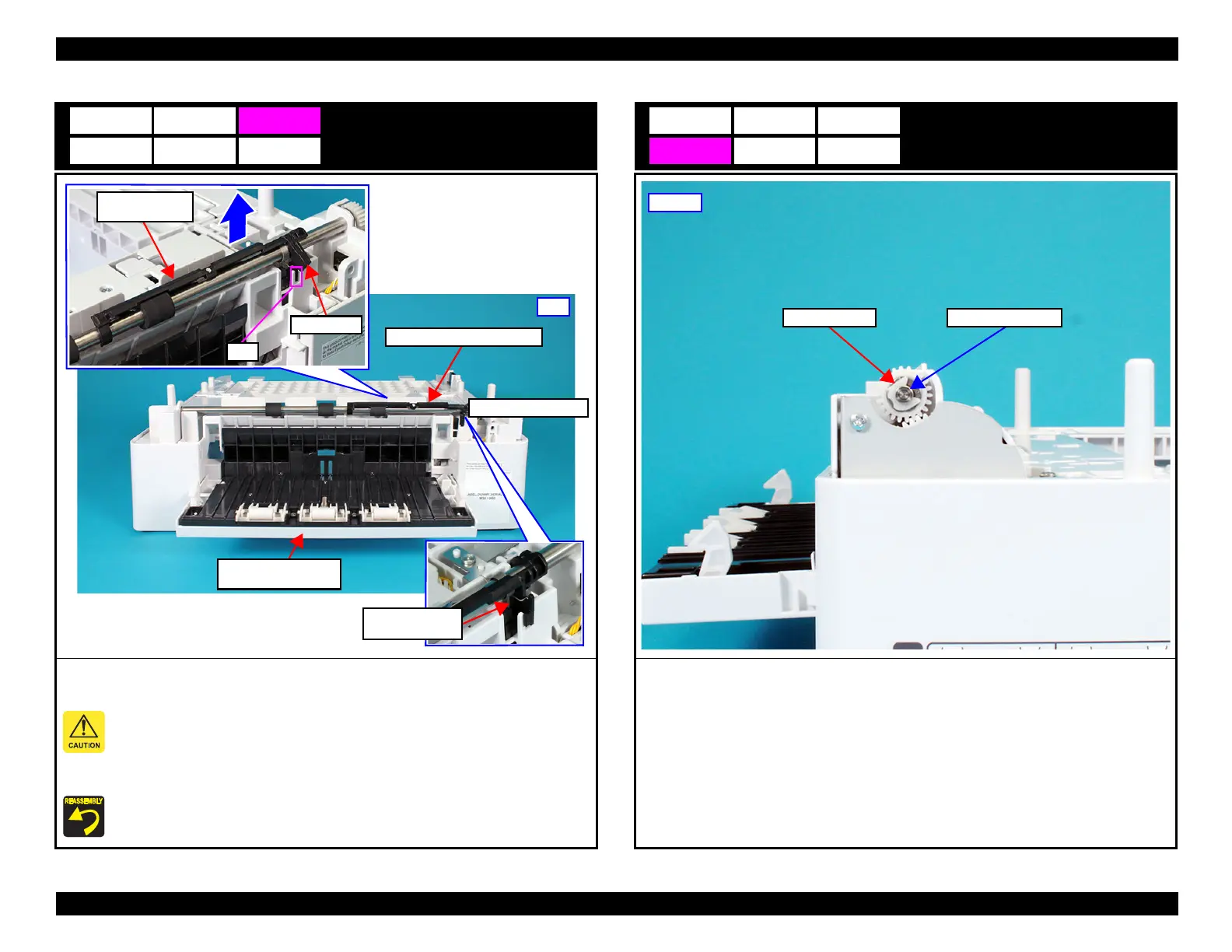

Paper Feed Detector Lever
1. Open the Rear Lower Cover.
2. Remove the leg of Torsion Spring 0.9 from the Paper Feed Detector Lever.
Since the narrow part of the Paper Feed Detector Lever may be bleached and damaged,
remove the Paper Feed Detector Lever by ensuring that it does not get twisted.
3. As shown in the figure above, with the Paper Feed Detector Lever in the rotated state, remove
the Paper Feed Detector Lever from the Vertical Feed Roller in the direction of the arrow.
When attaching the Paper Feed Detector Lever, be sure to align the flag section of the
Paper Feed Detector Lever with the slit shown in the figure above.
D3 E3
C3
F3
Paper Feed Detector Lever
Optional Paper
Cassette Rear Cover
Slit
Flag section
Cassette Paper
Detection Lever
Rear
Leg of the Torsion
Spring 0.9
Vertical Feed Roller
E-ring (plastic)
1. Remove the E-ring (plastic) from the left side of the Vertical Feed Roller.
D4 E4
F4
E-ring (plastic)
Left side
Vertical Feed Roller

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
