Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 541
Confidential

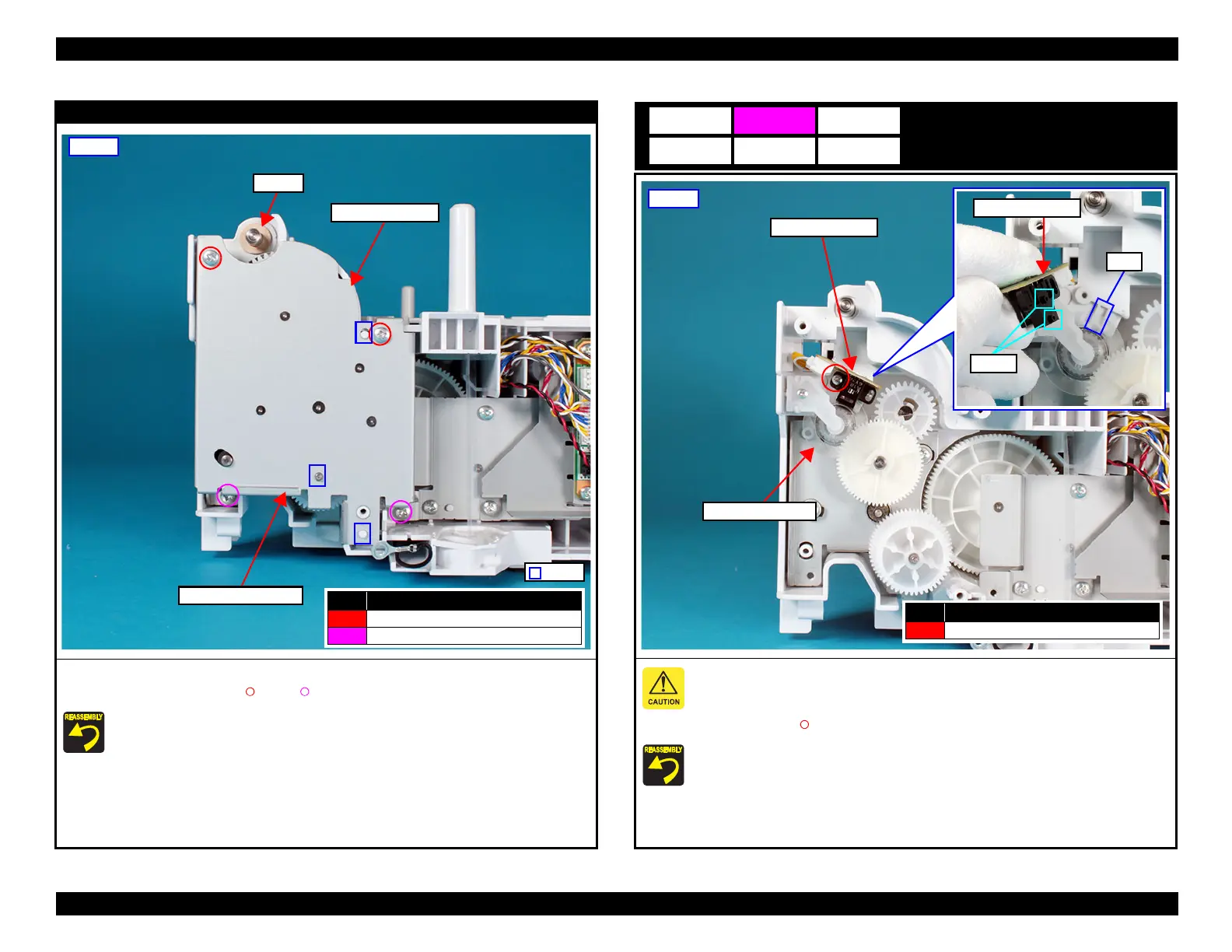

Hopper Drive Assy
3. Release the Bearing A from the Vertical Feed Roller.
4. Remove the four screws (S4: x2, S5: x2), then remove the Hopper Drive Frame.
When attaching the Hopper Drive Assy, align the dowels (x3) with the holes in the
Hopper Drive Frame.
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
S5
C.B.S-TITE-SCREW-3x6-F.ZN-3C
Hopper Drive Assy
Hopper Drive Frame
Dowel
Left side
Bearing
ASF Encoder Assy
Perform work ensuring that the ASF Encoder Scale is not damaged.
1. Remove the screw (S17: ), then remove the ASF Encoder Assy.
 When attaching the ASF Encoder Sensor, be sure to align the dowels of the ASF Encoder
Assy with the holes on the frame.
 After attaching the ASF Encoder Assy, make sure the ASF Encoder Assy is not in contact
with the ASF Encoder Scale.
B9
ASF Encoder Assy
Hole
Dowels
ASF Encoder Assy
No. Screw Type
S17
C.B.P-TITE-SCREW-2X6-F.ZN-3C
ASF Encoder Scale
Left side

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
