EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 542
Confidential

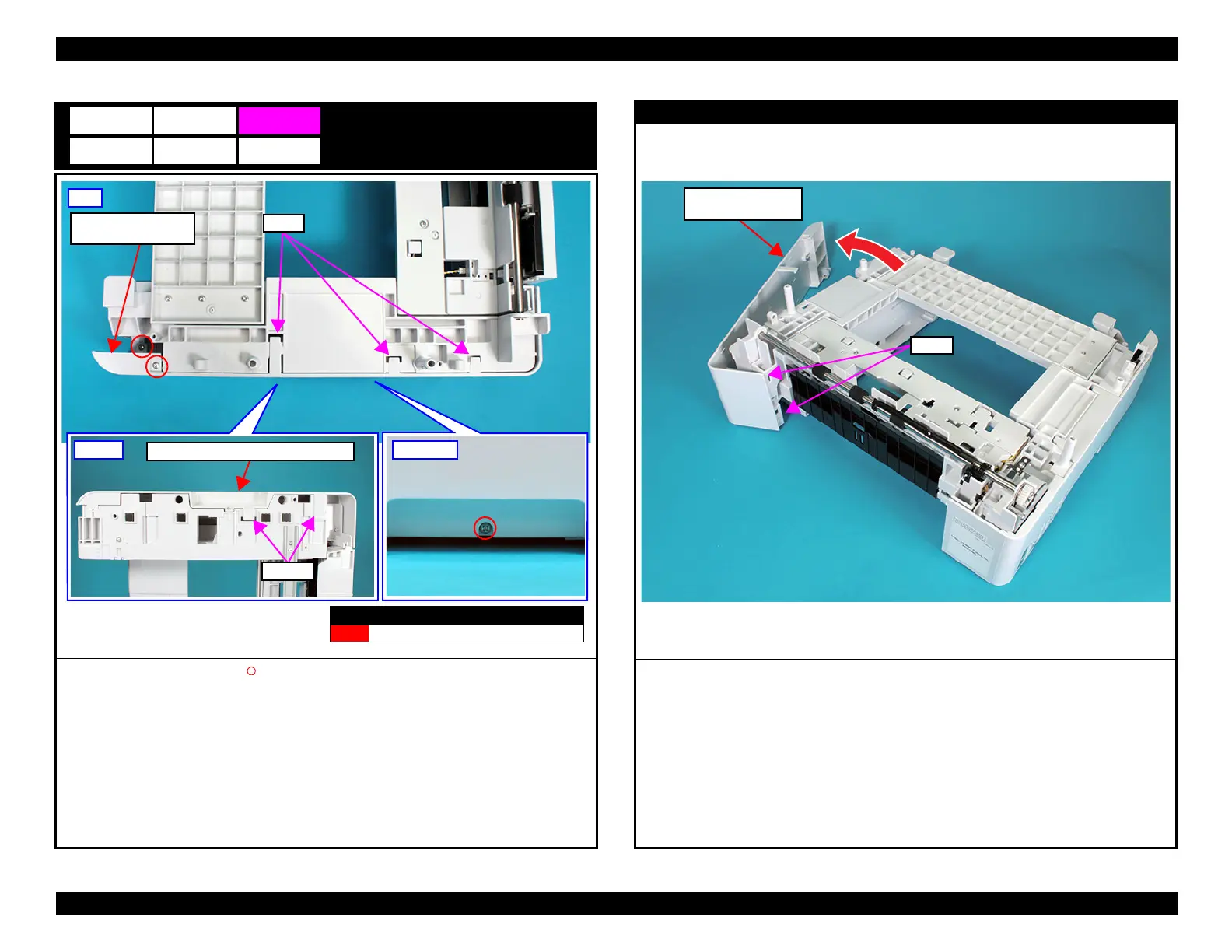

Optional Paper Cassette Right Cover
1. Remove the three screws (S4: ).
2. Disengage five hooks on top and bottom side of the Optional Paper Cassette Right Cover.
C5
Optional Paper
Cassette Right Cover
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
Hooks
Bottom
Optional Paper Cassette Right Cover
Right side
Hooks
Top
Optional Paper Cassette Right Cover
3. Disengage two hooks of rear side of the Optional Paper Cassette Right Cover, and remove
the Optional Paper Cassette Right Cover.
Hooks
Optional Paper
Cassette Right Cover
