Epson WF-C5790 User Manual

EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Disassembly/assembly Disassembly/Reassembly Procedures 549
Confidential

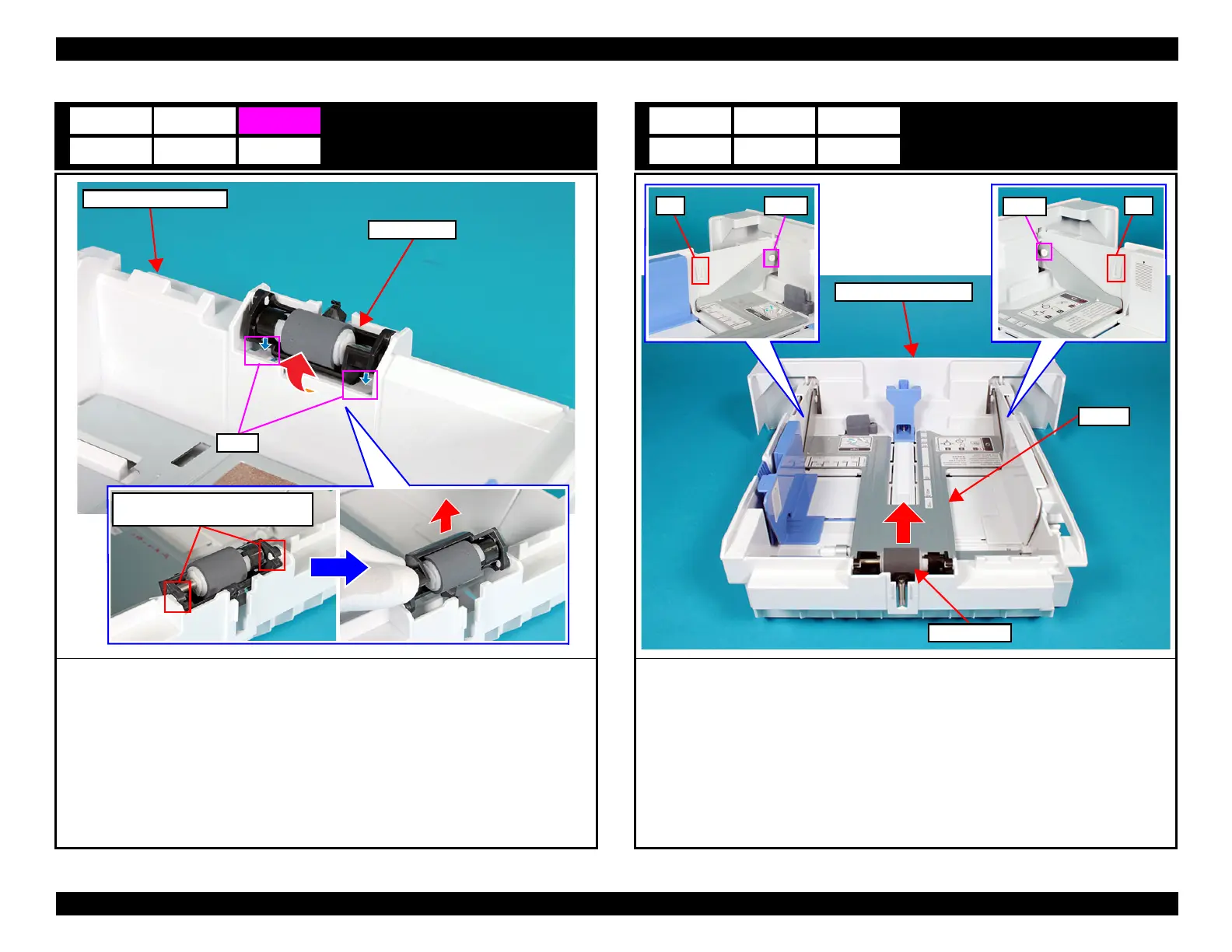

Retard Roller
1. Disengage the hooks (x2) by pressing in the direction of the arrow, and then rotate the
Retard Roller in the direction of the red arrow.
2. Align the shape of the notch of Retard Roller and the shaft of Paper Cassette 2nd Assy, and
then remove the Retard Roller.
C3
Retard Roller
Paper Cassette 2nd Assy
Shaft of the Paper Cassette 2nd Assy
and notch of the Retard Roller
Hooks
Hopper
1. Lift up the Retard Roller side of the Hopper while extending the Paper Cassette 2nd Assy
toward the outside, and then remove the Hopper from the rib of the Paper Cassette 2nd Assy.
2. Release the Hopper from two dowels on the Paper Cassette 2nd Assy, then remove the
Hopper.
D2 E2
Hopper
Paper Cassette 2nd Assy
DowelRib
Rib
Dowel
Retard Roller

Epson WF-C5790 Specifications

General

Print Resolution	4800 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Monthly Duty Cycle	Up to 45, 000 pages
Display	4.3" color touchscreen
Functions	Print, Copy, Scan, Fax
Output Capacity	150 sheets
Scan Resolution	1200 x 2400 dpi
ADF Capacity	50 sheets
Ink Type	DURABrite Ultra pigment ink
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Technology	PrecisionCore
Print Speed (Black)	24 ppm (ISO)
Print Speed (Color)	24 ppm (ISO)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Mobile Printing	Apple AirPrint, Google Cloud Print
Scanner Type	Color flatbed
Fax Speed	33.6 Kbps
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Executive
