Disassembly/assembly Disassembly/Reassembly Procedures 550
Confidential

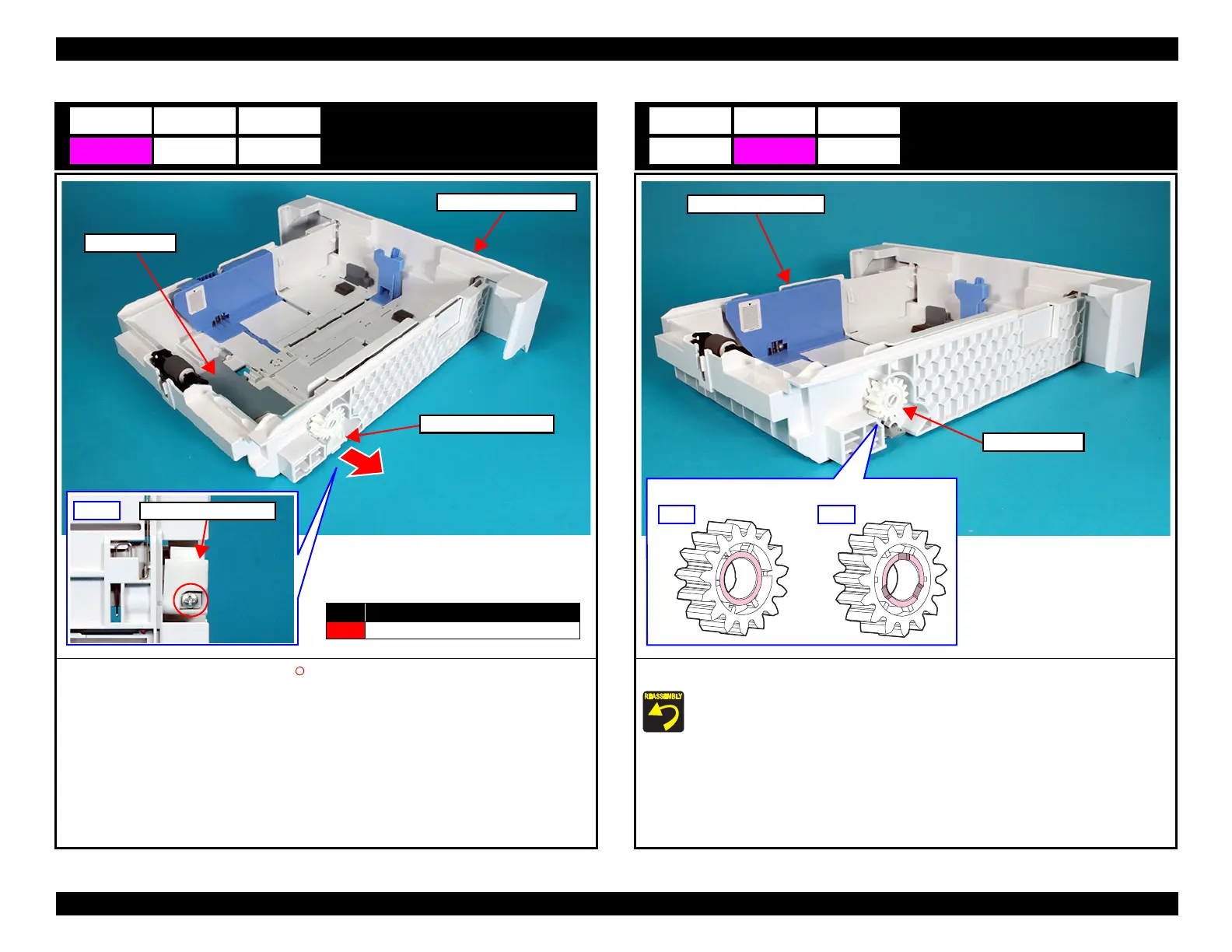

Lift Up Sector Gear 40T
1. At bottom side, remove the screw (S4: ).
2. Pull the Lift Up Sector Gear 40T in the direction of the arrow, then remove the Lift Up
Sector Gear 40T from the OPT Lift Plate.
D3 E3
Lift Up Sector Gear 40T
Paper Cassette 2nd Assy
Bottom
Lift Up Sector Gear 40T
No. Screw Type
S4
C.B.P-TITE-SCREW-3x10-F.ZN-3C
OPT Lift Plate
Lift Up Gear 30T
1. Remove the Lift Up Gear 30T.
Attach the Lift Up Gear 30T by facing the B side shown in the figure above toward
the outside.
E4
Lift Up Gear 30T
Paper Cassette 2nd Assy
A side B side
Lift Up Gear 30T
