EPSON WF-C5790/WF-C5790a/WF-C5710/ET-8700/WF-C5210/WF-C5290/WF-C5290a Revision A
Adjustment Adjustment and Inspection Details 565
Confidential
INITIAL SETTINGS
1. After replacing the Main Board Assy, connect the printer and PC, and then turn the
printer on.
2. Start the Adjustment Program, and select “Initial Settings”.
3. In the Initial Settings menu, make sure a check mark has been placed for the
following items.
 EEPROM data initial check
 Product Serial No. (10 digits)
 MAC Address

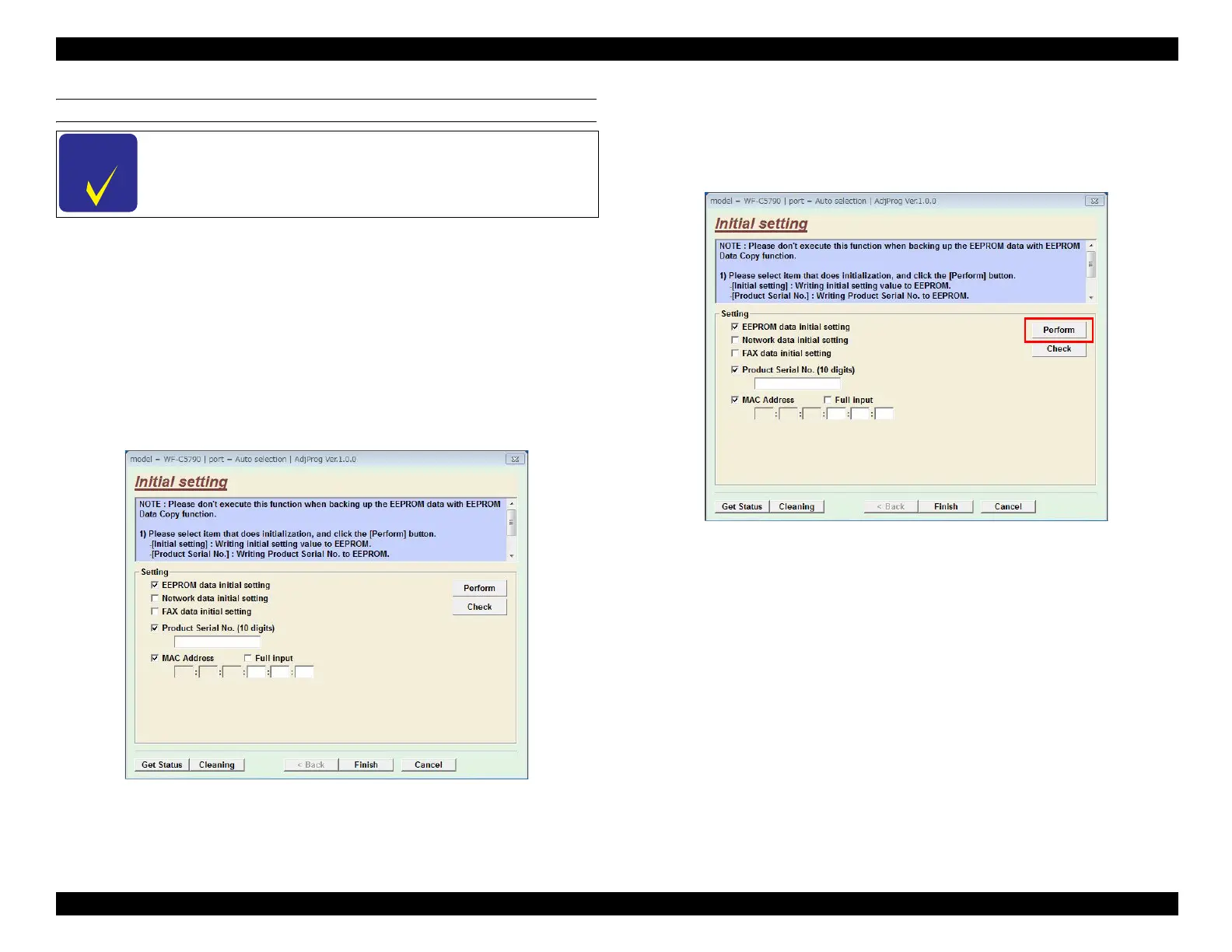

Figure 7-9. Initial settings screen (1)
4. Enter the product serial No. into the Product Serial No. (10 digits) entry field.
5. Enter the MAC address into the MAC Address entry field.
6. Press the Perform button to execute the initialize the Main Board Assy.
Figure 7-10. Initial settings screen (2)
C H E C K
P O I N T
Execute this function only when the EEPROM backup fails (backup
cannot be performed).
** ** **
**********
