Maintenance/inspection Lubrication 589
Confidential

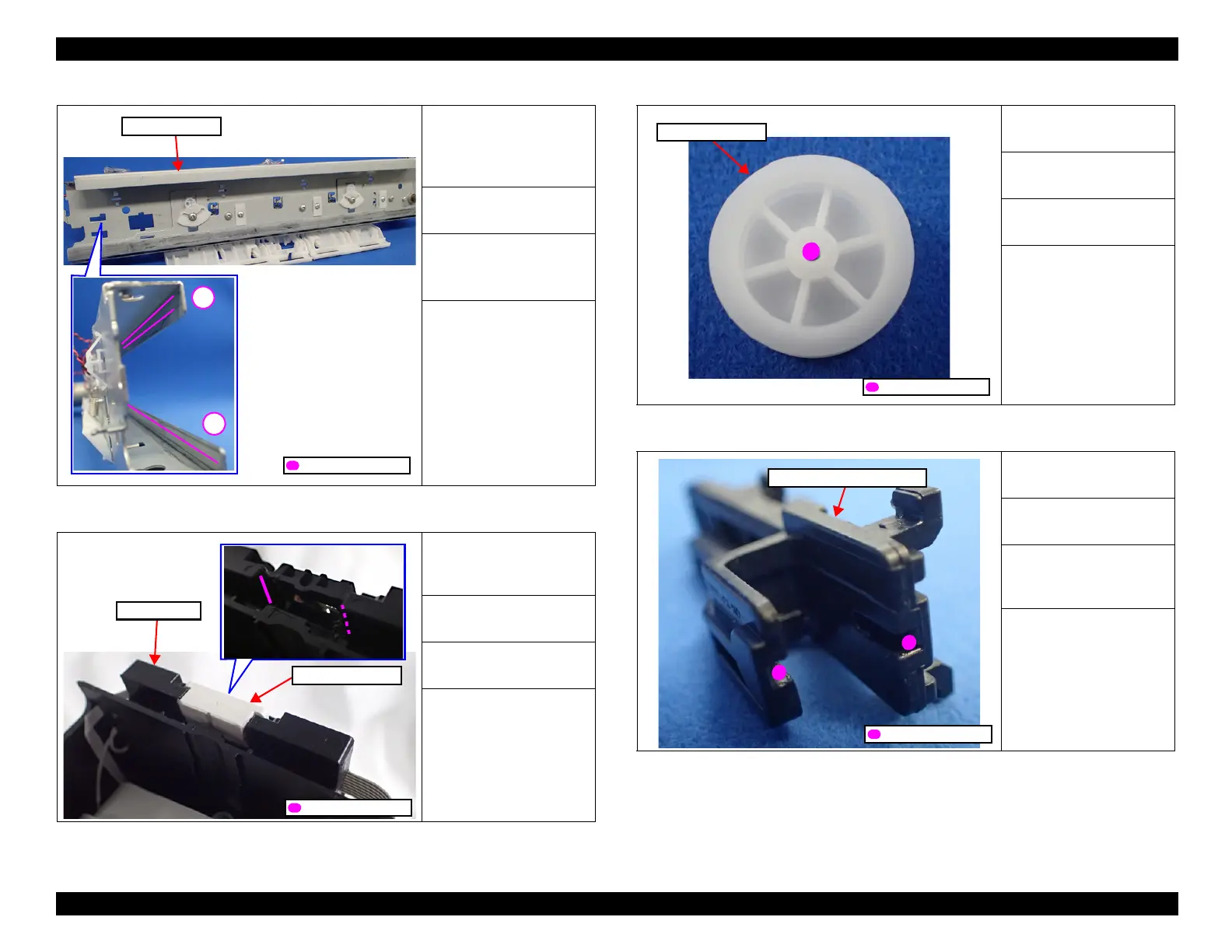

Figure 8-12. Lubrication of contact point with CR Unit (2)
Figure 8-13. Lubrication of CR Unit
Figure 8-14. Lubrication of CR Driven Pulley
Figure 8-15. Lubrication of CR Driven Pulley Holder(1)
<Lubrication Point>
Contact point with CR Unit
on Main Frame and on CR
Guide Frame (Back side)
<Type>
G-97
<Application Amount>
1.
0.7g (2 line × 300 mm)
2. 0.3g (1 line × 300 mm)
<Remarks>

Apply with injector. After
application, spread by
moving CR Unit to the
right and to the left (from
0-digit side to 80-digit
side) three times slowly.
 If clumps of grease are
seen on both sides of the
frame, remove them.
<Lubrication Point>
Contact point between CR
Slider Sub and CR Unit
<Type>
G-97
<Application Amount>
1
mm × 3 mm (two points)
<Remarks>
Apply with injector.
Main Frame
1
2
Application point
CR Unit
CR Slider Sub
Application point
<Lubrication Point>
CR Driven Pulley
<Type>
G-71
<Application Amount>
Appropriate amount
<Remarks>
Apply with injector.
Take care that grease does
not adhere to the rotating
area.
<Lubrication Point>
CR Driven Pulley Holder
<Type>
G-71
<Application Amount>
Appropriate amount
(two points)
<Remarks>
Apply with injector.
CR Driven Pulley
Application point
CR Driven Pulley Holder
Application point
