Maintenance/inspection Lubrication 590
Confidential

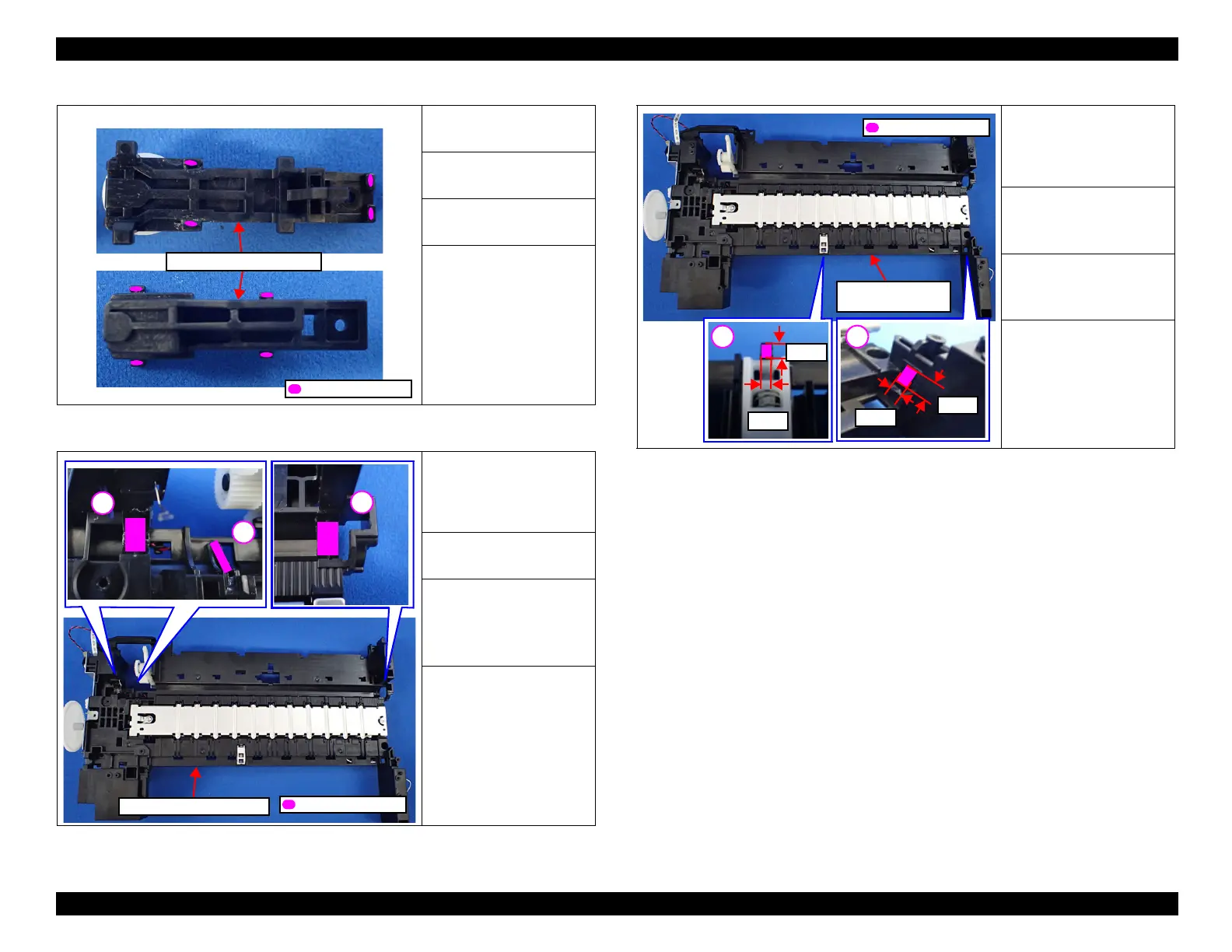

Figure 8-16. Lubrication of CR Driven Pulley Holder (2)
Figure 8-17. Lubrication of Paper Guide Front Assy (1)
Figure 8-18. Lubrication of Paper Guide Front Assy (2)
<Lubrication Point>
CR Driven Pulley Holder
<Type>
G-71
<Application Amount>
1 mm × 1 mm (8 points)
<Remarks>
Apply with injector.
<Lubrication Point>
Contact point between
Paper Guide Front Assy
and PF Roller
<Type>
G-97
<Application Amount>
1. 3 mm × 15 mm
2. 1 mm × 15 mm
3. 3 mm × 15 mm
<Remarks>
 Apply with injector.
 Rub off excess grease.
CR Driven Pulley Holder
Application point
Paper Guide Front Assy
1
2
3
Application point
<Lubrication Point>
Contact point between
Paper Guide Front Assy
and EJ Roller
<Type>
1. G-96
2. G-97
<Application Amount>
1. Appropriate amount
2. 2
mm × 5 mm
<Remarks>
1. Apply with Flux
Dispenser.
2. Apply with injector.
 Rub off excess grease.
Paper Guide Front
Assy
4 mm
3 mm
1
5 mm
2 mm
2
Application point
