This chapter contains all the information concerning a first use of the tracer-centerer-blocker:
• description of the tracer-centerer-blocker (F p.10)
• connection to an edger (F p.11)
• using the device (F p.12)

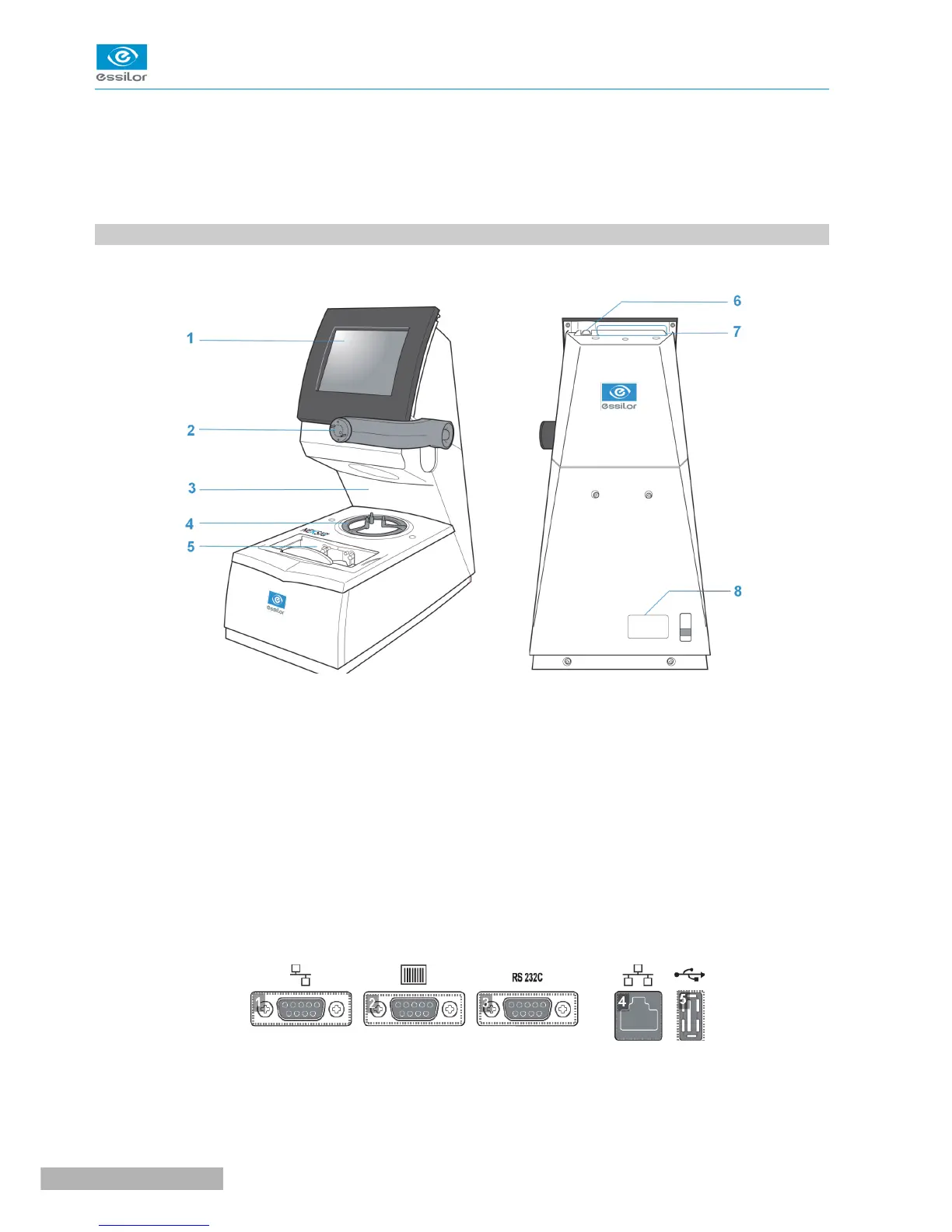

1. DESCRIPTIVE DIAGRAMS
This section contains the descriptions and list of accessories of the tracer-centerer-blocker:
1. Screen
2. Blocking arm
3. Centering chamber
4. Tripod
5. Tracing table
6. ON/OFF button
7. Connectors
8. Manufacturer plate
1. RS232 (edger) port
2. Barcode reader port
