2. CONFIGURING A DRILLING POINT
This section describes the procedures for the creation and positioning of a drilling point:
• Creating a drilling point (F p.78)
• Delete one drilling point (F p.79)
• Dimensioning a drilling point (F p.79)
• Adjusting the position of a drilling point (F p.80)
The positions of the various drilling points must be set before the centering of the lens.
Both lenses are configured simultaneously.
On tracers not equipped with the optical tracing option to position a drilling on a shape traced following a
mechanical tracing of a pattern or a demo lens:

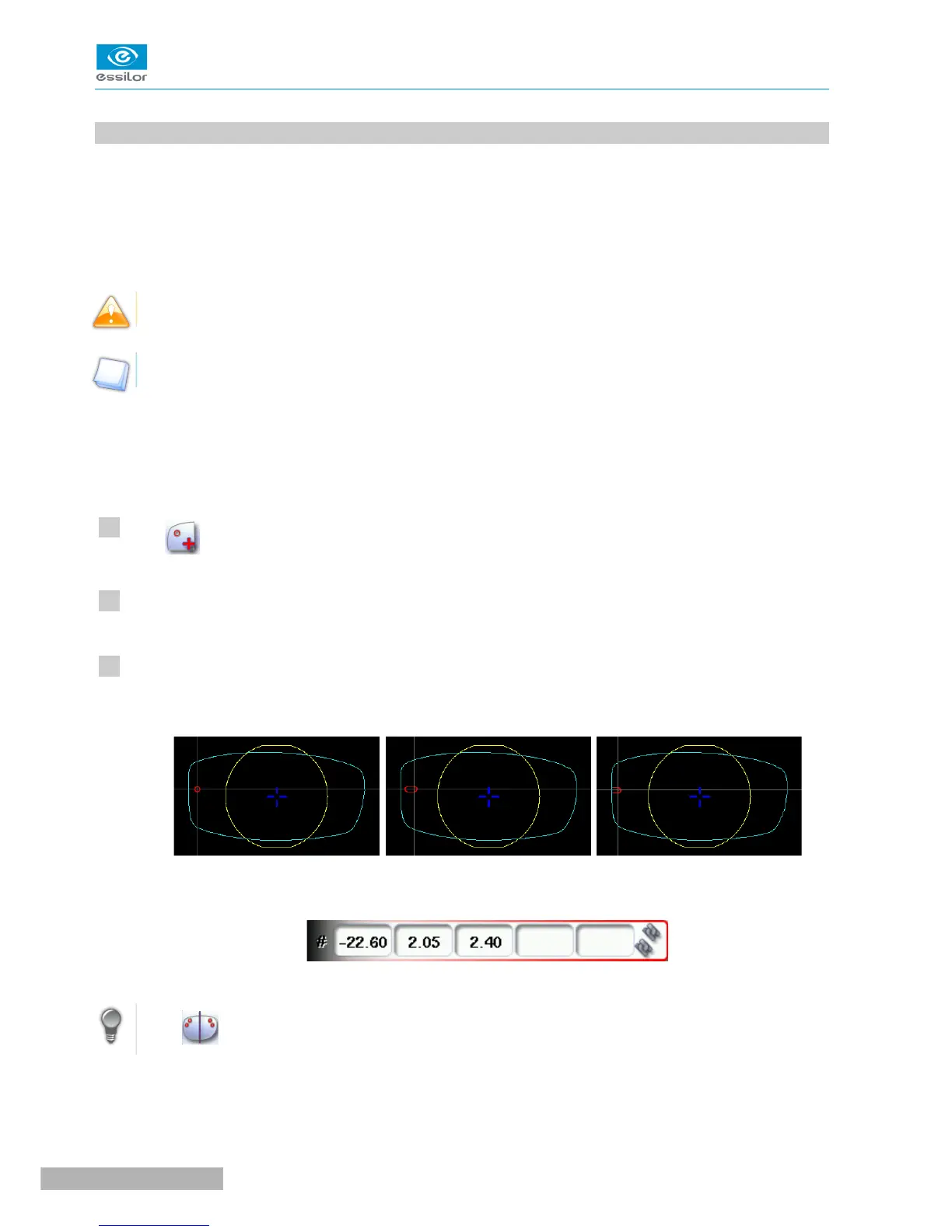

a. Creating a drilling point
Press to create a new drilling point.
Select the type of drilling (drill-hole, slot or notch).
Press on the shape at the spot where you want to position the drilling point.
The drilling point created is displayed in red in the shape:
The drilling coordinates are displayed on the right of the work screen;
Press to copy the drilling points from the nasal area to the temporal area and vice-versa.
On the tracer-centerer-blocker, you can configure up to 6 drilling points per side (nasal and temporal) of a
shape.
