Tracing table

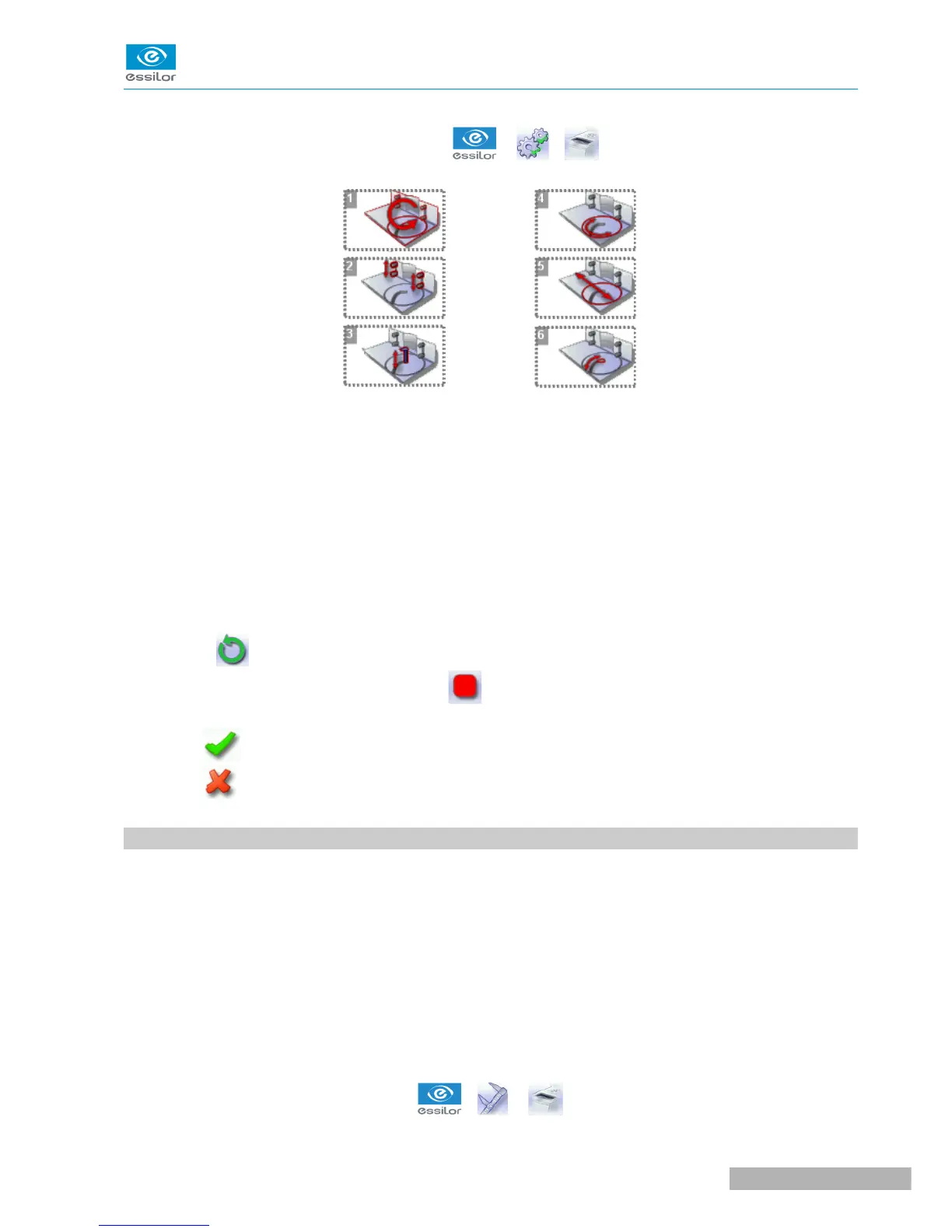

To test the operation of the tracing table, select > > from your work screen.
1. Tracing table autotests
2. Clamps
3. Vertical movement of the feeler
4. Rotation of tracing table core
5. Displacement of tracing table core
6. Feeler movement
1. Select the autotest to be carried out.
2. Press to start the test cycle.
To interrupt the cycle at any time, press .
> The result is displayed on the right of the icon of the autotest carried out:
◦ The equipment is operational.
◦ A malfunction has been detected, a description is displayed in the message box on the right.
2. CHECK AND CALIBRATE (REMOTE LENS EDGING OPTION)
This section describes the procedures to follow if you note mounting problems that may be due to tracing or
centering operations.
• Check the tracing table then calibrate it if required (F p.105)
• Check the tracer-centerer-blocker then calibrate it if necessary (F p.108)
• Calibrate the touch screen (F p.110)
a. Check and calibrate the tracing table (option)
If you encounter mounting problems, you can check the calibration of the tracing table.
From the work screen of your tracer, select > >
