SmartLink Stations Enabled 65
If the sequencer is activated from the facepanel of a SmartPack:
That SmartPack will act as the host product and send its host messages to the other SmartLink enabled
products in the system. Each SmartLink enabled product in the system will activate the sequence as
sent from the host product with steps and timing synchronized. If one product in the system does not
have specific step recorded and the host product sends the message to play that step, the receiving
product will simply ignore that command and pick up with the next recorded event.
Wall Stations
Two wall station types are available for use on the SmartLink network, a 5 button and a 10-button.
Wall stations provide remote access to the 128 built-in presets in CEM+ and 32 built-in presets and
sequencer in the SmartPack.
A LinkPower supply must be installed into one host product and is required to operate up to four wall
stations per system. Reference the
SmartLink Power Board Kit Setup Guide
for installation instructions
in a Sensor+ rack.
Note:
Wall station use with the SmartPack Portable dimmer pack requires additional
hardware that is separate from the pack itself. Contact ETC for assistance.
Note:
A SmartLink network is limited to four SmartLink wall stations and up to four
SmartLink enabled products in a system. A SmartLink data run is limited to 1500 feet
and is FTT-10A topology-free and polarity-independent.
12
10
11
12
10A. 120V
DMX
Service by authorised persons only.
This equipment must be grounded
Isolate power before removing covers.
RISK OF ELECTRICAL SHOCK
DANGER!
D I M M I N G S Y S T E M
D I M M I N G S Y S T E M
Preset 1
Preset 2
Preset 3
Preset 4
Preset 5
Preset 6
Preset 7
Preset 8
Preset 9
Preset 10
Preset 1
Preset 2
Preset 3
Preset 4
Preset 5
Preset 6
Preset 7
Preset 8
Preset 9
Preset 10
Preset 1
Preset 2
Preset 3
Preset 4
Preset 5
Preset 6
Preset 7
Preset 8
Preset 9
Preset 10
Preset 1
Preset 2
Preset 3
Preset 4
Preset 5
Preset 6
Preset 7
Preset 8
Preset 9
Preset 10

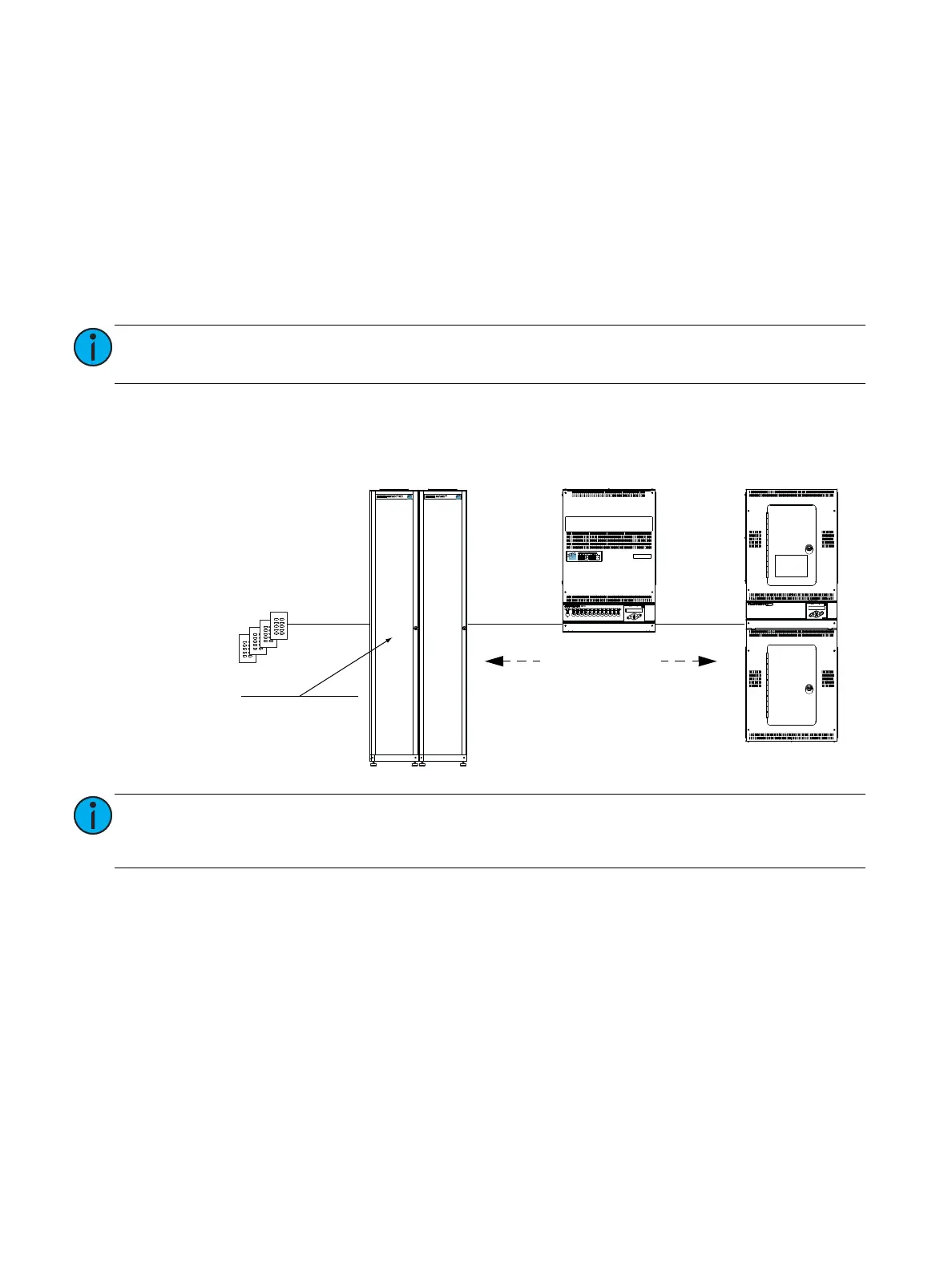

Sensor+ Racks SmartPack SmartSwitch 48
