ETC sensor+ CEM+ - Station Options

66 Sensor+ CEM+ User/Config Manual
Station Options
Control station electronics mount directly into a flush mount, single gang, industry standard back box.
Station faceplates are constructed of ABS plastic and use no visible means of attachment. All stations
are available in white, ivory, gray or black faceplates and buttons.
A sampling of the standard legends available include:
Custom options available, contact ETC quotations department for assistance.
Station Personality Settings
The control electronics (back side) include a set of eight dip switches. Each setting activates standard
functionality or personalities from within the station including the starting preset number and
sequence looping.

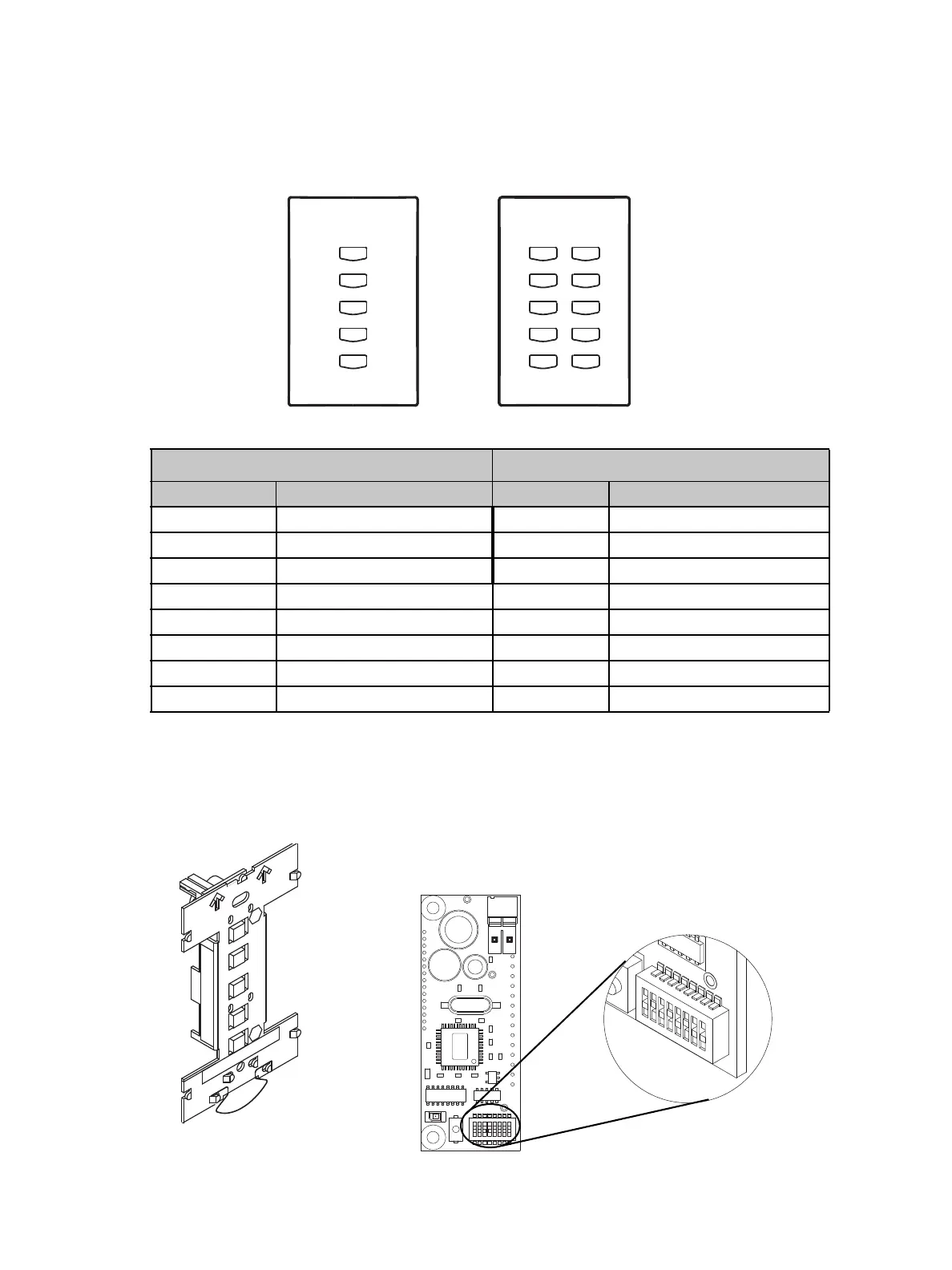

5 - Button Station 10 - Button Station
Presets Only Presets and Sequence Presets Only Presets and Sequence
Preset 1-5 Preset 1-4 and Sequence Preset 1-10 Preset 1-9 and Sequence
Preset 6-10 Preset 5-8 and Sequence Preset 11-20 Preset 10-18 and Sequence
Preset 11-15 Preset 9-12 and Sequence Preset 21-30 Preset 19-27 and Sequence
Preset16-20 Preset 13-16 and Sequence Preset 31-40 Preset 28-36 and Sequence
Preset 21-25 Preset 17-20 and Sequence Preset 41-50 Preset 37-45 and Sequence
Preset 26-30 Preset 21-24 and Sequence Preset 51-60 Preset 46-54 and Sequence
Preset 31-35 Preset 25-28 and Sequence Preset 61-70 Preset 55-63 and Sequence
Preset 36-40 Preset 29-32 and Sequence Preset 71-80 Preset 64-72 and Sequence
Preset 1
Preset 2
Preset 3
Preset 4
Preset 5
Preset 6
Preset 7
Preset 8
Preset 9
Preset 10
Preset 1
Preset 2
Preset 3
Preset 4
Sequence
5 Button 10 Button
UP
12345678
OFF
12345678
OFF
DHS-8
front side electronics
back side electronics
set of 8 dip
switches
