Modified linear curve
A modified linear curve reduces the voltage change at low control levels for better performance in low-
wattage fixtures.
Square law curve
At low control levels, much of a traditional incandescent fixture’s light output is in the invisible infrared
spectrum. This results in poor visible response to low control levels. A square law curve applies a
multiple derived from the square root of the control level (with full output equal to 1.00) to increase
voltage response at low control levels to compensate for the infrared loss.

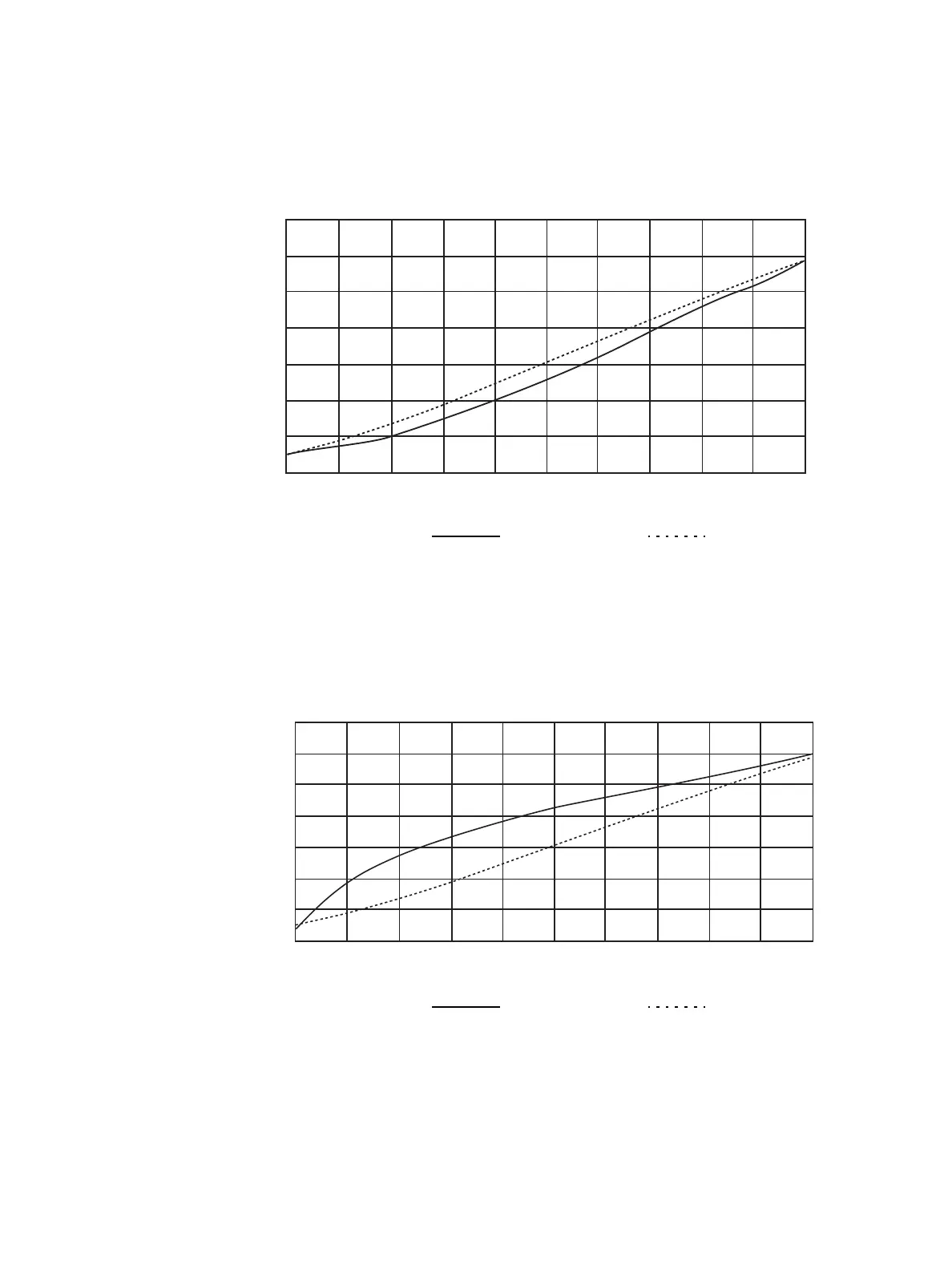

100
120
140
80
60
40
20
0
1 102030405060708090100
Output Voltage (RMS)
Console percentage setting
Linear Curve
Modified linear curve Linear curve
(for reference)
100
120
140
80
60
40
20
0
1 102030405060708090100
Output Voltage (RMS)
Console percentage setting
Square Law Curve
Square law curve Linear curve
(for reference)
