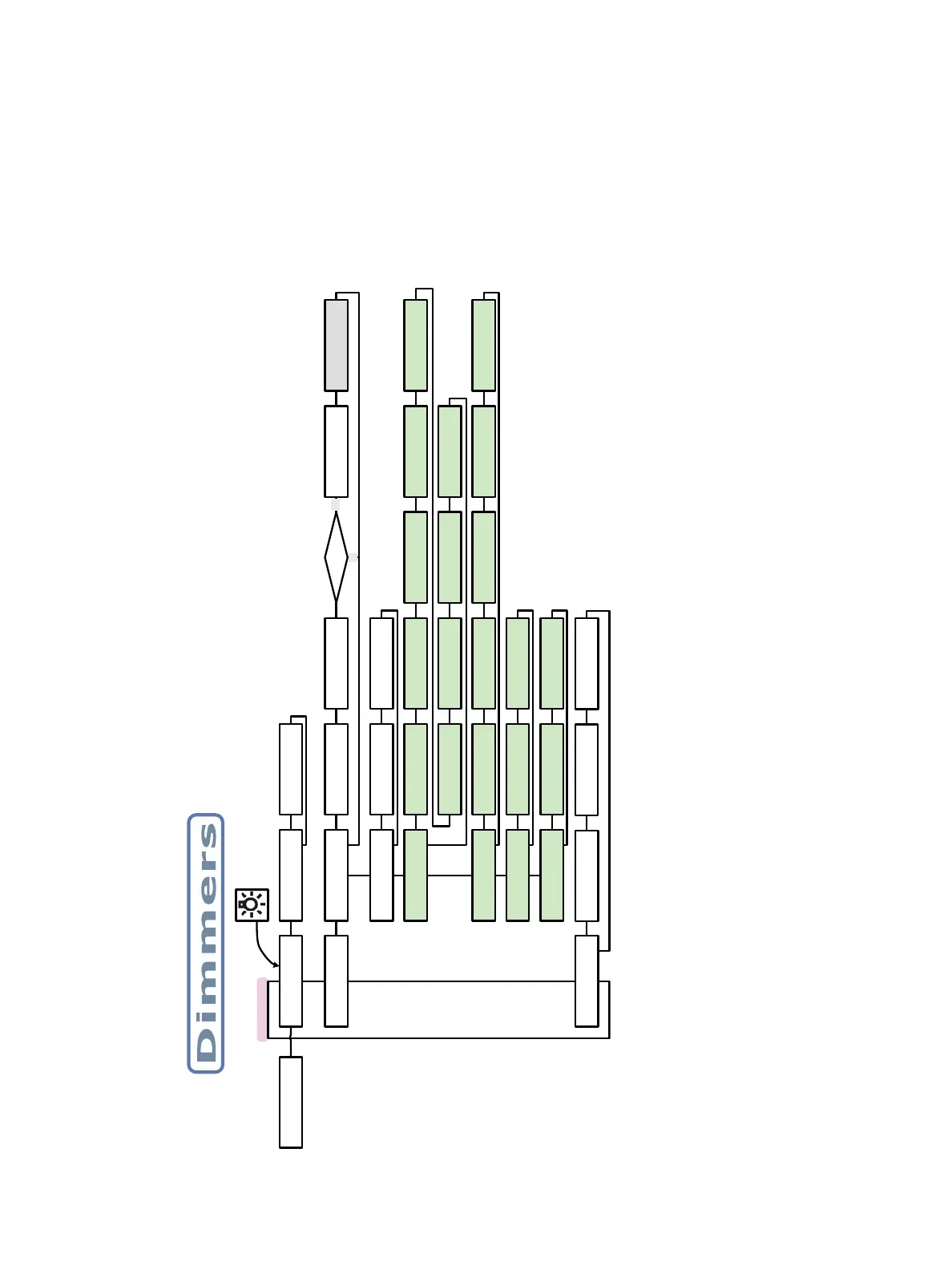

ETC sensor+ CEM+ - Appendix G Sensor+ Connect Site Map; Sensor+ Connect Site Map

CEM+ LCD Menu 79
Dimmers Menu
to dimmer check
Rack: xx/xx OK
[Dimmers]
Set/Release Levels
[xxxxx] to [yyyyy] [A]
Set Firing Mode
Mode [Normal]
Set/Release Levels
Level [00-FF]
Dynamic Preheat
[2] Seconds
Inrush Protection
[Off]
Setup Dimmer
[Set Dimmer Name]
Set Dimmer Name
Select Dimmer [xxxxx]
Set Dimmer Name
[namenamenamena]
Setup Dimmer
[Assign Dim To Room]
Select Room
Room [_]
Setup Dimmer
[Advanced Features]
Advanced Features
[Off]
Report Load Errors
[Off]
AF Sensitivity[ 5]
1 is most Sensitive
AF Reaction Time
[ 10] Sec
Dimmer
[Dimmer Check]
Dimmer Check
+ or – Dimmer[xxxx]
Dimmer Check
Set level [100]
Dimmer Check
First Dimmer [xxxxx]
Dimmer
[Setup Dimmer]
Setup Dimmer
[Set Firing Mode]
Setup Dimmer from
[xxxxx] to [xxxxx]
Setup Dimmer from
[xxxxx] to [xxxxx]
Setup Dimmer from
[xxxxx] to [xxxxx]
Scale Load
[35] % of dimmer
Patch B side start
[DMXA] – [xxxxx]
Yes
no
Dimmer
[Set/Release Levels]
Updating B side
>DMXA< xxxxx - yyyyy
Set Threshold
[ ] %
Min Scale Voltage
Voltage [xxxx]
Max Scale Voltage
Voltage [xxxx]
Setup Dimmer
[Scale & Preheat]
DC Output Prevent
[Off]
Voltage Regulation
[On]
Setup Dimmer
[Set Curve]
Setup Dimmer from
[xxxxx] to [xxxxx]
No
Set Curve
[mod sq]
If DD mode
Setup Dimmer from
[xxxxx] to [xxxxx]
