Dimmer Curves
Dimmer curves determine how dimmers set voltage output in response to control signal input. To
accommodate designer preferences and load response variations, Sensor offers five dimmer curve
choices, which can be applied to individual dimmers.
Linear curve
The linear curve matches the control input percentage to Root Mean Squared (RMS) voltage output.
Each percent increase in control level increases dimmer voltage output by the same amount
.
100
120
140
80
60
40
20
0
1 102030405060708090100

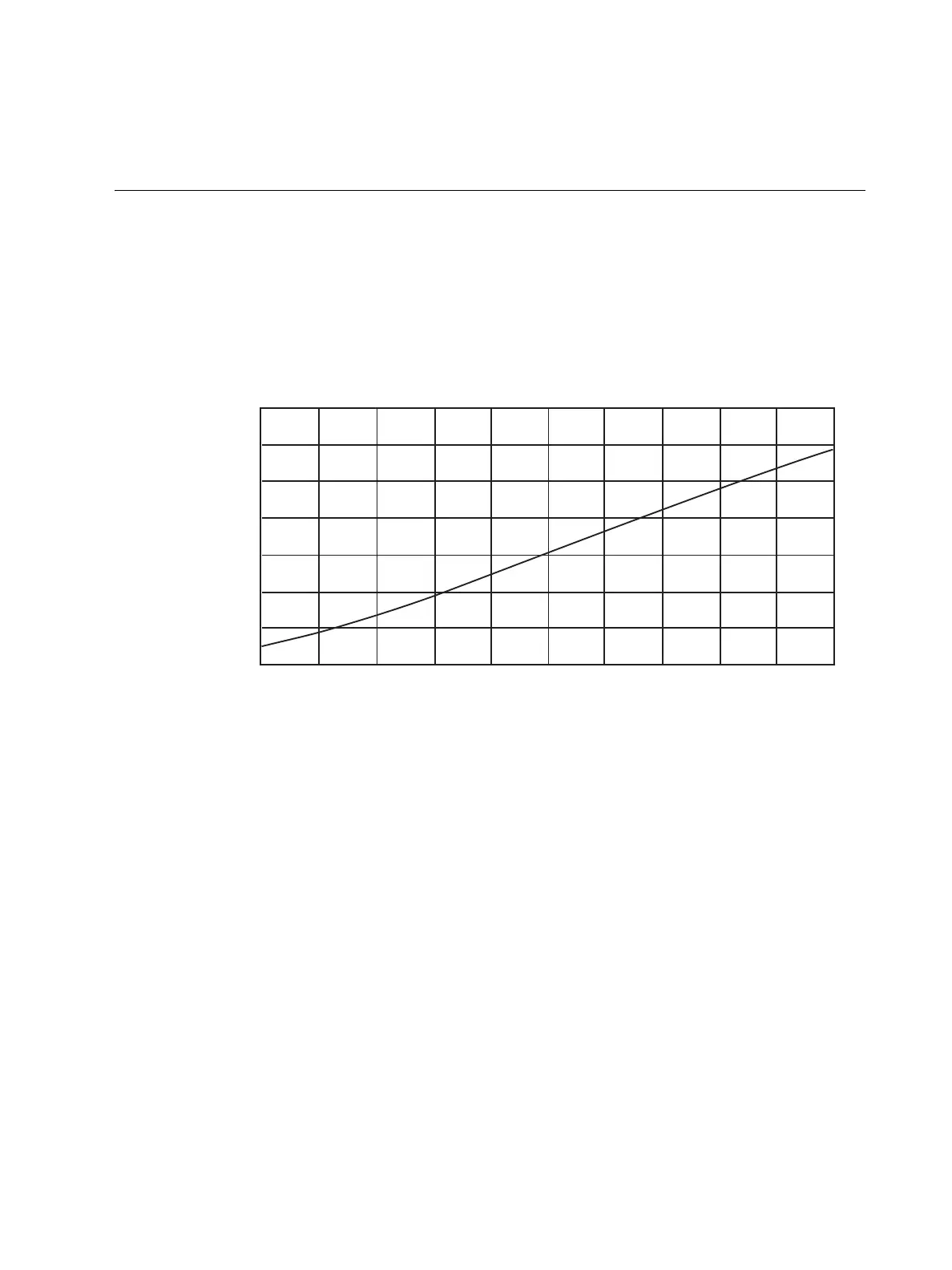

Linear Curve
Output Voltage (RMS)
Console percentage setting
